Thermal Store Ceramics Honeycomb Heater
You are here: Home » Products » Accumulated/Storage Filter/Substrate » Thermal Store Ceramics Honeycomb Heater

Thermal Store Ceramics Honeycomb Heater

Quantity:
  • Shanghai, China

  • 100, 000pieces/Month

  • T/T, Paypal

  • HCH

  • Regenerative Heat Exchanger

  • Ceramic

  • Heater

  • Plate Heat Exchanger

  • DXY

  • Wooden Box and Pallet or According to Your Demand

  • China

  • 6909190000

  • 150*150*100mm, 100*100*150mm etc

  • Round, Square, Hexagonal, Triangular

  • 25/40/43/50/60holes

  • Cordierite/Corundum Mullte/Mullite/Silicon Oxide

  • Rto

  • 1320-1700

Product Description

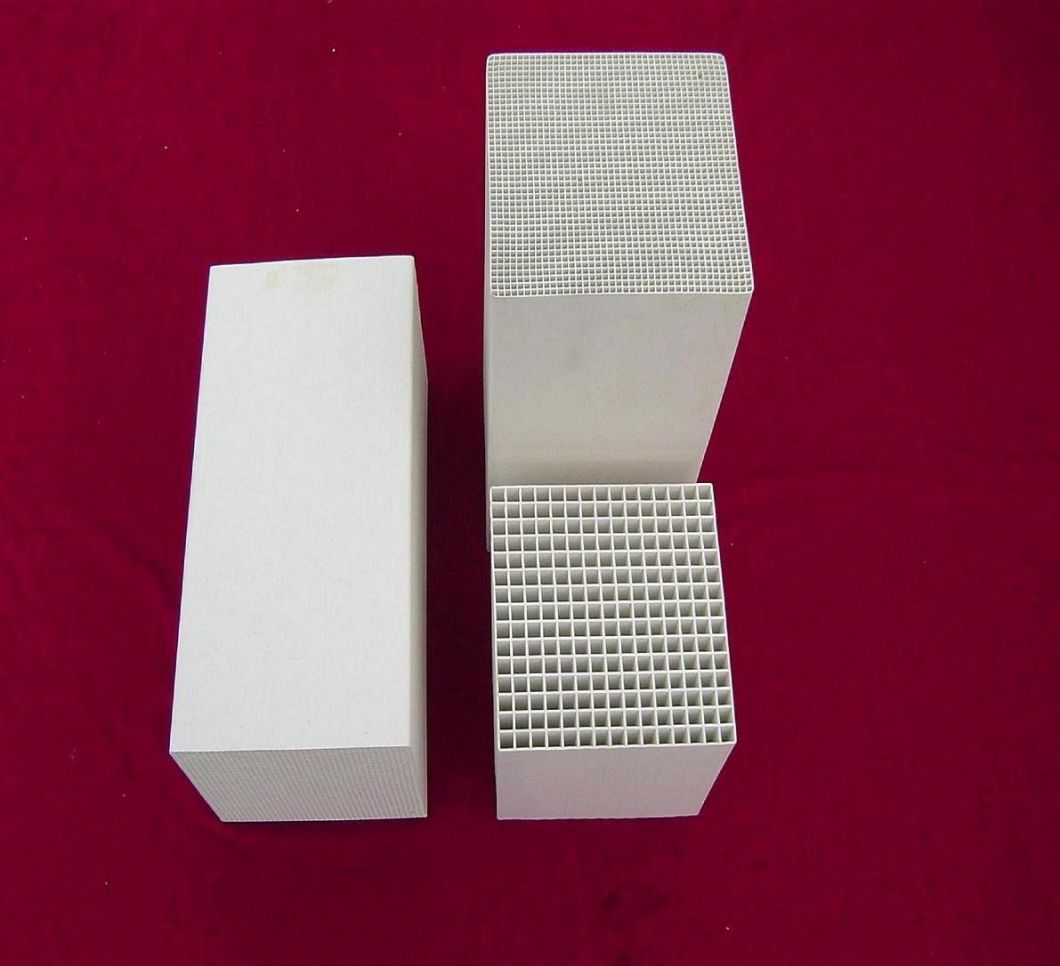

Honeycomb ceramic is new developed ceramic part. Because of it's features of corrosion resistances, large specific surface area, small heat resistance, good thermal conductivity and excellent thermal-shock resistance, fast heat exchanging and energy saving. The honeycomb ceramic as the heat exchange media is the key part for heat storing HTAC ( High Temperature Air Combustion) technology. It is the best choice for RTO, heat exchanger and other environmental protection and energy saving products. We can offer cellular ceramic regeneratorsin more than ten kinds of materials. Due to the unique features of low thermal expansion coefficient, large geometric surface, good thermal stability, and corrosion resistant, they are typically used by refineries, construction plants and chemical processing plants in high temperature heat exchange system and industrial waste gas treatment system.

Thermal Store Ceramics Honeycomb Heater

Applications
Iron, garbage incinerator and waste gas treatment thermal equipment, chemical plants, smelters, industrial boilers, gas turbines, power plants, power engineering and heating equipment, ethylene cracking furnace etc.

Advantages:
*Low thermal expansion coefficient
*High porosity of hole on the wall, good liquidity and uniform distribution
*High temperature resistance, chemical corrosion resistance, thermal shock resistance and thermal shock resistance is strong
*The pressure drop is small
*Cold start performance is good, low light-off temperature, high conversion efficiency
Item Unit Porous Cordierite Dense Cordierite Mullite Heat accumulator Mullite corundum heat
Specific weight g/cm ³ 1.75-1.9 2.4-2.48 2.1-2.5 2.5-2.6
Lo-efficient of heated expanding
(20-1000 ° C )
1-2*10 -6/ ° C 2.5-5.0 1.3-3.5 5.5-6.5 5.5-6.0
Specific heat J/Kg.K 700-800 800-1200 850-1050 800-900
Thermal Conductivity W/mk 1.2-1.5 1.5-2.5 1.5-2.0 1.5-2.5
Thermal shock K Min 300 Min 250 Min 350 Min 350
Soften temperature ° C 1300 1300 1500 1600
