Shanghai, China
100, 000pieces/Month
L/C, T/T, Western Union
HCH
1320-1700
Regenerative Heat Exchanger
Ceramic
Heater
Plate Heat Exchanger
DXY
Wooden Box and Pallet or According to Your Demand
150x150x300mm, 100x100x125mm, dia125x153mm
China
6909190000
ISO
Cordierite/Corundum Mullte/Mullite/Silicon Oxide
25holes, 40holes, 43holes, 50holes, 60holes
Rto
Round, Square, Hexagonal, Triangular
100*100*100, 150*150*150, 150*150*300
Product Description

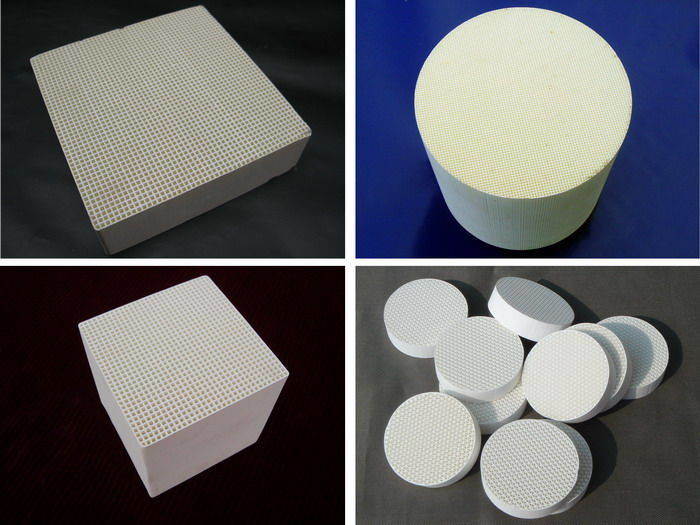

Ceramic Honeycomb Heater Description:
Honeycomb ceramic is composed of countless equal holes. The structure of it is like honeycomb shape and it is a kind of new ceramic products. The biggest hole number of it has reached 20~40 per square centimeter, the density is 4~6 grams per cubic centimeter and the water absorption rate is above 20%.

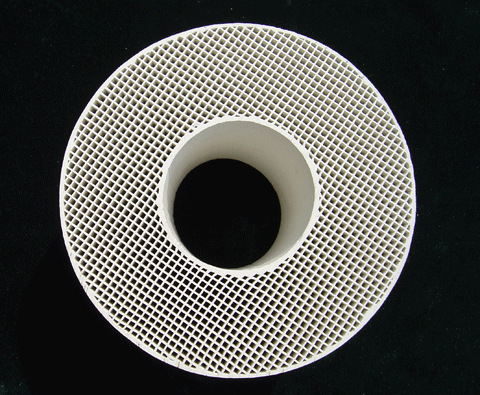

Porous Cordierite Honeycomb Monolith

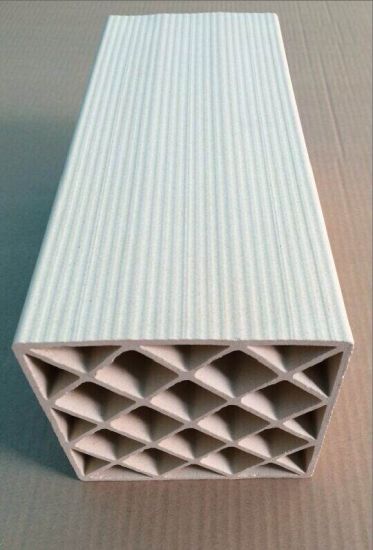

Ceramic honeycomb used for RTO application
Cordierite is a magnesium alumina silicate material, which has very low linear expansion, low coefficient of thermal expansion and excellent resistance to thermal shock. Cordierite also offers an excellent range of mechanical strength, porosity criteria, and excels in cost-effective extruded and dry-pressed forms.
Cordierite Honeycomb Monoliths are divided into two types: porous type and compact type.
Application:
Widely used in chemical industry, electric power industry, metallurgy industry, petroleum industry,electronics industry,machinery industry,etc. The development prospect is considerable.
Features:
1.High strength.
2.High temperature resistance.
3.Corrosion resistance.
4.Wear resistance.
5.Good thermal conductivity.
6.Environmentally friendly.
| Spec. | Quantity of channels | Wall thickness (mm) | Surface area (m2/m3) | Free volume (%) | Average weight (min.) (kg/m3) |
| 150*150*300 | 60*60 | 0.5 | 1315 | 70 | 680 |
| 150*150*300 | 50*50 | 0.7 | 1050 | 58 | 680 |
| 150*150*300 | 40*40 | 0.7 | 883 | 65 | 518 |
| 150*150*300 | 25*25 | 1.0 | 573 | 67 | 502 |
| Data&Item | Hight Frequency Ceramic | 75% Ceramic | 95% Ceramic | 99% Ceramic | Titanium Oxide | Zirconia | Mullite | Comment |
| Content | Talc 85% | alumina≥75% | alumina≥95% | alumina≥99% | Titanium Oxide≥90% | Zirconia≥90% | 3ALz032si02 | |
| Fring temperature(Degree C) | 1350±20 | 1400-1450 | 1650-1680 | 1780-1800 | 1450±20 | 1550-1600 | 1260-1540 | |
| Proportion(g/cm) | 2.8 | 3.2 | ≥3.6 | ≥3.8 | ≥3.7 | >6 | 3.25 | |
| Dielectric Strength(kv/mm) | 15 | 13 | 15 | 15 | 15 | Volume density | ||
| Water absorption(%) | <0.02 | <0.015 | <0.01 | <0.01 | <0.01 | <0.01 | <0.01 | |
| Compressive Strength | 560 | 2200 | 2400 | 3700 | 7200 | 5000 | ||
| Hardness(HRA) | ≥75 | ≥75 | ≥82 | ≥88 | ≥80 | ≥85 | 65-70 | |
| Volume Resistance(cm) | ≥1012 | >1012 | >1012 | >1012 | <1012 | >1012 | ≥1012 | 25Degree C |
| Bending Strength(MPA) | 126 | 280 | 320 | 400 | 150 | 700 | 180 | |
| Thermal Expansion(*10) | 6-7.5 | 6 | 6.2-8.5 | 6.8-8 | 9-10 | 4-4.4 | 25Degree C-700Degree C | |
| Permittivity(MHZ) | 6 | 5.5 | 8.5 | 9.5 | 7 | |||
| Roughness(Ra) | ≤0.8 | ≤0.8 | <0.1 | |||||
| Mirror Polish | <0.3 | ≤0.1 | ≤0.05 | ≤0.03 |
