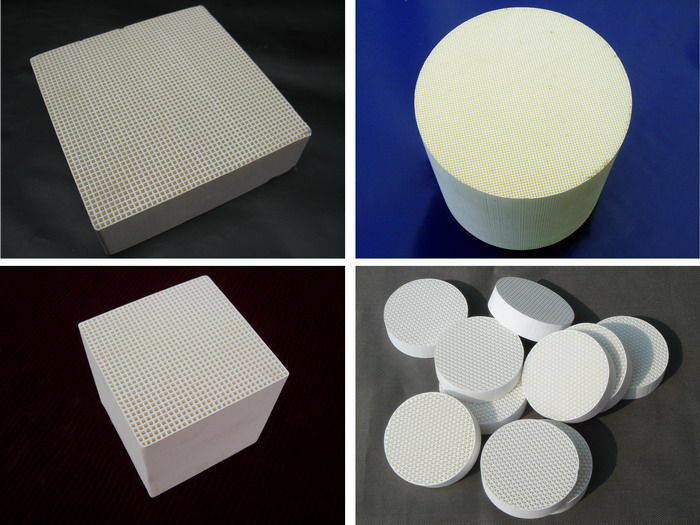

Cordierite Mullite Alumina Honeycomb Ceramic Heater Regenerator

You are here: Home » Products » Accumulated/Storage Filter/Substrate » Cordierite Mullite Alumina Honeycomb Ceramic Heater Regenerator

Cordierite Mullite Alumina Honeycomb Ceramic Heater Regenerator

Quantity:



Inquire Add to Basket

Port:
Shanghai, China
Production Capacity:
100, 000pieces/Month
Payment Terms:
T/T, Paypal

Model NO.:
HCH
Principle:
Regenerative Heat Exchanger
Structure Material:
Ceramic
Application:
Heater
Heat Transfer Surface:
Plate Heat Exchanger
Trademark:
DXY
Transport Package:
Wooden Box and Pallet or According to Your Demand
Origin:
China
HS Code:
6909190000
Usage::
Rto
Materials::
Cordierite/Corundum Mullte/Mullite/Silicon Oxide
Size::
150*150*100mm, 100*100*150mm etc
Holes::
25holes, 40holes, 43holes, 50holes, 60holes
Hole Shape::
Round, Square, Hexagonal, Triangular
Max.Working Tem. (Celsius Degree)::
1320-1700

Product Description

Product Description

Honeycomb ceramic regenerators enhance efficiency, save energy, increase output and improve quality, an important and effective measure when dealing with energy and the environment. They are applied on thermal equipment for energy saving within industry. The pores of the Honeycomb ceramic regenerators are square and hexagonal, and the channels of pores are straight and parallel to each other. This structure reduces the resistance of passing air and enhances the heat exchange efficiency of every channel.
corundum mullte

Functions:
>Reduce the thermalloss of exhaust gas, and improve the efficiency of fuel to save energys.
>Enhance the burning temperature based on theory, improve the atmospheric burning, meet the high temperature of thermal equipment enlage low calorific value fuel, especially the application range of the blast furnaces, improve the efficiency of calorific value fuel and reduce the emissons from low calorific value coal gas.
>Improve the terms of heat exchanges in hearths, increase the output of equipment, enhance the quality of products and cut down on reinvesting equipment.
>Reduce the exhaust emission of thermal equipment, alleviate the air pollution and improve the environment.

Characters:
The characteristics of the honeycomb ceramic regenerator are as follow: they have low heat expansion, high specific heat capacity, high specific surface area, low pressure drop, low thermal resistance, good thermal conductivity, thermal shock resistance and much more. So, in metallurgy and chemical industries, it is used as HTAC, while we combine recycling the heat of the emissions, high efficient combustion with reducing NOx. It becomes a true energy saver and decreases NOx.

Cordierite Mullite Alumina Honeycomb Ceramic Heater Regenerator

Materials: cordierite, mullite, silica, corundum, mullite and others
Specifications: 100*100*100, 100*150*150, 150*150*150, 150*150*300mm and others
Holecount: 25*25, 40*40*, 43*43, 50*50, 60*60 and others
Holeshapes: square, rectangle, rotundity, triangle, hexagon and others.
