Ceramic Honeycomb Plate Honeycomb Ceramic Heater for Heat Exchange
You are here: Home » Products » Accumulated/Storage Filter/Substrate » Ceramic Honeycomb Plate Honeycomb Ceramic Heater for Heat Exchange

Ceramic Honeycomb Plate Honeycomb Ceramic Heater for Heat Exchange

Quantity:
sharethis sharing button
  • Shanghai, China

  • 50cbm/Month

  • L/C, T/T, Western Union

  • HCH

  • Ceramic Heater

  • Cooling Tower

  • Double Tube Sheet Heat Exchanger

  • Plate Heat Exchanger

  • DXY

  • Wooden Box/Carton Box with Pallet

  • All size

  • China

  • 690919000

  • 100*100*100, 150*150*150, 150*150*300

  • Cordierite/Corundum Mullte/Mullite/Silicon Oxide

  • 25holes, 40holes, 43holes, 50holes, 60holes

  • Round, Square, Hexagonal, Triangle, etc

  • Regenerative Heat Exchanger

  • Ceramic

Product Description

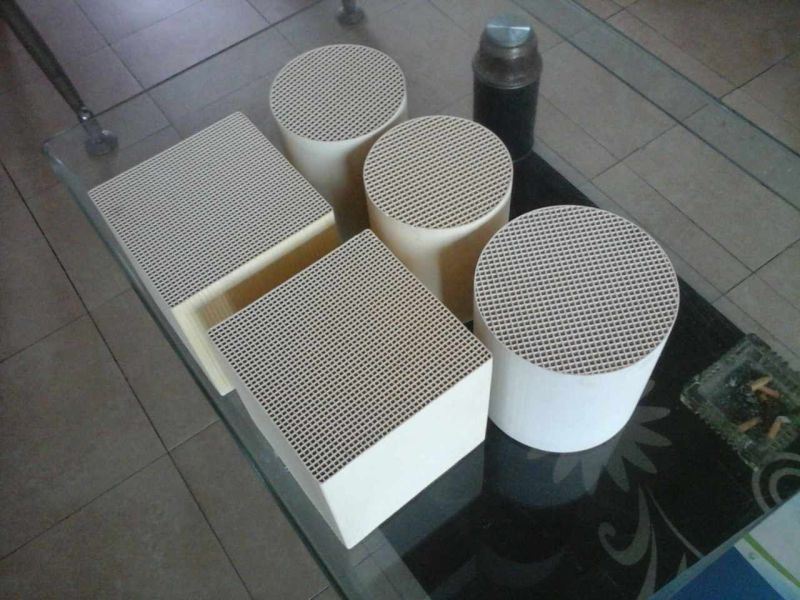

Ceramic Honeycomb Plate Honeycomb Ceramic Heater for Heat Exchange
Ceramic Honeycomb Plate Honeycomb Ceramic Heater for Heat Exchange Ceramic Honeycomb Plate Honeycomb Ceramic Heater for Heat Exchange
Corundum-based Honeycomb Ceramic Heat Accumulation Substance
It's features of corrosion resistances, large specific surface area, small heat
Resistance, good thermal conductivity and excellent thermal-shock resistance, fast heat exchanging and energy saving. It's widely used in many fields.
The honeycomb ceramic as the heat exchange media is the key part for heat storing HTAC
( High Temperature Air Combustion) technology. It is the best choice for RTO, heat exchanger
And other environmental protection and energy saving products.

Characterics:
*Low thermal expansion
*Large specific heat capacity
*High specific surface area
*Low pressure drop
*Small thermal resistance
*Good thermal conductivity
*Good Heat-shock resistting ability

Application: Iron and steel, metallurgy, petrochemical, electric power, boiler and Fuel elecric plant, Thermal power plant, theheat power station etc.
Composition Value (%)
Al2O3 70-80
SiO2 15-25
MgO 0-2
Fe2O2+TiO2 1-3
Others <5
Index Unit Value
Density g/cm3 2.3-2.7
Coefficient of heat expansion (X10-6K-1) (20-800celsius degree) ≤6
Specific Heat (J/Kg.k) (20~1000celsius degree) 1100~1300
Thermal Conductivity (20~1000celsius degree) 1.5~2.0
Impact Thermal Resistance (celsius degree/min) ≥300
Max.Working Temp. celsius degree 1550
Water absorption % 15~25
