100, 000pieces/Month
Export Package: Wooden Box+Pallet
L/C, T/T, Western Union
CFS
50*50*13mm,200*150*15mm,400*250*15mm,etc
10ppi,20ppi,30ppi,40ppi,50ppi,60ppi
11-50mm
Grey
DXY
China
842199900
1770< Refractoriness< 2000
Long Time Materials
Refractory Material
Rectangle, Round, Square
Silicon Carbide (SiC)
Iron Alloy
Product Description

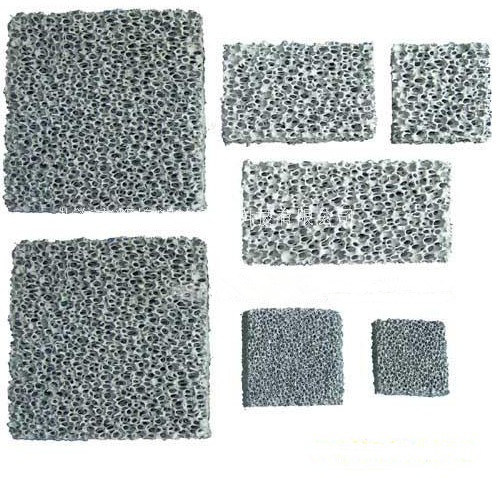

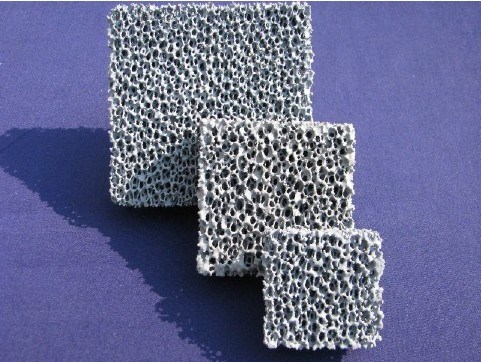

SiC Ceramic Foam Filter
We have distributed ceramic foam filter which is used for filtration of grey and nodular cast iron and copper alloys. It is made from high quality ceramic materials, whose main components are SiC,Al2O3 ,ZrO2 etc. Our products have superior performance for removing the mass in the molten metal liquid and also the tiny inclusion to improve the composition structure. Also it reduces the content of gas and poisonous element in the metal liquid. Lower inclusion content in the cast has the following advantages.
Advantages
1.Reduce defective rate of castings
2.Improve mechanical properties of castings
3.Reduced costs of finishing operations
4.Simplify pouring systems and increase utilization ratio of mold
Features:
* Sic foam filter for casting
* Filtration plate
* Sic material
* High strength
| Material | ZrO2 | SiC | Al2O3 |
| Colour | Yellow | Sage green | white |
| Aperture (ppi) | 4~60 | 4~60 | 4~60 |
| Cell-opening ratio(%) | 80~90 | 80~90 | 80~90 |
| Operating temperature(celsius degree) | 1680 | 1500 | 1100 |
| Porosity(≥%) | 80 | 80 | 90 |
| Compression Strength(MPa) | 1.5 | 0.8 | 0.7 |
| Density(g/cm3) | 0.55-0.80 | 0.40-0.80 | 0.46-0.80 |
| Thermal Shock Resistance(1100-20celsius degree) | >6 times | >6 times | >6 times |
| application | steel | iron | Non-ferrous,Alumina |
| No. | Size (mm) | Flow velocity (Kg/s) | Filter capacity (Kg) | ||
| Gray castiron | Ductile castiron | Gray castiron | Ductile castiron | ||
| 1 | 30×50×22 | 2~4 | 1~3 | 45~60 | 15~30 |
| 2 | 40×40×11 | 2~4 | 1~3 | 45~60 | 15~30 |
| 40×40×13 | 2~4 | 1~3 | 45~60 | 15~30 | |
| 40×40×22 | 2~4 | 1~3 | 45~60 | 15~30 | |
| 3 | 50×50×13 | 3~6 | 2~4 | 55~90 | 25~45 |
| 50×50×22 | 3~6 | 2~4 | 55~90 | 25~45 | |
| 4 | 60×60×22 | 4~8 | 3~5 | 65~110 | 40~75 |
| 5 | 66×66×22 | 5~9 | 4~6 | 80~130 | 45~80 |
| 6 | 75×50×22 | 4~8 | 5~7 | 65~110 | 40~75 |
| 7 | 75×75×22 | 9~14 | 6~9 | 145~220 | 70~100 |
| 8 | Φ50×22 | 3~5 | 1~3 | 50~70 | 20~40 |
| 9 | Φ60×22 | 3~6 | 2~4 | 65~110 | 35~60 |
| 10 | Φ70×22 | 4~8 | 3~6 | 75~130 | 40~75 |
| 11 | Φ76×22 | 5~9 | 4~7 | 90~150 | 45~80 |
| 12 | Φ90×22 | 10~15 | 6~9 | 180~260 | 75~110 |
| 13 | 100×50×22 | 8~12 | 5~8 | 130~200 | 65~90 |
| 14 | 100×60×22 | 9~14 | 6~9 | 180~260 | 70~100 |
| 15 | 150×100×22 | 18~25 | 12~16 | 300~ 400 | 150~210 |
| 16 | 150×150×22 | 35~50 | 24~36 | 400~ 900 | 300~450 |
