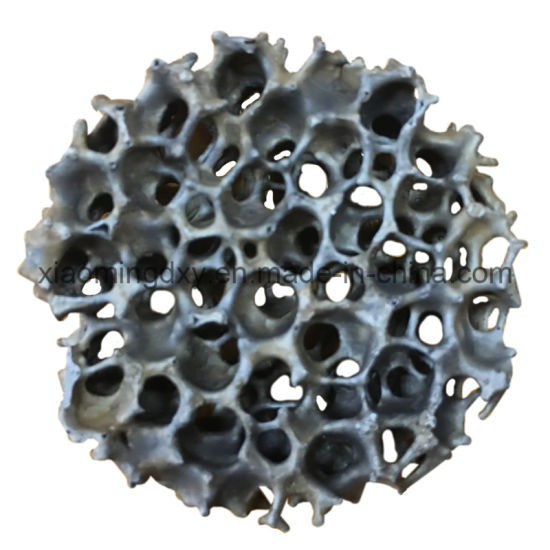

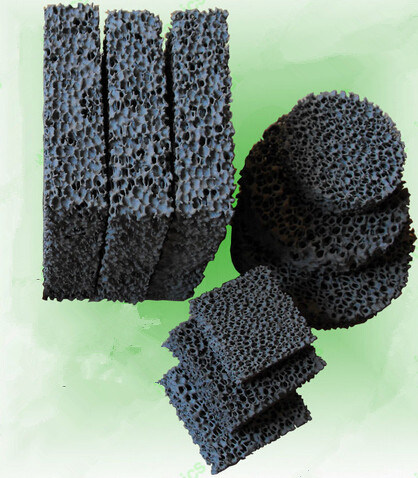

Grey Sic Ceramic Foam Filter for Iron Casting

Quantity:
  • Shanghai, China
  • 100, 000pieces/Month
  • L/C, T/T, D/P, Western Union, Paypal
  • CFF
  • 10ppi,20ppi,30ppi,40ppi,50ppi,60ppi
  • 11-50mm
  • Grey
  • DXY
  • Export Package: Wooden Box+Pallet
  • 50*50*13mm, 200*150*15mm, 400*250*15mm, etc
  • China
  • 842199900
  • 1770< Refractoriness< 2000
  • Long Time Materials
  • Refractory Material
  • Rectangle, Round, Square
  • Silicon Carbide (SiC)
  • Iron Alloy

Product Description

SiC Ceramic Foam Filter
SiC ceramic foam filter is mainly used for filtration of SiC and SiC alloys in foundries and cast houses. With their excellent thermal shock resistance and corrosion resistance from molten aluminum, they can effectively eliminate inclusions, reduce trapped gas and provide laminar flow, and then the filtered metal is significantly cleaner. Cleaner metal results in higher-quality castings, less scrap, and fewer inclusion defects.

We have distributed ceramic foam filter which is used for filtration of grey and nodular cast iron and copper alloys. It is made from high quality ceramic materials, whose main components are SiC, Al2O3, ZrO2 etc. Our products have superior performance for removing the mass in the molten metal liquid and also the tiny inclusion to improve the composition structure. Also it reduces the content of gas and poisonous element in the metal liquid.

Advantages
*Reduce defective rate of castings
*Improve mechanical properties of castings
*Reduced costs of finishing operations
*Simplify pouring systems and increase utilization ratio of mold
Material ZrO2 SiC Al2O3
Colour Yellow Sage green white
Aperture (ppi) 4~60 4~60 4~60
Cell-opening ratio(%) 80~90 80~90 80~90
Operating temperature(celsius degree) 1680 1500 1100
Porosity(≥%) 80 80 90
Compression Strength(MPa) 1.5 0.8 0.7
Density(g/cm3) 0.55-0.80 0.40-0.80 0.46-0.80
Thermal Shock Resistance(1100-20celsius degree) >6 times >6 times >6 times
application steel iron Non-ferrous,Alumina
Grey Sic Ceramic Foam Filter for Iron Casting

Grey Sic Ceramic Foam Filter for Iron Casting

No. Size (mm) Flow velocity (Kg/s) Filter capacity (Kg)
Gray castiron Ductile castiron Gray castiron Ductile castiron
1 30×50×22 2~4 1~3 45~60 15~30
2 40×40×11 2~4 1~3 45~60 15~30
40×40×13 2~4 1~3 45~60 15~30
40×40×22 2~4 1~3 45~60 15~30
3 50×50×13 3~6 2~4 55~90 25~45
50×50×22 3~6 2~4 55~90 25~45
4 60×60×22 4~8 3~5 65~110 40~75
5 66×66×22 5~9 4~6 80~130 45~80
6 75×50×22 4~8 5~7 65~110 40~75
7 75×75×22 9~14 6~9 145~220 70~100
8 Φ50×22 3~5 1~3 50~70 20~40
9 Φ60×22 3~6 2~4 65~110 35~60
10 Φ70×22 4~8 3~6 75~130 40~75
11 Φ76×22 5~9 4~7 90~150 45~80
12 Φ90×22 10~15 6~9 180~260 75~110
13 100×50×22 8~12 5~8 130~200 65~90
14 100×60×22 9~14 6~9 180~260 70~100
15 150×100×22 18~25 12~16 300~ 400 150~210
16 150×150×22 35~50 24~36 400~ 900 300~450
