Trapezoid Sic Carbide Ceramic Foam Filter for Iron Steel Casting
You are here: Home » Products » Foam Ceramic Filter » SiC Ceramic Foam Filter » Trapezoid Sic Carbide Ceramic Foam Filter for Iron Steel Casting

loading

Trapezoid Sic Carbide Ceramic Foam Filter for Iron Steel Casting

Quantity:
Inquire Add to Basket

sharethis sharing button

  • Shanghai, China

  • 100, 000pieces/Month

  • T/T

  • CFC

  • 11-50mm

  • Grey

  • Steel Iron Foundry

  • DXY

  • Export Package: Wooden Box+Pallet

  • China

  • 842199900

  • 1770< Refractoriness< 2000

  • Long Time Materials

  • Refractory Material

  • Rectangle, Round, Square

  • Silicon Carbide (SiC)

  • 10ppi,20ppi,30ppi,40ppi,50ppi,60ppi

Product Description

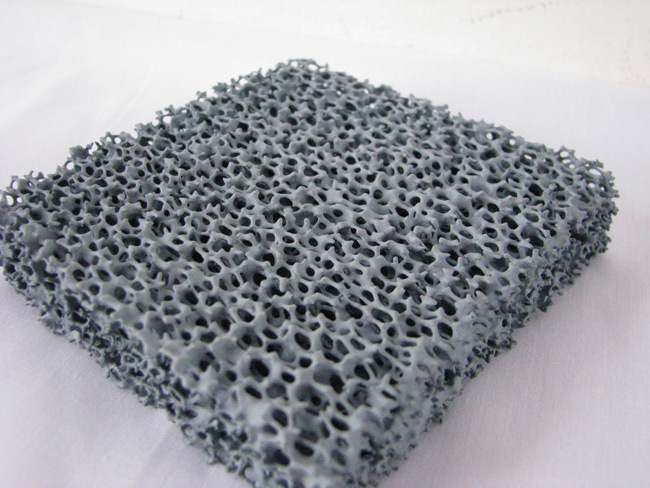

Trapezoid Sic Carbide Ceramic Foam Filter for Iron Steel Casting


Silicon carbide is thermally conductive (ceramic foam filters are insulating oxide ceramics).
Therefore, there is less temperature gradient between the hot and cold sides of the filter. This
means less superheat is required in the hearth, and less sludging occurs because temperature
can be maintained in the dip- out well. Actual temperature gradients depend on furnace design, well area, metal throughput,
and filter cleanliness. Gradients less than 5 celsius degree exist with steady metal flow - for example, during continuous dip-out, ladling, or pouring - and when oxide buildup, which is insulating, is removed periodically
Applications: Filters for Molten Iron & Alloy, nodular cast iron castings, grey iron castings
and malleable castings,and for the filtration of non-ferrous metals
Material: SiC (Silicon Carbide)
Working Temperature: 1500 celsius degree
Pore Size: 10,20,30,60 PPI

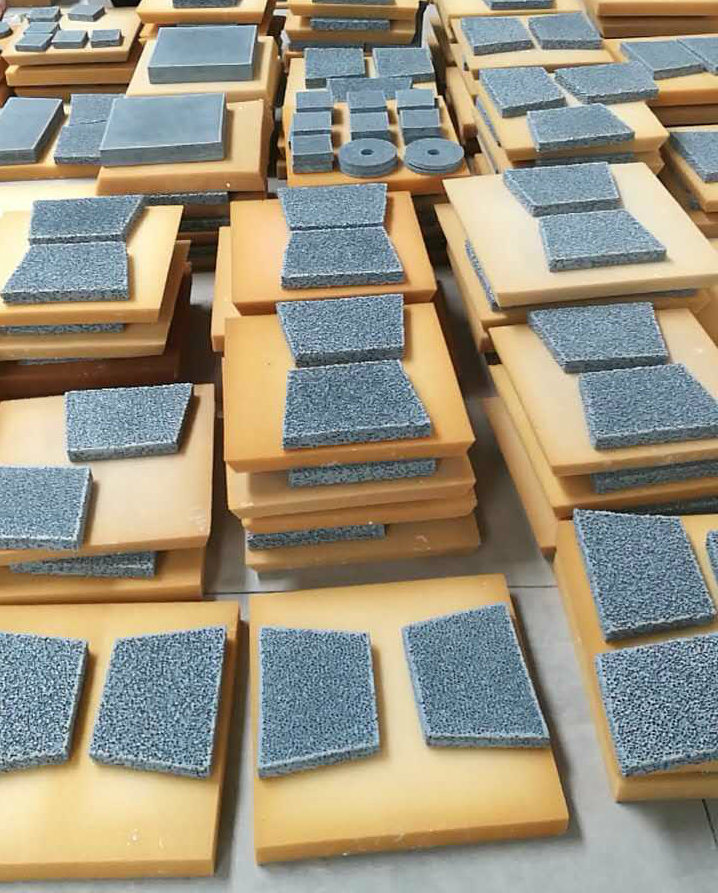

Trapezoid Sic Carbide Ceramic Foam Filter for Iron Steel Casting Trapezoid Sic Carbide Ceramic Foam Filter for Iron Steel Casting
Feature CFS
Material SiC
Temperature(celsius degree) ≤1700
PPI 10~60
Porsity(%) 80~90
Hardness (Mpa) ≥1.0
Density (g/cm3) ≤0.5
Thermal Stability(1100 celsius degree/per time) 2
AI2O3 (%) 30~35
SiO2 (%) 0~5
SiC (%) 60~65
ZrO2 (%) _
MgO _
Others (%) 0~5
Application Iron, Copper Casting
