Sic Ceramic Foam Filter for Cast Iron Filtration
You are here: Home » Products » Foam Ceramic Filter » SiC Ceramic Foam Filter » Sic Ceramic Foam Filter for Cast Iron Filtration

Sic Ceramic Foam Filter for Cast Iron Filtration

Quantity:
  • Shanghai, China

  • 100, 000pieces/Month

  • L/C, T/T, Western Union, Paypal

  • CFS

  • 11-50mm

  • Sic Alloy Casting

  • DXY

  • Export Package: Wooden Box+Pallet

  • 50*50*13mm, 200*150*15mm, 400*250*15mm, etc

  • China

  • 842199900

  • 1770< Refractoriness< 2000

  • Long Time Materials

  • Refractory Material

  • Rectangle, Round, Square

  • Silicon Carbide (SiC)

  • 10ppi, 20ppi, 30ppi, 40ppi, 50ppi, 60ppi

Product Description

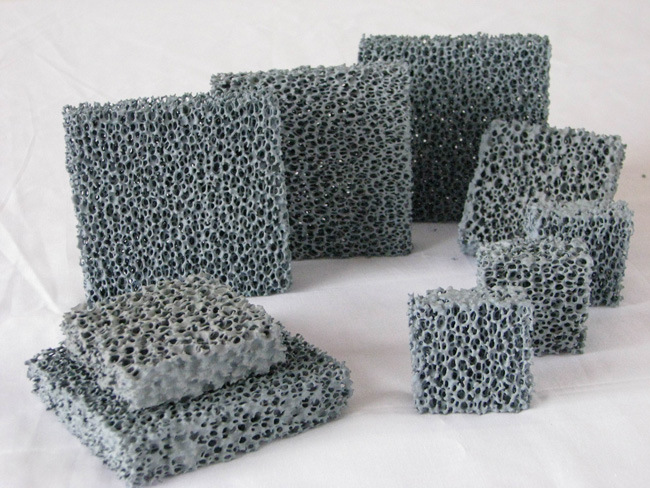

SIC Ceramic Foam filters are just developed as a new type molten metal filter to decrease casting flaw in recent years. With its characteristics of light-weight, high mechanical strength, large specific surface areas, high porosity, excellent thermal shock resistance, erode resistance, high-performance, SIC Ceramic Foam filter is designed for filtering impurities from molten Iron & Alloy, nodular cast iron castings, grey iron castings and malleable castings, Bronze casting, etc. With their excellent resistance to attack and corrosion from molten iron liquid, SIC Ceramic Foam filter can effectively remove inclusions, reduce trapped gas from liquid metal and provide laminar flow, and then the filtered metal is significantly cleaner. Cleaner metal results in higher-quality castings, less scrap, and fewer inclusion defects, all of which contribute to bottom-line profit.

Functions:
*Decontaminate the melting metal liquid
*Simplified gating system
*Improve the metallurgical structure of the castings
*Reduce slag inclusions of the castings
*Improve the casting quality rate
*Reduce casting internal re-oxidation defects
*Reduce the surface defects after machining of the castings

Advantages:
*Filter the surdries in the castings, reduce the casting splracles, reduce the veins flowing when pouring the casting, reduce surface defects, obviously to improve the final-product rate
*Reduce castings manufacturing duration and the sword and tool damages, improve casting surface manufacturing quality
*Strengthen castings anti-pressure and airproof features, strengthen elongate anti-resistance intensity, to improve surface glabrousness
*Predigest casting system designing requirement, reduce the length of horizontal casting channel, improve castings technology output rate
Material Silicon Carbide
Applied Temp. ( ° C) ≤ 1500
Color Grey-Black
Pore Size ( PPI ) 10/15/20/30/40
Porosity ( % ) 80 ~ 90
Compressive Strength ( MPa ) ≥ 1.0
Bulk Density ( g/cm3 ) 0.4 ~ 0.6
Thermal Shock Resistance Excellent
Composite Al 2 O 3 (%) 15 ~ 25
SiO 2 (%) 10 ~ 25
SiC(%) 55 ~ 65
Others(%) 0 ~ 5
Specification
( mm ) L.W.T
10 ppi 20 ppi
Pouring Capacity
( kg )
Pouring Rate
( Kg/sec )
Pouring Capacity
( kg )
Pouring Rate
( Kg/sec )
Grey iron Ductile Grey iron Ductile Grey iron Ductile Grey iron Ductile
40 × 40 × 22 80 40 5 3 64 32 4.5 2.5
50 × 50 × 22 100 50 6 4 80 40 5 3
75 × 50 × 22 150 75 9 6 120 60 7 5
100 × 50 × 22 200 100 12 8 160 80 10 6.5
75 × 75 × 22 220 110 14 9 176 88 11 7
100 × 75 × 22 300 150 18 12 240 120 14 9
100 × 100 × 22 400 200 24 16 336 168 20 13
150 × 150 × 25 900 450 54 36 720 360 40 30
Sic Ceramic Foam Filter for Cast Iron Filtration
