Shanghai, China
100, 000pieces/Month
L/C, T/T, Western Union, Paypal
CFS
10ppi,20ppi,30ppi,40ppi,50ppi,60ppi
11-50mm
Grey
DXY
Export Package: Wooden Box+Pallet
50*50*13mm, 200*150*15mm, 400*250*15mm, etc
China
842199900
1770< Refractoriness< 2000
Long Time Materials
Refractory Material
Rectangle, Round, Square

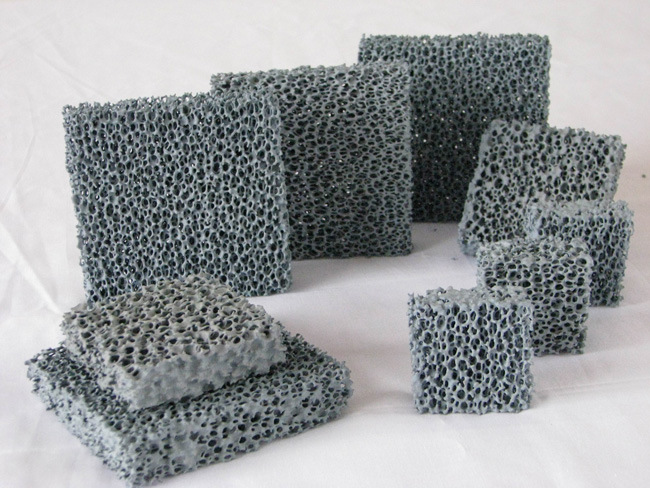

Silicon Carbide (SiC)
Iron Alloy
Product Description
| Material | ZrO2 | SiC | Al2O3 |
| Colour | Yellow | Sage green | white |
| Aperture (ppi) | 4~60 | 4~60 | 4~60 |
| Cell-opening ratio(%) | 80~90 | 80~90 | 80~90 |
| Operating temperature(celsius degree) | 1680 | 1500 | 1100 |
| Porosity(≥%) | 80 | 80 | 90 |
| Compression Strength(MPa) | 1.5 | 0.8 | 0.7 |
| Density(g/cm3) | 0.55-0.80 | 0.40-0.80 | 0.46-0.80 |
| Thermal Shock Resistance(1100-20celsius degree) | >6 times | >6 times | >6 times |
| application | steel | iron | Non-ferrous,Alumina |
| No. | Size (mm) | Flow velocity (Kg/s) | Filter capacity (Kg) | ||
| Gray castiron | Ductile castiron | Gray castiron | Ductile castiron | ||
| 1 | 30×50×22 | 2~4 | 1~3 | 45~60 | 15~30 |
| 2 | 40×40×11 | 2~4 | 1~3 | 45~60 | 15~30 |
| 40×40×13 | 2~4 | 1~3 | 45~60 | 15~30 | |
| 40×40×22 | 2~4 | 1~3 | 45~60 | 15~30 | |
| 3 | 50×50×13 | 3~6 | 2~4 | 55~90 | 25~45 |
| 50×50×22 | 3~6 | 2~4 | 55~90 | 25~45 | |
| 4 | 60×60×22 | 4~8 | 3~5 | 65~110 | 40~75 |
| 5 | 66×66×22 | 5~9 | 4~6 | 80~130 | 45~80 |
| 6 | 75×50×22 | 4~8 | 5~7 | 65~110 | 40~75 |
| 7 | 75×75×22 | 9~14 | 6~9 | 145~220 | 70~100 |
| 8 | Φ50×22 | 3~5 | 1~3 | 50~70 | 20~40 |
| 9 | Φ60×22 | 3~6 | 2~4 | 65~110 | 35~60 |
| 10 | Φ70×22 | 4~8 | 3~6 | 75~130 | 40~75 |
| 11 | Φ76×22 | 5~9 | 4~7 | 90~150 | 45~80 |
| 12 | Φ90×22 | 10~15 | 6~9 | 180~260 | 75~110 |
| 13 | 100×50×22 | 8~12 | 5~8 | 130~200 | 65~90 |
| 14 | 100×60×22 | 9~14 | 6~9 | 180~260 | 70~100 |
| 15 | 150×100×22 | 18~25 | 12~16 | 300~ 400 | 150~210 |
| 16 | 150×150×22 | 35~50 | 24~36 | 400~ 900 | 300~450 |
