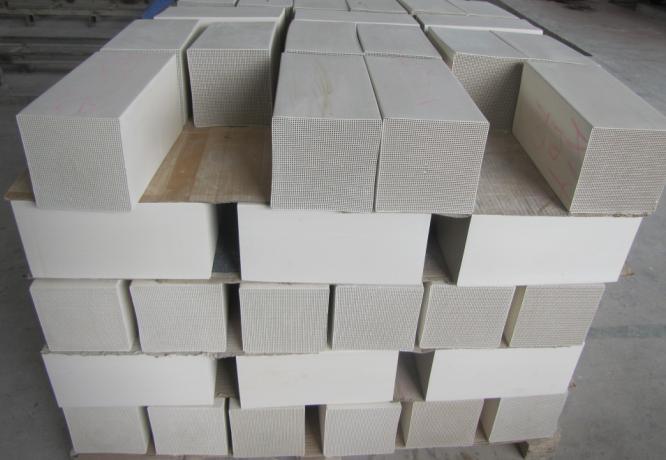

Honeycomb Monolith Ceramic are a new kind of industrial ceramic product developed in recent
Years. They have a large surface area, higher air vent rate. Ceramic Honeycomb as the media of
Heat storage and heat exchange, has been widely applied in the fields of metallurgy, petroleum &
Chemical industry, electric power, boiler and so on. Honeycomb ceramic are made of corundum-mullite, cordierite-mullite, cordierite, mullite, zirconia-mullite, carbo-corundum and so on with different hole shapes, such as square hole and hexagon hole, different wall thicknesses from 0.5mm to 5mm, and different figure specs, such as 100× 150× 100mm,
100× 100× 100mm, 150× 150× 150mm, 150× 150× 300mm, and so on.
Ceramic Honeycomb as the media of heat storage and heat exchange, has been widely applied
In the fields of metallurgy, petroleum & chemical industry, electric power, boiler and so on. It has
High surface area, small resistance and thermal expansion, strong chemical corroding resistance,
Excellent thermal shock resistance.
Manufacturer of Honeycomb ceramic for RTO:
Size: 100X100X100mm 150X150X300mm 100x100x150mm
ISO9001: 2008 Certified
Material: Monolith, Cordierite
Chemical analysis |
Composition | Value (%) | SiO2 | 28-51 | Al2O3 | 45-70 | MgO | ~ | Fe2O3 | ≤1.0 | TiO2 | ≤3.0 | K2O+Na2O+CaO | ≤1.0 | | |
Physical properties |
No | Index | Unit | Value | 1 | Gross Density | g/cm3 | 2.3~2.4 | 2 | Average Linear Expansion(20-1000°C) | 10-6/k-1 | ≤6.5 | 3 | Specific Heat Capacity | J/Kg.C | 850~1100 | 4 | Heat Conductivity | W/MK | 1.0~2.0 | 5 | Soft Temp. | °C | 1200 | 6 | Maximum Application Temp. | °C | 1200 | 7 | Corrosion Resistance Against Acid | % | ≥96.7 | |
Dimension and other physical properties |
Dimension | Quantity of channels | Wall thickness (mm) | Channel Width (mm) | Surface area (m2/m3) | Void section (%) | Packaging density (kg/ m3) | Weight per piece (kg) | 150×150×300 | 25×25 | 1.0 | 4.96 | 580 | 68 | 681 | 4.60 | 150×150×300 | 32×32 | 1.0 | 3.66 | 695 | 61 | 710 | 4.80 | 150×150×300 | 40×40 | 0.7 | 3.03 | 891 | 65 | 770 | 5.20 | 150×150×300 | 43×43 | 0.7 | 2.77 | 940 | 63 | 784 | 5.30 | 150×150×300 | 50×50 | 0.6 | 2.39 | 1090 | 63 | 829 | 5.60 | 150×150×300 | 60×60 | 0.5 | 1.99 | 1303 | 63 | 858 | 5.80 | |
