Large Supply Ceramic Honeycomb Heater 150X150X150mm
You are here: Home » Products » Accumulated/Storage Filter/Substrate » Large Supply Ceramic Honeycomb Heater 150X150X150mm

loading

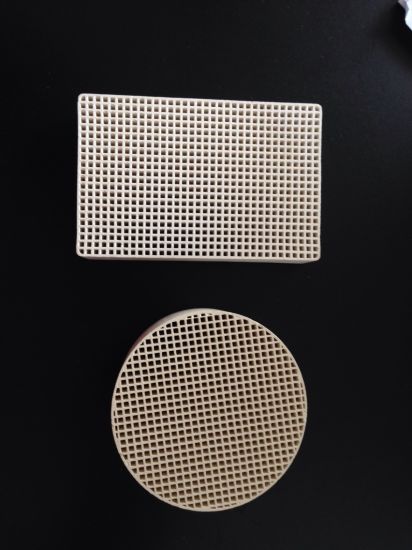

Large Supply Ceramic Honeycomb Heater 150X150X150mm

Quantity:
sharethis sharing button
  • 100, 000pieces/Month

  • Wooden Box and Pallet or According to Your Demand

  • L/C, T/T, Western Union

  • HCH

  • Ceramic

  • Heater

  • Plate Heat Exchanger

  • DXY

  • China

  • Cordierite/Corundum Mullte/Mullite/Silicon Oxide

  • 25holes, 40holes, 43holes, 50holes, 60holes

  • Round, Square, Hexagonal, Triangular

  • 1320-1700

  • 100*100*100, 150*150*150, 150*150*300

  • Regenerative Heat Exchanger

Product Description

Cordierite is a magnesium alumina silicate material, which has very low linear expansion, low coefficient of thermal expansion and excellent resistance to thermal shock. Cordierite also offers an excellent range of mechanical strength, porosity criteria, and excels in cost-effective extruded and dry-pressed forms. Cordierite Honeycomb Monoliths are divided into two types: Porous type and compact type.

As its features of corrosion resistances, large specific surface area, small heat resistance, good thermal conductivity and excellent thermal-shock resistance, fast heat exchanging and energy saving. It's widely used in many fields. Honeycomb ceramic as the heat exchange media is the key part for heat storing HTAC ( High Temperature Air Combustion) technology. It is the best choice for RTO, heat exchanger and other environmental protection and energy saving products.

High Temperature Air Combustion (HTAC) is new-type combustion technology with great energy-saving and environment protection. This technology is to make two regenerators to absorb heat and send out heat alternatively through the reversal valve, recuperate the heat of the exhaust gas to the maximum extent, then heat the combustion-supporting air and coal gas to over 1000° C, even the inferior fuel of lower calorific power can also catch fire steadily and burns high-efficiently. The heat storage honeycomb ceramic as heat exchange media is the key part of HTAC.

Material:
Corundum-mullite, Cordierite-mullite, Cordierite, Mullite, Corundum, Zirconium- mullite etc

Application
Used in the petroleum chemical engineering, garbage incineration, coating and paints chartered plane, also applied in the industry waster gas and waste water processing etc
Parameters Unit standard typical data
Cordierite crystal phase wt% ≥90 94
Coefficient of Thermal Expansion20-800celsius degree cm/cm/celsius degree ≤1.2 ≤1.5×10-6
Thermal Stability20-650celsius degree times ≥1 3
Soften Temperature Celsius degree ≥1420 1440
Compression Strength Lengthways MPa ≥15 16.9
Horizontal MPa ≥2 6.2
Specific Weight Kg/L ≥0.15 0.45-0.5
Porosity % 40-45 41
Water-absorbing rate % 23-27 23.8













Rotundity shape Ellipse shape
Specificationmm Number of channels (holes /square inch) Specification (mm) Number of channels (holes /square inch)
Φ83×85 400 T146.8×77×86.4 400
Φ144×152.4 400 T120.6×80×152.4 400
Φ100×100 400 T169.7×80.7×76.2 400
Φ130×130 400 T144.8×81.3×152.4 400
Φ118×150 400 T144.8×81×76.2 400
Φ103×100 400 T169.7×80.7×101.6 400
Φ150×75 400 T144.8×81.3×100 300
Φ83×125 400 T127×63.5×107 300
Φ150×150 300 T144.8×81.3×70 300
Φ120×100 300 T144.8×81.3×150 300
Φ101.6×100 300 Race track shape
Φ94×100 300 P120.65× 80.01×76.2 400
Φ85×70 300 P120.65× 80.01× 76.2 200
Φ93×76 200 P144×68×150 400
Φ118×76 200 P125×80×100 400
