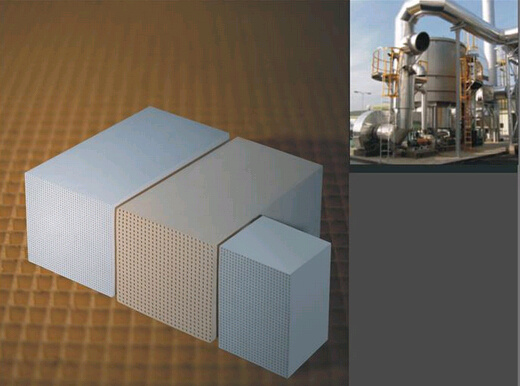

Honeycombs Ceramic Heater for Ventilation System

Quantity:
sharethis sharing button
  • Shanghai, China

  • 100, 000pieces/Month

  • L/C, T/T, Western Union, Paypal

  • HCH

  • DXY

  • China

  • 6909190000

  • Rto

  • Cordierite/Corundum Mullte/Mullite/Silicon Oxide

  • Round, Square, Hexagonal, Triangular

  • 25/40/43/50/60holes

  • 1320-1700

  • Wooden Box and Pallet or According to Your Demand

Product Description

Honeycomb Monolith Ceramic are a new kind of industrial ceramic product developed in recent years. They have a large surface area, higher air vent rate. Ceramic Honeycomb as the media of Heat storage and heat exchange, has been widely applied in the fields of metallurgy, petroleum & Chemical industry, electric power, boiler and so on. Honeycomb ceramic are made of corundum-mullite, cordierite-mullite, cordierite, mullite, zirconia-mullite, carbo-corundum and so on with different hole shapes, such as square hole and hexagon hole, different wall thicknesses from 0.5mm to 5mm, and different figure specs, such as 100× 150× 100mm, 100× 100× 100mm, 150× 150× 150mm, 150× 150× 300mm, and so on.

Honeycombs Ceramic Heater for Ventilation System

Ceramic Honeycomb as the media of heat storage and heat exchange, has been widely applied
In the fields of metallurgy, petroleum & chemical industry, electric power, boiler and so on. It has
High surface area, small resistance and thermal expansion, strong chemical corroding resistance,
Excellent thermal shock resistance.

Manufacturer of Honeycomb ceramic for RTO:
Size: 100X100X100mm 150X150X300mm 100x100x150mm
ISO9001: 2008 Certified
Material: Monolith, Cordierite
Chemical analysis
Composition Value (%)
SiO2 28-51
Al2O3 45-70
MgO ~
Fe2O3 ≤1.0
TiO2 ≤3.0
K2O+Na2O+CaO ≤1.0

Physical properties
No Index Unit Value
1 Gross Density g/cm3 2.3~2.4
2 Average Linear Expansion(20-1000°C) 10-6/k-1 ≤6.5
3 Specific Heat Capacity J/Kg.C 850~1100
4 Heat Conductivity W/MK 1.0~2.0
5 Soft Temp. °C 1200
6 Maximum Application Temp. °C 1200
7 Corrosion Resistance Against Acid % ≥96.7

Dimension and other physical properties
Dimension Quantity
of
channels
Wall
thickness
(mm)
Channel
Width
(mm)
Surface
area
(m2/m3)
Void section (%) Packaging density
(kg/ m3)
Weight per piece (kg)
150×150×300 25×25 1.0 4.96 580 68 681 4.60
150×150×300 32×32 1.0 3.66 695 61 710 4.80
150×150×300 40×40 0.7 3.03 891 65 770 5.20
150×150×300 43×43 0.7 2.77 940 63 784 5.30
150×150×300 50×50 0.6 2.39 1090 63 829 5.60
150×150×300 60×60 0.5 1.99 1303 63 858 5.80
