Honeycomb Monoliths Ceramic Honeycomb Heater
You are here: Home » Products » Accumulated/Storage Filter/Substrate » Honeycomb Monoliths Ceramic Honeycomb Heater

Honeycomb Monoliths Ceramic Honeycomb Heater

Quantity:
  • Shanghai, China
  • 100, 000pieces/Month
  • L/C, T/T, Western Union, Paypal
  • HCH
  • Ceramic
  • Heater
  • Plate Heat Exchanger
  • DXY
  • Wooden Box and Pallet or According to Your Demand
  • China
  • 6909190000
  • Cordierite/Corundum Mullte/Mullite/Silicon Oxide
  • 25hole, 30hole, 35hole, 40hole, etc
  • Round, Square, Hexagonal, Triangular
  • 1320-1700
  • Rto
  • Regenerative Heat Exchanger

Product Description

Honeycomb ceramics regenerator is the key part of high temperature air combustion (HTAC). It has the following notable characters: Perfect high-temperature resistance, anticorrosion, perfect thermal shock stability, high mechanical strength, large thermal storage capacity, advantaging heat- conduction property, energy- Conserving result and service life are improved greatly. It is extensively used in many kinds of heater, sirocco furnace, heat treatment furnace, cracking column, roaster, melting furnace, balance heating stove and etc. The results show that the honeycomb ceramics regenerator has high heat transfer efficiency, which can reach 87.02% at the temperature of 1130º C, and the combustion temperature is stable at the moment of switching. Mainly materials are cordierite, mullite, alumina and corundum. Ceramic Honeycomb as the media of heat storage and heat exchange, has been widely applied in the fields of metallurgy, petroleum & chemical industry, electric power, boiler and so on.

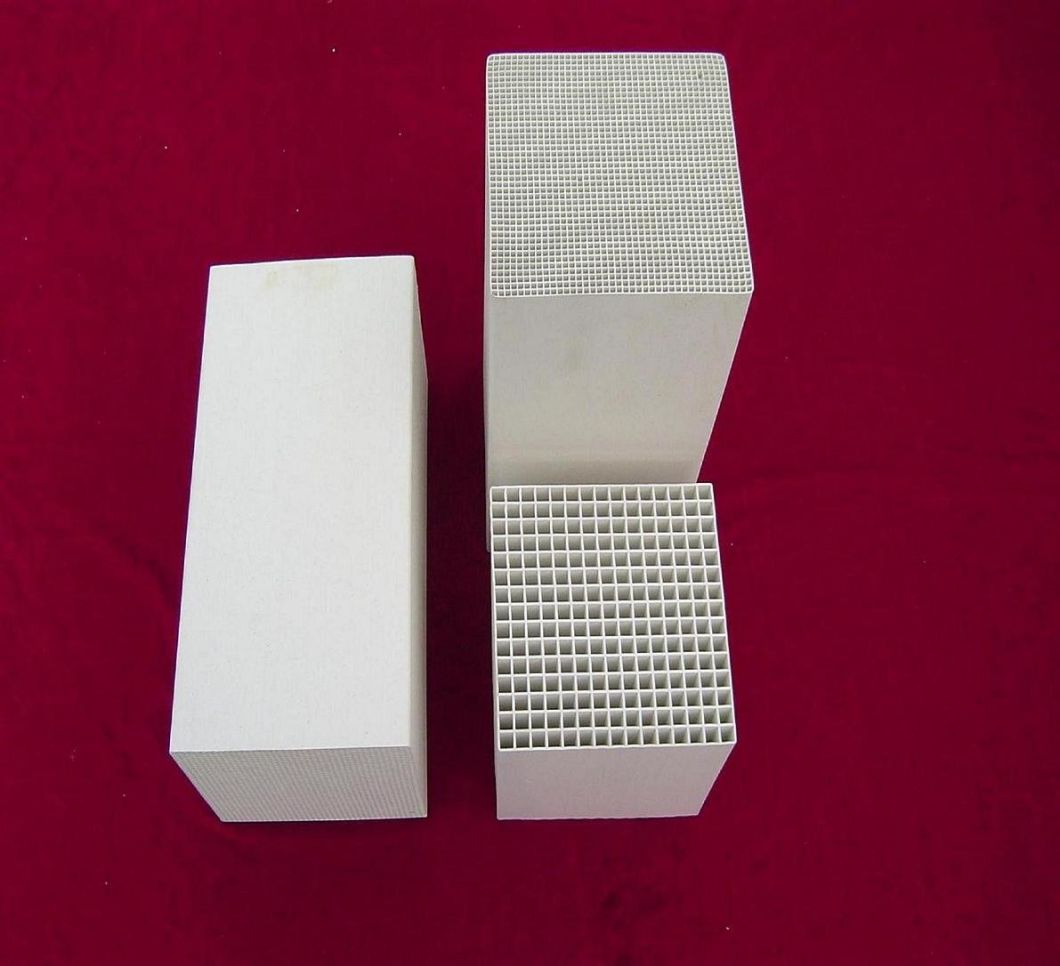

Honeycomb Monoliths Ceramic Honeycomb Heater

Honeycomb ceramic are made of corundum-mullite, cordierite-mullite, cordierite, mullite, zirconia-mullite, carbo-corundum and so on with different hole shapes, such as square hole and hexagon hole, different wall thicknesses from 0.5mm to 5mm, and different figure specs, such as 100× 150× 100mm, 100× 100× 100mm, 150× 150× 150mm, 150× 150× 300mm, and so on. Ceramic Honeycomb as the media of heat storage and heat exchange, has been widely applied in the fields of metallurgy, petroleum & chemical industry, electric power, boiler and so on. It has high surface area, small resistance and thermal expansion, strong chemical corroding resistance, excellent thermal shock resistance.

Heat Storage Honeycomb Ceramic Substrate:
* Heat storage ceramic
* Anti-high temperature
* Good thermal capacity

Application:
Regenerator in HTAC burners, it can save the energy up to 30%~60%
Catalyst carrier for RTO/RCO plant, reduce the oxidization temperature of VOC in waste gas
Refractory stove: Low mass/volume, fast heat conduction
Gas burn distributing plate: Burning completely, energy saving is 10%
Tower packing with high mass transfer efficiency and low resistance.

Advantages:
*High thermal shock resistance
*Low thermal expansion and good thermal conductivity
*Optimized flow rate
*Low pressure drop
*Excellent chemical and high geometric surface area
*Very long functional life
*Strong production capacity and leading technology level
*ISO9001: 2008 Certificate
Performance index
Mullite
Cordierite
Corundum
Chemical Content
SiO 2
25-30%
46-52%
8-11%
AL 2 O 3
70-72%
32-37%
85-92%
MgO
/
12-16%
1.8-2.5%
Fe 2 O 3
≤ 1.0%
≤ 1.0%
≤ 0.5%
Na 2 O+K 2 O+CaO
≤ 1.0%
≤ 1.0%
0.5-12%
Ti O 2 +BaO
/
≤ 1.0%
/
Compressive Strength(Mpa)
Lengthways
≥ 30
≥ 30
≥ 30
Horizontal
≥ 10
≥ 10
≥ 10
Density (g/cm 3 )
> 2.9
> 2.5
≥ 3.2
Water-absorbing rate(%)
15-30
15-30
15-25
Coefficient of Thermal Expansion ( × 10 -6 / ° C )
3.0-5.5
3.0-5.0
5.0-7.0
Thermal Capacity(J/Kg.k)
850-1050
800-1200
1300-1400
Thermal Conductivity (W/Mk)
1.4-2.0
1.3-1.8
5.0-10.0
Highest Working Temperature ( ° C )
1550
1350
1600
materia
Specification
(L × W × H)(mm)
Channels Density
(Cell/in 2 )
Number of Hole(cells)
Width of Channels (mm)
Thickness of Wall (mm)
Surface Area
( m 2 / m 3 )
Cell-opening Ratio (% )
Alumina
150 × 150 × 300
18
25 × 25
4.9
1.0
540
67
Cordierite
150 × 150 × 300
46
40 × 40
3.0
0.7
825
65
Mullite
150 × 150 × 300
72
50 × 50
2.26
0.72
1008
57
