Honeycomb Ceramic Heater for Rto Rco
You are here: Home » Products » Accumulated/Storage Filter/Substrate » Honeycomb Ceramic Heater for Rto Rco

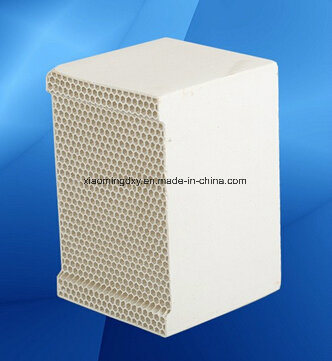

Honeycomb Ceramic Heater for Rto Rco

sharethis sharing button
  • Shanghai, China

  • 50cbm/Month

  • L/C, T/T, Western Union, Paypal

  • HCH

  • Heater

  • Plate Heat Exchanger

  • DXY

  • Wooden Box/Carton Box with Pallet

  • China

  • 6909190000

  • 100*100*100, 150*150*150, 150*150*300

  • Cordierite/Corundum Mullte/Mullite/Silicon Oxide

  • 25holes, 40holes, 43holes, 50holes, 60holes

  • Round, Square, Hexagonal, Triangle, etc

  • Regenerative Heat Exchanger

  • Ceramic

Product Description

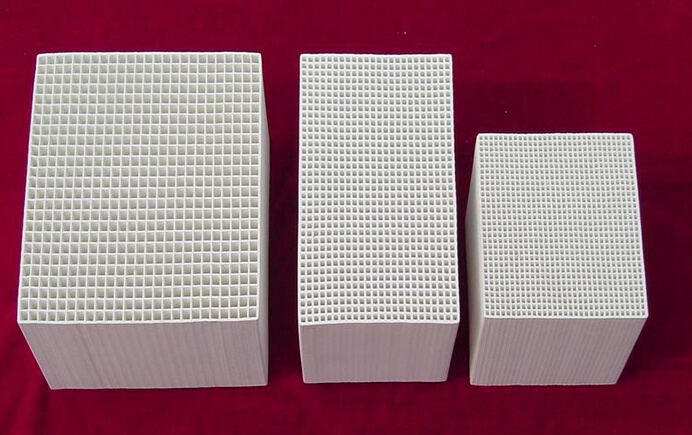

Corundum-based Honeycomb Ceramic Heat Accumulation Substance
It's features of corrosion resistances, large specific surface area, small heat
Resistance, good thermal conductivity and excellent thermal-shock resistance, fast heat exchanging and energy saving. It's widely used in many fields.
The honeycomb ceramic as the heat exchange media is the key part for heat storing HTAC
( High Temperature Air Combustion) technology. It is the best choice for RTO, heat exchanger
And other environmental protection and energy saving products.

Honeycomb Ceramic Heater for Rto Rco

*Low thermal expansion
*Large specific heat capacity
*High specific surface area
*Low pressure drop
*Small thermal resistance
*Good thermal conductivity
*Good Heat-shock resistting ability

Application: Iron and steel, metallurgy, petrochemical, electric power, boiler and Fuel elecric plant, Thermal power plant, theheat power station etc
Composition Value (%)
Al2O3 70-80
SiO2 15-25
MgO 0-2
Fe2O2+TiO2 1-3
Others <5
Index Unit Value
Density g/cm3 2.3-2.7
Coefficient of heat expansion (X10-6K-1) (20-800celsius degree) ≤6
Specific Heat (J/Kg.k) (20~1000celsius degree) 1100~1300
Thermal Conductivity (20~1000celsius degree) 1.5~2.0
Impact Thermal Resistance (celsius degree/min) ≥300
Max.Working Temp. celsius degree 1550
Water absorption % 15~25


More >>
