Honeycomb Ceramic Heater for Rto Ceramic Honeycomb Substance
You are here: Home » Products » Accumulated/Storage Filter/Substrate » Honeycomb Ceramic Heater for Rto Ceramic Honeycomb Substance

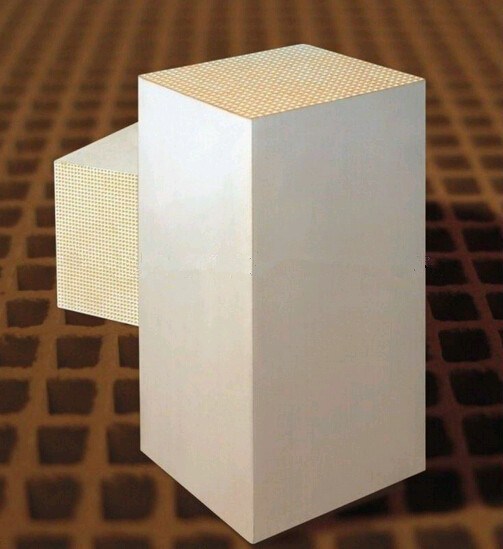

Honeycomb Ceramic Heater for Rto Ceramic Honeycomb Substance

Quantity:
sharethis sharing button
  • Shanghai, China

  • 100, 000pieces/Month

  • L/C, T/T, Western Union, Paypal

  • HCH

  • Regenerative Heat Exchanger

  • Ceramic

  • Heater

  • Plate Heat Exchanger

  • DXY

  • Wooden Box and Pallet or According to Your Demand

  • China

  • 6909190000

  • 150*150*100mm, 100*100*150mm etc

  • 25/40/43/50/60holes

  • Round, Square, Hexagonal, Triangular

  • Cordierite/Corundum Mullte/Alumina etc

  • 1320-1700

  • Rto

Product Description

Honeycomb ceramic-heat accumulation substance
Honeycomb ceramic are made of corundum-mullite, cordierite-mullite, cordierite, mullite, zirconia-mullite, carbo-corundum and so on with different hole shapes, such as square hole and hexagon hole, different wall thicknesses from 0.5mm to 5mm, and different figure specs, such as 100× 150× 100mm, 100× 100× 100mm, 150× 150× 150mm, 150× 150× 300mm, and so on.

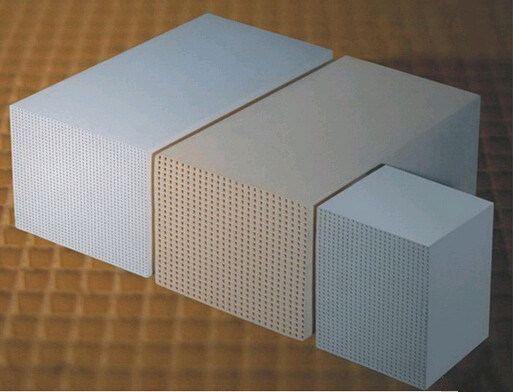

Honeycomb Ceramic Heater for Rto Ceramic Honeycomb Substance

Ceramic Honeycomb as the media of heat storage and heat exchange, has been widely applied in the fields of metallurgy, petroleum & chemical industry, electric power, boiler and so on. It has high surface area, small resistance and thermal expansion, strong chemical corroding resistance, excellent thermal shock resistance.

Application
Used in the petroleum chemical engineering, garbage incineration, coating and paints chartered plane, also applied in the industry waster gas and waste water processing etc.

Honeycomb Ceramic Heater for Rto Ceramic Honeycomb Substance
SiO2 Al2O3 MgO Fe2O3 Na2O K2O
48-51% 31-34% 14-16% <0.5% <0.5% <0.5%
Index Value
Cordierite gross density(g/cm3) 1.9-2.0
Average linear expansion(20-1000) (10-6/k-1) <2
Specific heat capacity(KJ/Kg) 830-900
Temperature cycle resistance(K) 300
Max operation Temp.(Degree C) 1300
Thermal shock resistance(Degree C) 800
Acid resistance(%) >99
Alkali resistance(%) >85
Water absorption(Wt%) 22±5
Spec. Quantity of channels Wall thickness (mm) Surface area (m2/m3) Free volume (%) Average weight (min.) (kg/m3)
150*150*300 60*60 0.5 1315 70 680
150*150*300 50*50 0.7 1050 58 680
150*150*300 40*40 0.7 883 65 518
150*150*300 25*25 1.0 573 67 502
