Honeycomb Ceramic Heat Accumulator Honeycomb Heater for Rto
You are here: Home » Products » Accumulated/Storage Filter/Substrate » Honeycomb Ceramic Heat Accumulator Honeycomb Heater for Rto

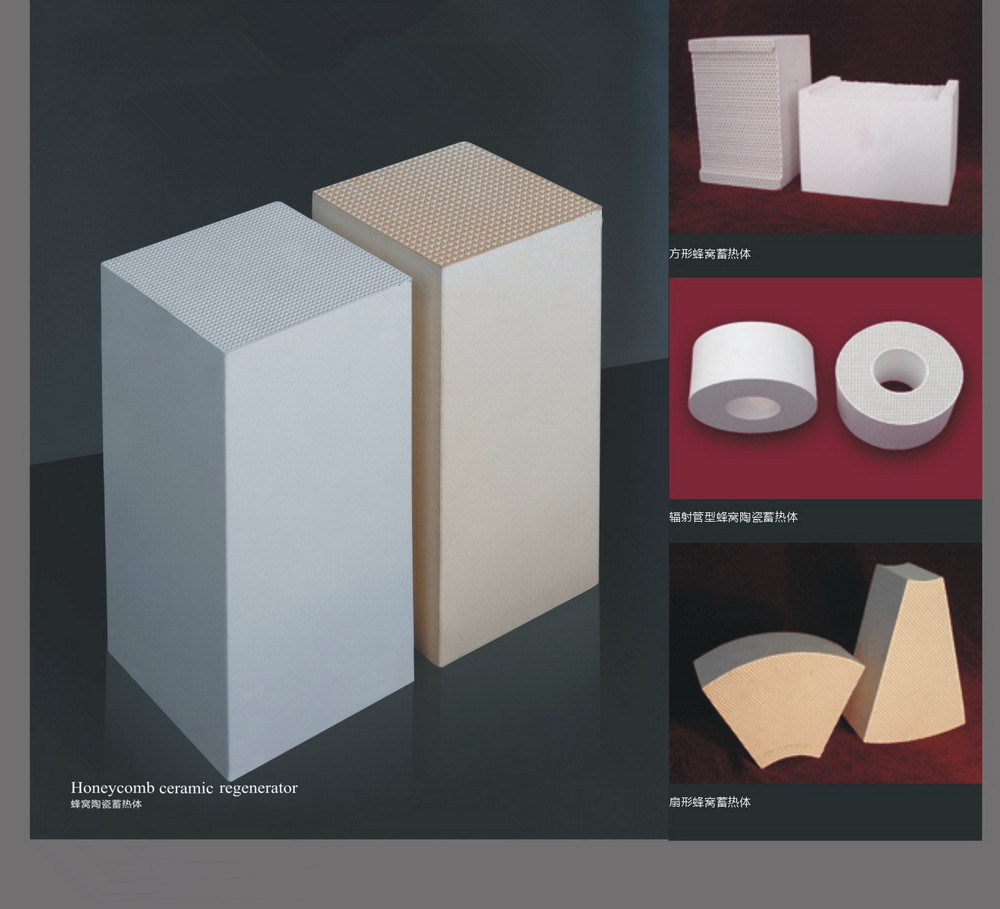

Honeycomb Ceramic Heat Accumulator Honeycomb Heater for Rto

Quantity:
sharethis sharing button
  • Shanghai, China

  • 100, 000pieces/Month

  • L/C, T/T, Western Union, Paypal

  • HCH

  • Regenerative Heat Exchanger

  • Ceramic

  • Heater

  • Plate Heat Exchanger

  • DXY

  • Wooden Box and Pallet or According to Your Demand

  • China

  • 6909190000

  • Cordierite/Corundum Mullte/Mullite/Silicon Oxide

  • Rto

  • 100*100*100, 150*150*150, 150*150*300

  • 2/40/43/50/60holes

  • Round, Square, Hexagonal, Triangular

  • 1320-1700

Product Description

Honeycomb Ceramic Heater is also called high Temperature Air Combustion (HTAC) is a new type combustion technology with enormous energy-conservation and environmental protection. The Thermal storage honeycomb ceramics are widely used in the various heating furnaces, hot blast furnaces, heat treatment furnace, cracking furnaces, roaster, melting furnace, soaking pit furnaces, oil gas boiler, etc in the steel, machinery, building materials, petrochemical, colored metal smelting and etc industries.
The corundum/mullite and cordierite/mullite complex thermal storage honeycomb ceramic developed by our company has the following notable characters: Perfect high temperature resistance, anticorrosion, perfect thermal shock stability, high mechanical strength, large thermal storage capacity, advantaging heat conduction property, energy conserving result and service life are improved greatly. At present, our products have already been approved by numerous iron and steel enterprise and exported to Japan, South Korea and Europe and America market.

Honeycomb Ceramic Heat Accumulator Honeycomb Heater for Rto

Professional Manufacturer of Honeycomb Ceramic Heater
*Ceramic honeycomb
*Used In Waste Incineration
*ISO 9001: 2008
*TS16949 certified
*Thin wall thickness
*Better air flow
*Less backpressure
Parameters Unit standard typical data
Cordierite crystal phase wt% ≥90 94
Coefficient of Thermal Expansion20-800celsius degree cm/cm/celsius degree ≤1.2 ≤1.5×10-6
Thermal Stability20-650celsius degree times ≥1 3
Soften Temperature Celsius degree ≥1420 1440
Compression Strength Lengthways MPa ≥15 16.9
Horizontal MPa ≥2 6.2
Specific Weight Kg/L ≥0.15 0.45-0.5
Porosity % 40-45 41
Water-absorbing rate % 23-27 23.8
Rotundity shape Ellipse shape
Specificationmm Number of channels (holes /square inch) Specification (mm) Number of channels (holes /square inch)
Φ83×85 400 T146.8×77×86.4 400
Φ144×152.4 400 T120.6×80×152.4 400
Φ100×100 400 T169.7×80.7×76.2 400
Φ130×130 400 T144.8×81.3×152.4 400
Φ118×150 400 T144.8×81×76.2 400
Φ103×100 400 T169.7×80.7×101.6 400
Φ150×75 400 T144.8×81.3×100 300
Φ83×125 400 T127×63.5×107 300
Φ150×150 300 T144.8×81.3×70 300
Φ120×100 300 T144.8×81.3×150 300
Φ101.6×100 300 Race track shape
Φ94×100 300 P120.65× 80.01×76.2 400
Φ85×70 300 P120.65× 80.01× 76.2 200
Φ93×76 200 P144×68×150 400
Φ118×76 200 P125×80×100 400
