Good Heat Resistance Honeycomb Ceramic Heater
You are here: Home » Products » Accumulated/Storage Filter/Substrate » Good Heat Resistance Honeycomb Ceramic Heater

loading

Good Heat Resistance Honeycomb Ceramic Heater

Quantity:
sharethis sharing button
  • 100, 000pieces/Month

  • Wooden Box and Pallet or According to Your Demand

  • L/C, T/T, Western Union

  • HCH

  • Ceramic

  • Heater

  • Plate Heat Exchanger

  • DXY

  • China

  • Cordierite/Corundum Mullte/Mullite/Silicon Oxide

  • 20hole, 25hole, 30hole, 35 Hole etc

  • Rto

  • Round, Square, Hexagonal, Triangular

  • 1320-1700

  • Regenerative Heat Exchanger

Product Description

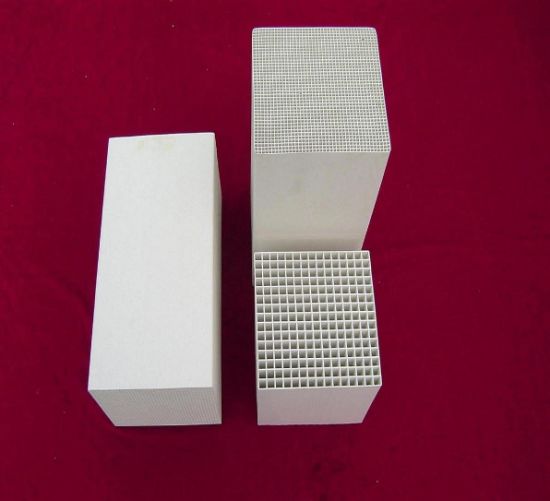

Honeycomb Ceramic Heater Introduction:
Honeycomb ceramic is composed of countless equal holes. The structure of it is like honeycomb shape and it is a kind of new ceramic products. The biggest hole number of it has reached 20~40 per square centimeter, the density is 4~6 grams per cubic centimeter and the water absorption rate is above 20%. Square cellular ceramic heat storage monolithic substrate, can be use as the flue gas waste heat recovery and high efficient combustion and low NOX emission. Cellular ceramic regenerator, can be use as the flue gas waste heat recovery and high efficient combustion and low NOX emission in Metallurgy, Chemical industry, building material industry.

It's suit for refuse incinerator, treatment of waste gas of thermal equipment, chemical plant, metallurgical plant, the power of industry boiler, gas turbine, engineering of heating equipment of high temperature storage, heat transfer system of industrial waste gas treatment.

Advantages:
*High thermal shock resistance
*Low thermal expansion and good thermal conductivity
*Optimized flow rate
*Low pressure drop
*Excellent chemical and high geometric surface area
*Very long functional life
*Strong production capacity and leading technology level
*ISO9001: 2008 Certificate

Features:
*High strength
*High temperature resistance
*Corrosion resistance
*Wear resistance
*Good thermal conductivity
*Environmentally friendly

Application:
Widely used in chemical industry, electric power industry, metallurgy industry, petroleum industry, electronics industry, machinery industry, etc. The development prospect is considerable.
Composition Value (%)
SiO2 16-20
Al2O3 72-77
MgO <1
Fe2O3 <1.5
TiO2 <4
K2O+Na2O+CaO 2-3









No Index Unit Value
1 Gross Density g/cm3 2.3-2.6
2 Average Linear Expansion(20-1000 ° C) 10-6/k-1 6-7.6
3 Specific Heat Capacity KJ/Kg 900-1200
4 Heat Conductivity W/MK 1.8-3
5 Soft Temp. ° C 1400
6 Maximum Application Temp. ° C 1350
7 Corrosion Resistance Against Acid % 99.5










Dimension Quantity
of
channels
Wall
thickness
(mm)
Channel
Width
(mm)
Surface
area
(m2/m3)
Void section (%) Packaging density
(kg/ m3)
Weight per piece (kg)
150 × 150 × 300 25 × 25 1.0 4.96 580 68 696 4.7
150 × 150 × 300 32 × 32 1.0 3.66 695 61 755 5.1
150 × 150 × 300 40 × 40 0.7 3.03 891 65 814 5.5
150 × 150 × 300 43 × 43 0.7 2.77 940 63 858 5.8
150 × 150 × 300 50 × 50 0.6 2.39 1090 63 903 6.1
150 × 150 × 300 60 × 60 0.5 1.99 1303 63 932 6.3
