Good Heat Resistance Ceramic Honeycomb Heater
You are here: Home » Products » Accumulated/Storage Filter/Substrate » Good Heat Resistance Ceramic Honeycomb Heater

Good Heat Resistance Ceramic Honeycomb Heater

sharethis sharing button
  • Shanghai, China

  • 100, 000pieces/Month

  • L/C, T/T, Western Union, Paypal

  • HCH

  • Storage-Type

  • Ceramic Heater

  • Double Tube Sheet Heat Exchanger

  • Plate Heat Exchanger

  • DXY

  • Wooden Box and Pallet or According to Your Demand

  • China

  • 6909190000

  • Ceramic Heating Equipment

  • Cordierite/Corundum Mullte/Mullite/Silicon Oxide

  • Round, Square, Hexagonal, Triangular

  • 1320-1700

  • Regenerative Heat Exchanger

  • Heater

Product Description

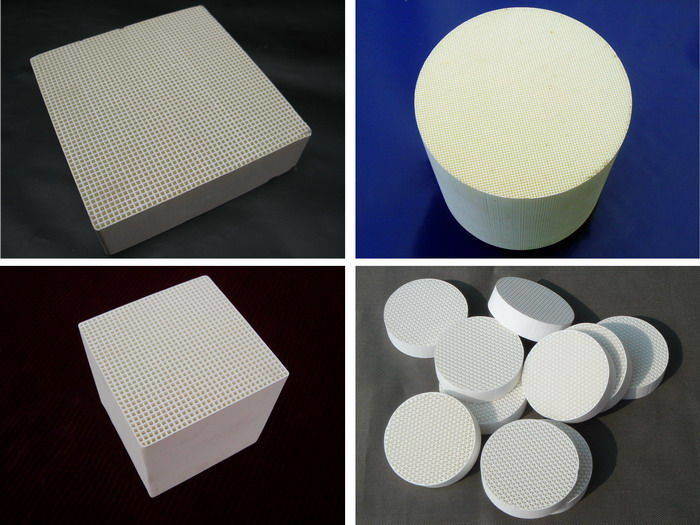

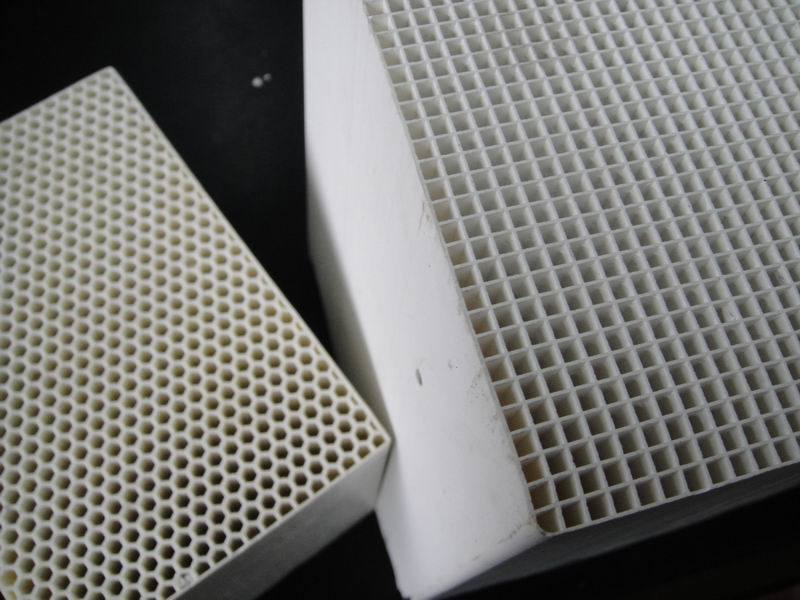

Ceramic Honeycomb Heat Storage Substrate Introduction:
High Temperature Air Combustion (HTAC) is new-type combustion technology with great energy-saving and environment protection. This technology is to make two regenerators to absorb heat and send out heat alternatively through the reversal valve, recuperate the heat of the exhaust gas to the maximum extent, then heat the combustion-supporting air and coal gas to over 1000° C, even the inferior fuel of lower calorific power can also catch fire steadily and burns high-efficiently. The heat storage honeycomb ceramic as heat exchange media is the key part of HTAC. Honeycomb ceramic is composed of countless equal holes. The structure of it is like honeycomb shape and it is a kind of new ceramic products. The biggest hole number of it has reached 20~40 per square centimeter, the density is 4~6 grams per cubic centimeter and the water absorption rate is above 20%.

Good Heat Resistance Ceramic Honeycomb Heater

Corundum-mullite, Cordierite-mullite, Cordierite, Mullite, Corundum, Zirconium- mullite etc.

*High strength.
*High temperature resistance.
*Corrosion resistance.
*Wear resistance.
*Good thermal conductivity.
*Environmentally friendly.

Widely used in chemical industry, electric power industry, metallurgy industry, petroleum industry, electronics industry, machinery industry, etc. The development prospect is considerable. Square cellular ceramic heat storage monolithic substrate, can be use as the flue gas waste heat recovery and high efficient combustion and low NOX emission.

It's suit for refuse incinerator, treatment of waste gas of thermal equipment, chemical plant, metallurgical plant, the power of industry boiler, gas turbine, engineering of heating equipment of high temperature storage, heat transfer system of industrial waste gas treatment.

Good Heat Resistance Ceramic Honeycomb Heater

*High thermal shock resistance
*Low thermal expansion and good thermal conductivity
*Optimized flow rate
*Low pressure drop
*Excellent chemical and high geometric surface area
*Very long functional life
*Strong production capacity and leading technology level
*ISO9001: 2008 Certificate
Chemical & Physical Index Cordierite Densecordierite Cordierite- mullite Mullite Corundum-mullite
Chemical Composition SiO 2 % 45~55 45~55 35~45 25~38 20~32
AI 2 O 3 % 30~38 33~43 40~50 50~65 65~73
MgO % 10~15 5~13 3~13 - -
K 2 O+Na 2 O % <1.0 <1.0 <1.0 <1.0 <1.0
Fe 2 O 3 % <1.5 <1.5 <1.5 <1.5 <1.5
Thermal Expansion Coefficient 10 -6 /K -1 <2 <4 <4 <5 <7
Specific Heat J/kg @ K 830~900 850~950 850~1000 900~1050 900~1100
Working Temperature ° C <1300 <1300 <1350 <1450 <1500
PS: we also can make products at your request and actual operating condition.
Number 1 2 3 4 5
L*W*H 150x150x300 150x150x300 150x150x300 150x150x300 150x150x300
Channel 25x25 34x34 40x40 43x43 50x50
Channel size(mm) 4.9 3.9 3.0 3.0 2.26
thickness(mm) 1.0 0.45 0.7 0.5 0.7/0.55
Surface Area(m ² /m ² ) 540 805 825 1000 1005
Void Space(%) 67 80 65 72
