Dense Cordierite Honeycomb Ceramic Heater for Rto
You are here: Home » Products » Accumulated/Storage Filter/Substrate » Dense Cordierite Honeycomb Ceramic Heater for Rto

Dense Cordierite Honeycomb Ceramic Heater for Rto

sharethis sharing button
  • 100, 000pieces/Month

  • Wooden Box and Pallet or According to Your Demand

  • T/T

  • HCH

  • 1320-1700

  • Regenerative Heat Exchanger

  • Ceramic

  • Aluminum Heat Exchanger

  • Heater

  • Storage-Type

  • Ceramic Heater

  • Gas Scrubber

  • Double Tube Sheet Heat Exchanger

  • Plate Heat Exchanger

  • DXY

  • China

  • 690919000

  • Ceramic Heating Equipment

  • Cordierite/Corundum Mullte/Mullite

  • 150*150*100mm, 100*100*150mm etc

  • Round, Square, Hexagonal, Triangular

  • 25/40/43/50/60holes

  • Rto

Product Description

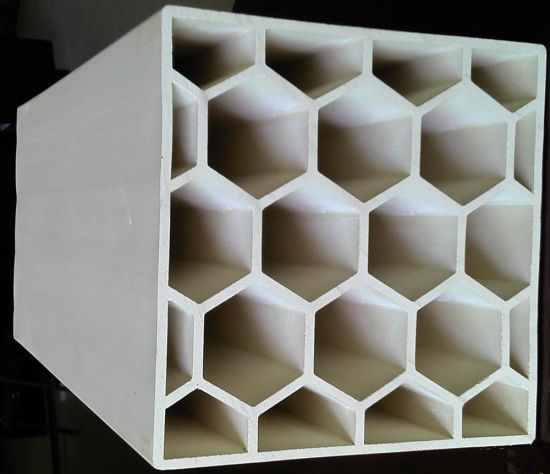

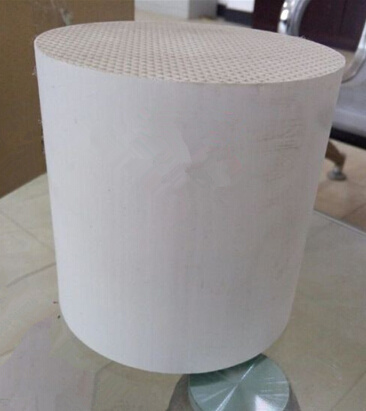

Dense Cordierite Honeycomb Ceramic Heater for Rto
Honeycomb Ceramic Heat Exchanger (Heat Store), is also known as high temperature combustion heat accumulator, is a key part of HTAC (high temperature air combustion) technology, and has been applicable in metallurgical industry furnace, like step wedge furnace, heat treatment furnace, forging furnace, melting furnace, radiant tube combustion, lifting furnace, hot blast furnace; in construction industry, applicable in all types of ceramic furnace and glasses furnace; petrochemical industry, applicable in all types of tube heating furnace, pyrolyzer and other industrial furnaces.
Honeycomb thermal store catalyst ceramic is used for waste gas treatment (RTO,RCO) of the different requirements, selecting many kinds of new highly effective ceramic material to make. It has the following notable characters: large specific surface area, little resistance loss, small heat-expand and cold-contract coefficient, high water-absorbing ratio, good fracture resistance and moderate Millipore aperture.
Coral ceramics regenerator produced by material like mullite, cordierite, mullite composite, cordierite composite and corundum have the capability of high temperature resistance, anti-corrosion, good thermal shock stability, high strength, better heat accumulation and quick thermal conductivity. Honeycomb Monoliths -Heat exchange media, Ceramic Heat Recovery Bed/ heat exchange beds, Thermal storage/ heat exchange elements/media, Ceramic monoliths media to save energy in steel works and metallurgy industry, Regenerative thermal oxidizers (RTO). Honeycomb monolith is the key components of the thermal storage style furnace, it is extensively used in many kinds of heater, sirocco furnace, heat treatment furnace, cracking column, roaster, melting furnace, balance heating stove and etc. This technology can save more than 70% of energy.

Dense Cordierite Honeycomb Ceramic Heater for Rto

1. It has advatange of high surface area, high heat capacity, low thermal expension, corrosion resistant and temperature resistance, widely use in chemical, metallurgical, gas and environmental protection industries
2. Tower packing-high surface area, uniform distribution fluid, high efficiency of mass transfer
3. Catalyst carrier-reduce the oxidation temperature of VOA in purification of industrial exhaus gas
4. Thermal regenerative packing-good heat capacity, saving energy 40-70%in RTO system
5. Gas combustion distributing pl ate-distribute uniformly and make the combustion complete, saving energy more than 10%
6. Refractory kiln furniture-low bulk density, good thermal efficiency
Materials: cordierite, alumina, corundum and corundum mullite
Size: dia142x152mm, dia144x125mm
Application: honeycomb ceramic exchanger is widely used to RTO, RCO, VOC and SCR and so on.

Dense Cordierite Honeycomb Ceramic Heater for Rto
Chemical & Physical Index Cordierite Densecordierite Cordierite- mullite Mullite Corundum-mullite
Chemical Composition SiO2 % 45~55 45~55 35~45 25~38 20~32
AI2O3 % 30~38 33~43 40~50 50~65 65~73
MgO % 10~15 5~13 3~13 - -
K2O+Na2O % <1.0 <1.0 <1.0 <1.0 <1.0
Fe2O3 % <1.5 <1.5 <1.5 <1.5 <1.5
Thermal Expansion Coefficient 10-6/K-1 <2 <4 <4 <5 <7
Specific Heat J/kg 830~900 850~950 850~1000 900~1050 900~1100
Working Temperature (celsius degree) <1300 <1300 <1350 <1450 <1500
PS: we also can make products at your request and actual operating condition.

Hole Qty
Hole density
Hole Diameter (mm) Wall thickness
150×150×300 5×5 0.7 27 2.4 81
150×150×300 13×13 4.8 9.9 1.5 74
150×150×300 20×20 11 6.0 1.4 64
150×150×300 25×25 18 4.9 1.00 67
150×150×300 40×40 46 3.0 0.73 64
150×150×300 43×43 53 2.79 0.67 64
150×150×300 50×50 72 2.4 0.60 61
150×150×300 59×59 100 2.1 0.43 68


More >>
