Corundum Mullite Honeycomb Ceramic Heater for Rto
You are here: Home » Products » Accumulated/Storage Filter/Substrate » Corundum Mullite Honeycomb Ceramic Heater for Rto

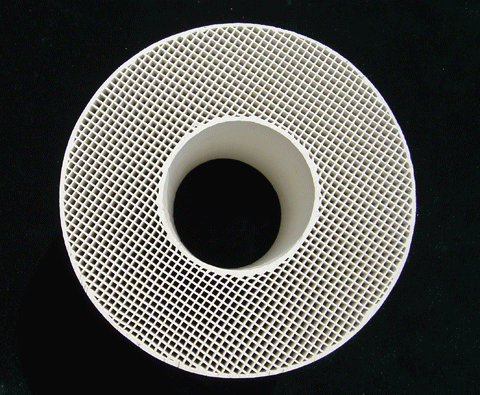

Corundum Mullite Honeycomb Ceramic Heater for Rto

Quantity:
  • 100, 000pieces/Month
  • Wooden Box and Pallet or According to Your Demand
  • L/C, T/T, Western Union
  • HCH
  • Regenerative Heat Exchanger
  • Ceramic
  • Heater
  • Plate Heat Exchanger
  • DXY
  • China
  • Cordierite/Corundum Mullte/Mullite/Silicon Oxide
  • 25holes, 40holes, 43holes, 50holes, 60holes
  • Rto
  • Round, Square, Hexagonal, Triangular
  • 100*100*100, 150*150*150, 150*150*300
  • 1320-1700

Product Description

Ceramic Honeycomb Heater Description:
Honeycomb ceramic is composed of countless equal holes. The structure of it is like honeycomb shape and it is a kind of new ceramic products. The biggest hole number of it has reached 20~40 per square centimeter, the density is 4~6 grams per cubic centimeter and the water absorption rate is above 20%.

Porous Cordierite Honeycomb Monolith
Ceramic honeycomb used for RTO application
Cordierite is a magnesium alumina silicate material, which has very low linear expansion, low coefficient of thermal expansion and excellent resistance to thermal shock. Cordierite also offers an excellent range of mechanical strength, porosity criteria, and excels in cost-effective extruded and dry-pressed forms.
Cordierite Honeycomb Monoliths are divided into two types: porous type and compact type.

Application:
Widely used in chemical industry, electric power industry, metallurgy industry, petroleum industry,electronics industry,machinery industry,etc. The development prospect is considerable.

Features:
1.High strength.
2.High temperature resistance.
3.Corrosion resistance.
4.Wear resistance.
5.Good thermal conductivity.
6.Environmentally friendly.

Corundum Mullite Honeycomb Ceramic Heater for Rto
Corundum Mullite Honeycomb Ceramic Heater for Rto
Corundum Mullite Honeycomb Ceramic Heater for Rto

Spec. Quantity of channels Wall thickness (mm) Surface area (m2/m3) Free volume (%) Average weight (min.) (kg/m3)
150*150*300 60*60 0.5 1315 70 680
150*150*300 50*50 0.7 1050 58 680
150*150*300 40*40 0.7 883 65 518
150*150*300 25*25 1.0 573 67 502

Data&Item Hight Frequency Ceramic 75% Ceramic 95% Ceramic 99% Ceramic Titanium Oxide Zirconia Mullite Comment
Content Talc 85% alumina≥75% alumina≥95% alumina≥99% Titanium Oxide≥90% Zirconia≥90% 3ALz032si02
Fring temperature(Degree C) 1350±20 1400-1450 1650-1680 1780-1800 1450±20 1550-1600 1260-1540
Proportion(g/cm) 2.8 3.2 ≥3.6 ≥3.8 ≥3.7 >6 3.25
Dielectric Strength(kv/mm) 15 13 15 15
15
Volume density
Water absorption(%) <0.02 <0.015 <0.01 <0.01 <0.01 <0.01 <0.01
Compressive Strength 560 2200 2400 3700 7200 5000

Hardness(HRA) ≥75 ≥75 ≥82 ≥88 ≥80 ≥85 65-70
Volume Resistance(cm) ≥1012 >1012 >1012 >1012 <1012 >1012 ≥1012 25Degree C
Bending Strength(MPA) 126 280 320 400 150 700 180
Thermal Expansion(*10) 6-7.5 6 6.2-8.5 6.8-8
9-10 4-4.4 25Degree C-700Degree C
Permittivity(MHZ) 6 5.5 8.5 9.5

7
Roughness(Ra)

≤0.8 ≤0.8 <0.1


Mirror Polish

<0.3 ≤0.1 ≤0.05 ≤0.03
