Ceramic Porous Honeycomb Exchanger for Heating System
You are here: Home » Products » Accumulated/Storage Filter/Substrate » Ceramic Porous Honeycomb Exchanger for Heating System

Ceramic Porous Honeycomb Exchanger for Heating System

Quantity:
  • Shanghai, China
  • 100, 000pieces/Month
  • T/T, Paypal
  • HCH
  • Cordierite/Corundum Mullte/Mullite, Silicon Oxide
  • Rto
  • 1320-1700
  • Ceramic
  • Ceramic Heater
  • Plate Heat Exchanger
  • DXY
  • Wooden Box and Pallet or According to Your Demand
  • China
  • 6909190000
  • Heater
  • Regenerative Heat Exchanger
  • Storage-Type
  • 25holes, 40holes, 43holes, 50holes, 60holes
  • 150*150*100mm, 100*100*150mm etc
  • Round, Rectangle etc

Product Description

Ceramic honeycomb heater is made of cordierite, mullite, alumina etc materials. Honeycomb ceramic is composed of countless equal holes. The structure of it is like honeycomb shape and it is a kind of new ceramic products. The biggest hole number of it has reached 20~40 per square centimeter, the density is 4~6 grams per cubic centimeter and the water absorption rate is above 20%.

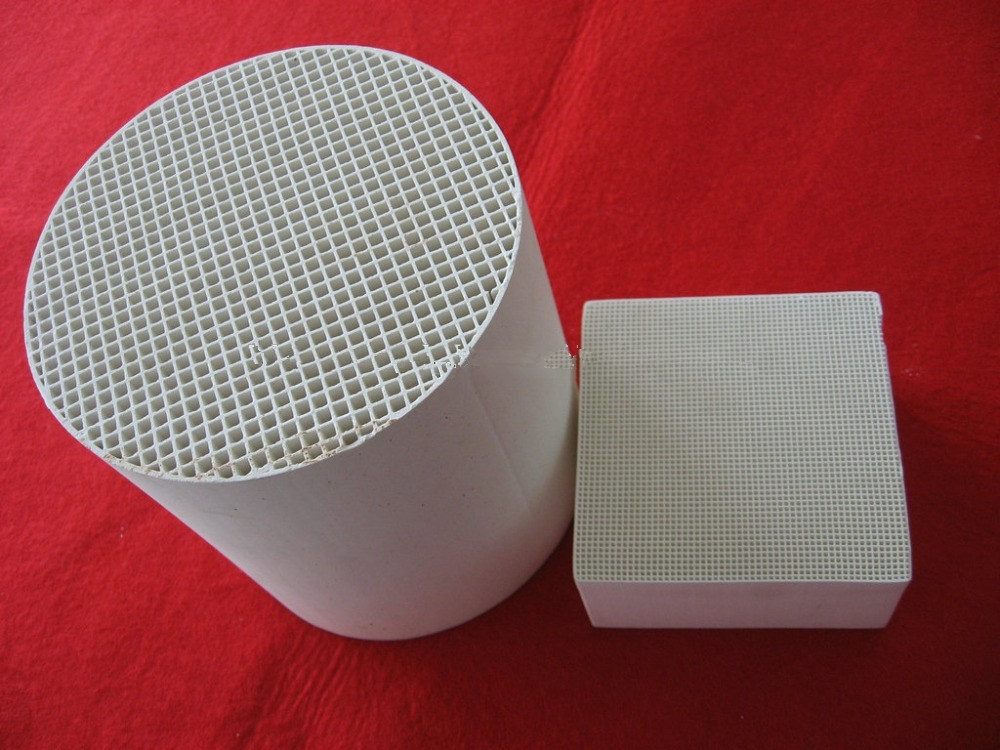

Ceramic Porous Honeycomb Exchanger for Heating System


Ceramic honeycomb heater has very low linear expansion, low coefficient of thermal expansion and excellent resistance to thermal shock. It also offers an excellent range of mechanical strength, porosity criteria, and excels in cost-effective extruded and dry-pressed forms. Cordierite Honeycomb Monoliths are divided into two types: Porous type and compact type.

Features:
*High strength
*High temperature resistance
*Corrosion resistance
*Wear resistance
*Good thermal conductivity
*Environmentally friendly

Application
Used in the petroleum chemical engineering, garbage incineration, coating and paints chartered plane, also applied in the industry waster gas and waste water processing etc.
Composition Value(%)
SiO2 25-29
Al2O3 62-67
MgO 2-4
Fe2O3 <1.2
TiO2 <3.0
K2O+Na2O +CaO <2.5
Size Channels Wall thickness (OD)(mm) Wall thickness (ID)(mm) Channel width
(mm)
Surface area (m2/m3) Void section
(%)
Bulk density
(kg/ m3)
Weight per pcs
(kg)
150×150×300 10×10 2.7 2.1 12.4 240 64 496 3.35
150×150×300 13×13 2.0 1.7 9.84 327 68.9 592 4.0
150×150×300 25×25 1.2 1.0 4.94 574 68 666 4.5
150×150×300 32×32 1.1 0.8 3.66 695 61 651 4.4
150×150×300 40×40 0.9 0.7 3.02 884 65 725 4.9
150×150×300 43×43 0.9 0.7 2.76 932 63 740 5.0
150×150×300 50×50 0.8 0.6 2.38 1082 63 770 5.2
150×150×300 60×60 0.7 0.5 1.99 1298 63 784 5.3
100×100×150 26×26 0.9 0.7 3.10 875 65 799 1.2
100×100×150 33×33 0.8 0.6 2.40 1083 63 866 1.3
