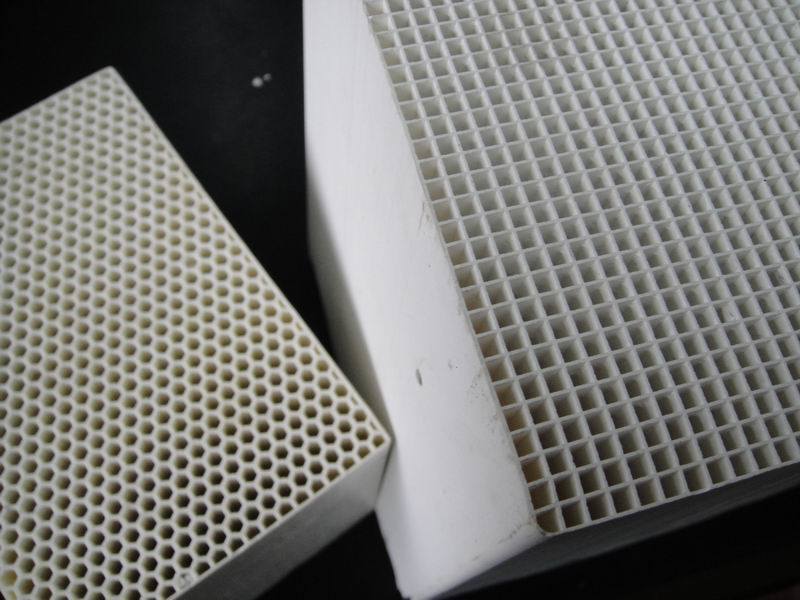

Ceramic Honeycomb Heater Ceramic Honeycomb Filter

Quantity:
  • Shanghai, China
  • 100, 000pieces/Month
  • L/C, T/T, Western Union, Paypal
  • HCH
  • Regenerative Heat Exchanger
  • Ceramic
  • Heater
  • Plate Heat Exchanger
  • DXY
  • Wooden Box and Pallet or According to Your Demand
  • China
  • 6909190000
  • Cordierite/Corundum Mullte/Mullite/Silicon Oxide
  • Rto
  • 900-1200
  • 25holes, 40holes, 43holes, 50holes, 60holes
  • Round, Square, Hexagonal, Triangular
  • 1320-1700

Product Description

Honeycomb ceramic monolith for Heat exchanger, RTO, VOC
Honeycomb Monoliths - Heat exchange media, Ceramic Heat Recovery Bed/ heat exchange beds, Thermal storage/ heat exchange elements/media, Ceramic monoliths media to save energy in steel works and metallurgy industry, Regenerative thermal oxidizers (RTO). Honeycomb monolith is the key components of the thermal storage style furnace, it is extensively used in many kinds of heater, sirocco furnace, heat treatment furnace, cracking column, roaster, melting furnace, balance heating stove and etc. This technology can save more than 40-70% of energy.

Ceramic Honeycomb Heater Ceramic Honeycomb Filter

Ceramic Honeycomb Heater Ceramic Honeycomb Filter

The corundum/mullite and cordierite/mullite complex thermal storage honeycomb ceramic developed by our company has the following notable characters: Perfect high temperature resistance, anticorrosion, perfect thermal shock stability, high mechanical strength, large thermal storage capacity, advantaging heat conduction property, energy conserving result and service life are improved greatly. At present, our products have already been approved by numerous iron and steel enterprise and exported to Japan, South Korea and Europe and America market.

Heat exchanger Honeycomb Ceramic advantages:
*low heat expansion coefficient
*large surface area, good heat stability and anticorrosion
*high temperature heat accumulation and exchange in industrial waste gas treatment

Heat exchanger Honeycomb Ceramic application:
*NOx purification system in the smoke of the thermal power plant
*The harmful gas purification system in rubbish burning
*Poison gas purification system in chemical and mining industries. The slag filter for casting production in the metallurgical industry. The catalyst substrate stuffing material for chemical industry colums and Contact combustion.
Index Metric Unit Value British Unit Value
Material Density g/cm3 2.3-2.6 Lb/ft3 151
Average Linear Expansion (20-800) 10-6/k-1 <2.5
Special Heat Capacity KJ/Kg 900-1200
Heat Conductivity W/MK 1.8-3.0
Maximum Application Temp. ° C 1350 2450
Acid resist strength wt.loss % <4
Water Absorption % <5
(mm) Quantity of channels Wall thickness(mm) Channel Width(mm) Surface area(m2/m3) Void section (%) Packaging density(kg/m3) Weight per piece(kg)
150*150*300 25*25 1.0 4.96 580 68 696 4.7
150*150*300 40*40 0.7 3.03 891 65 814 5.5
150*150*300 50*50 0.6 2.39 1090 63 903 6.1
150*150*300 60*60 0.5 1.99 1303 63 932 6.3
150*100*100 40*40 1 2.5 784 49 799 1.2
150*100*100 33*33 1.1 3.0 691 52 750 1.13
150*100*100 20*20 2.0 5.0 392 49 692 1.04
100*100*100 40*40 1.0 2.5 784 49 810 0.81
100*100*100 33*33 1.1 3.0 691 52 750 0.75
100*100*100 20*20 2.0 5.0 392 49 680 0.68
