Ceramic Honeycomb Heat Exchanger for Rto

Heat storage honeycomb ceramic substrate (also called ceramic honeycomb heater) is new developed ceramic part. As its features of corrosion resistances, large specific surface area, small heat resistance, good thermal conductivity and excellent thermal-shock resistance, fast heat exchanging and energy saving. It is as the heat exchange media is the key part for heat storing HTAC ( High Temperature Air Combustion) technology. It is the best choice for RTO, heat exchanger and other environmental protection and energy saving products.
Availability:
Quantity:
sharethis sharing button
  • 100, 000pieces/Month

  • L/C, T/T, Western Union, Paypal

  • Shanghai, China

Product Description

Heat storage honeycomb ceramic substrate (also called ceramic honeycomb heater) is new developed ceramic part. As its features of corrosion resistances, large specific surface area, small heat resistance, good thermal conductivity and excellent thermal-shock resistance, fast heat exchanging and energy saving. It is as the heat exchange media is the key part for heat storing HTAC ( High Temperature Air Combustion) technology. It is the best choice for RTO, heat exchanger and other environmental protection and energy saving products.

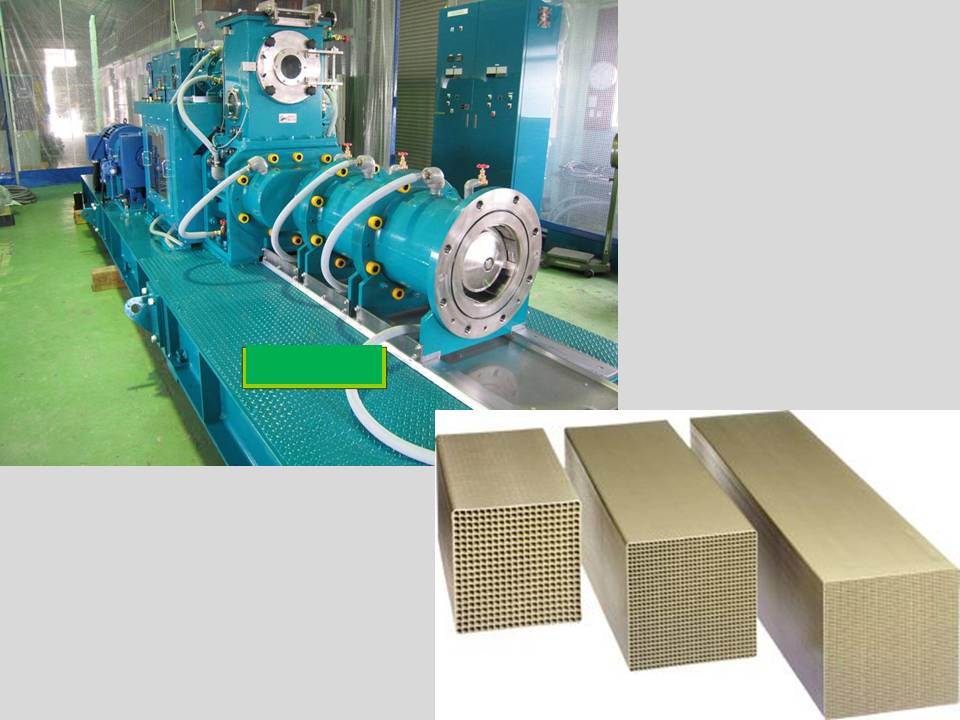

Ceramic Honeycomb Heat Exchanger for Rto

Materials:
Mullite, Cordierite ceramics and zircon chrome corundum, etc

Application:
As heat exchange media, ceramic honeycomb materials are mainly utilized in heat recovery unit of RTO's instead of ceramic saddles

Shapes and sizes:
*The shapes include as follows: Round, square, triangular, sector, or to be customized etc
*The size include below: Standard type 150mm*150mm*300mm, 100mm*100mm*100mm, 100mm*100mm*150mm, other size can be manufactured as per customers' requests

Advantages:
Ceramic honeycomb heater is also called heat transfer agent: It can save 12% of energy in heat exchange. Refractory stove: Low mass/volume, fast heat conduction

Item Unit Porous Cordierite Dense Cordierite Mullite Heat accumulator Mullite corundum heat
Specific weight g/cm ³ 1.75-1.9 2.4-2.48 2.1-2.5 2.5-2.6
Lo-efficient of heated expanding
(20-1000 ° C )
1-2*10 -6/ ° C 2.5-5.0 1.3-3.5 5.5-6.5 5.5-6.0
Specific heat J/Kg.K 700-800 800-1200 850-1050 800-900
Thermal Conductivity W/mk 1.2-1.5 1.5-2.5 1.5-2.0 1.5-2.5
Thermal shock K Min 300 Min 250 Min 350 Min 350
Soften temperature ° C 1300 1300 1500 1600
Rotundity shape Ellipse shape
Specificationmm Number of channels (holes /square inch) Specification (mm) Number of channels (holes /square inch)
Φ83×85 400 T146.8×77×86.4 400
Φ144×152.4 400 T120.6×80×152.4 400
Φ100×100 400 T169.7×80.7×76.2 400
Φ130×130 400 T144.8×81.3×152.4 400
Φ118×150 400 T144.8×81×76.2 400
Φ103×100 400 T169.7×80.7×101.6 400
Φ150×75 400 T144.8×81.3×100 300
Φ83×125 400 T127×63.5×107 300
Φ150×150 300 T144.8×81.3×70 300
Φ120×100 300 T144.8×81.3×150 300
Φ101.6×100 300 Race track shape
Φ94×100 300 P120.65× 80.01×76.2 400
Φ85×70 300 P120.65× 80.01× 76.2 200
Φ93×76 200 P144×68×150 400
Φ118×76 200 P125×80×100 400
