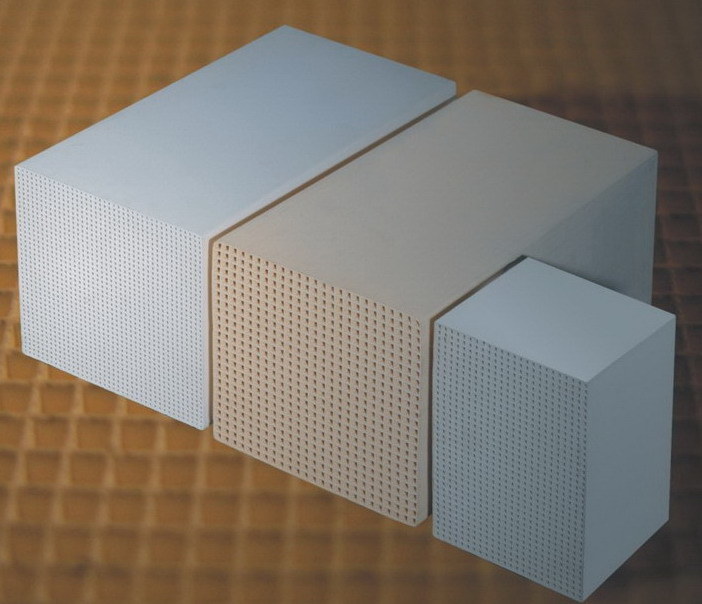

150*100*100mm Cordierite Ceramic Honeycomb Gas Heater

Availability:
Quantity:
sharethis sharing button
  • 100, 000pieces/Month

  • L/C, T/T, Western Union, Paypal

  • Shanghai, China

Product Description

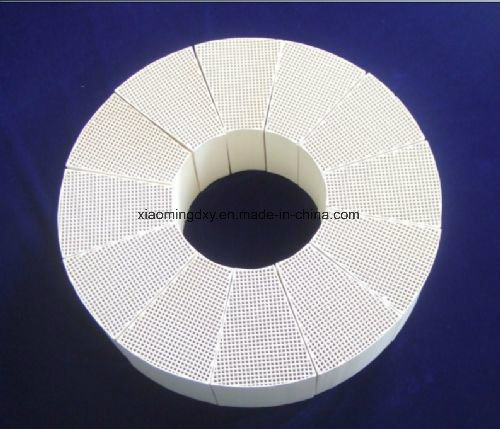

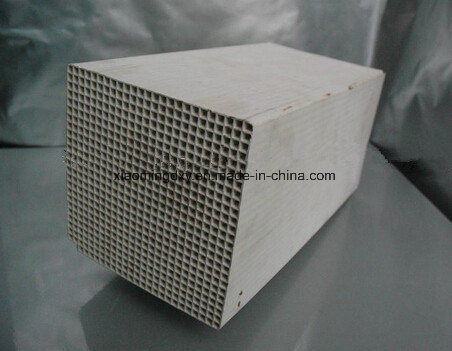

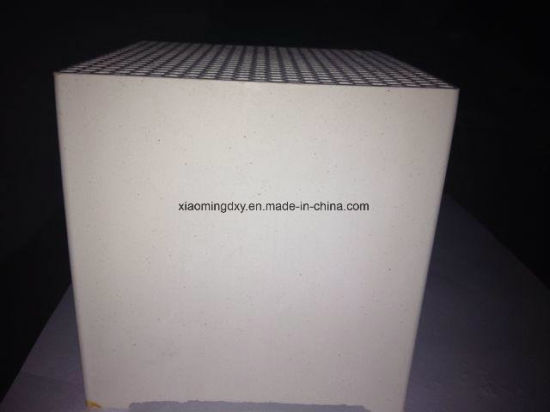

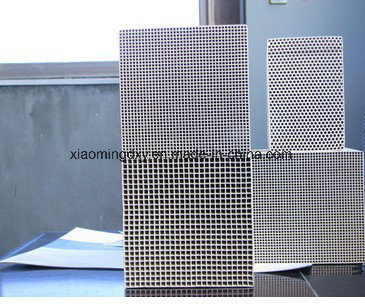

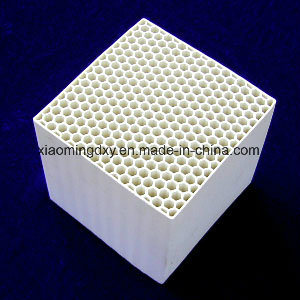

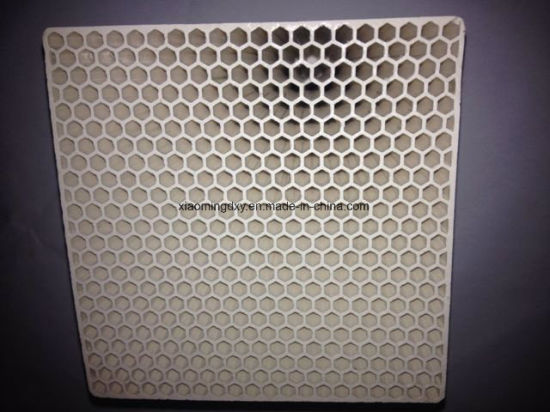

Honeycomb ceramic heater is composed of countless equal holes. The structure of it is like honeycomb shape and it is a kind of new ceramic products. The biggest hole number of it has reached 20~40 per square centimeter, the density is 4~6 grams per cubic centimeter and the water absorption rate is above 20%. The honeycomb ceramic as heat exchange media is the key part for heat storage HTAC(High Temperature Air Combustion) technology, which has been widely applied in all kinds of pushing-steel heating furnace, RTO(Regenerative Thermal Oxidation), stepping heating furnace, heat treatment furnace, forging furnace, dissolving furnace, steel wrapping/middle wrapping baking apparatus, soaking pit, radiation tap incendiary apparatus, covering furnace, high temperature hot-blast stove in metallurgical machine building and all kinds of ceramic cellar stove, glass cellar stove in building materials, and all kinds of tap heating stove, splitting stove, other industrial stove cellar, too.

150*100*100mm Cordierite Ceramic Honeycomb Gas Heater

Honeycomb ceramics as heat storage body, by the advantage of large specific surface area, small heat resistance, good thermal conductivity, excellent thermal shock resistance, realize quickly exchanging heat; Reducing energy in the strict sense (up to 97% of true thermal energy can be recovery and also it can absorb NOx more than 40%).

Features:
*High strength
*High temperature resistance
*Corrosion resistance
*Wear resistance
*Good thermal conductivity
*Environmentally friendly

Heat exchanger Honeycomb Ceramic Advantages:
*Low heat expansion coefficient
*Llarge surface area, good heat stability and anticorrosion
*High temperature heat accumulation and exchange in industrial waste gas treatment

Heat exchanger Honeycomb Ceramic Applications:
*NOx purification system in the smoke of the thermal power plant
*The harmful gas purification system in rubbish burning
*Poison gas purification system in chemical and mining industries. The slag filter for casting production in the metallurgical industry. The catalyst substrate stuffing material for chemical industry colums and Contact combustion.

Data&Item Hight Frequency Ceramic 75% Ceramic 95%  Ceramic 99% Ceramic Titanium Oxide Zirconia Mullite Comment
Content Talc 85% alumina ≥ 75% alumina ≥ 95% alumina ≥ 99% Titanium Oxide ≥ 90% Zirconia ≥ 90% 3ALz032si02
Fring temperature( ° C) 1350 ± 20 1400-1450 1650-1680 1780-1800 1450 ± 20 1550-1600 1260-1540
Proportion(g/cm) 2.8 3.2 ≥ 3.6 ≥ 3.8 ≥ 3.7 >6 3.25
Dielectric Strength(kv/mm) 15 13 15 15
15
Volume density
Water absorption(%) <0.02 <0.015 <0.01 <0.01 <0.01 <0.01 <0.01
Compressive Strength 560 2200 2400 3700 7200 5000

Hardness(HRA) ≥ 75 ≥ 75 ≥ 82 ≥ 88 ≥ 80 ≥ 85 65-70
Volume Resistance(cm) ≥ 1012 >1012 >1012 >1012 <1012 >1012 ≥ 1012 25 ° C
Bending Strength(MPA) 126 280 320 400 150 700 180
Thermal Expansion(*10) 6-7.5 6 6.2-8.5 6.8-8
9-10 4-4.4 25 ° C-700 ° C
Permittivity(MHZ) 6 5.5 8.5 9.5

7
Roughness(Ra)

≤ 0.8 ≤ 0.8 <0.1


Mirror Polish

<0.3 ≤ 0.1 ≤ 0.05 ≤ 0.03
Dimension (mm) Quantity of cells Wall thickness (mm) Width of cell (mm) Surface area (m2/m3) Void section (%) Weight per piece (kg)
150*150*300 25*25 1 4.96 580 68 4.7
150*150*300 40*40 0.7 3.03 891 65 5.5
150*150*300 50*50 0.6 2.39 1090 63 6.1
150*150*300 60*60 0.5 1.99 1303 63 6.3
150*100*100 40*40 1 2.5 784 49 1.2
150*100*100 33*33 1.1 3 691 52 1.13
150*100*100 20*20 2 5 392 49 1.04
100*100*100 40*40 1 2.5 784 49 0.81
100*100*100 33*33 1.1 3 691 52 0.75
100*100*100 20*20 2 5 392 49 0.68
