Cordierite Ceramic Honeycomb for Diesel Particulate Filter
You are here: Home » Products » Diesel Particulate Filter » Cordierite Diesel Particulate Filter » Cordierite Ceramic Honeycomb for Diesel Particulate Filter

Cordierite Ceramic Honeycomb for Diesel Particulate Filter

Quantity:
sharethis sharing button
  • Shanghai, China

  • 100, 000pieces/Month

  • L/C, T/T, Western Union, Paypal

  • DPF

  • 100-600cpsi

  • as Catalyst Used in Diesel Engine

  • DXY

  • Wooden Box/Carton Box with Pallet

  • China

  • 84213990

  • Ceramic

  • Euro IV

  • ISO9001, TS16949

  • Catalytic Converter

  • Cordierite, Sic

  • Oval, Round, Racetrack

Product Description

Cordierite Diesel Particulate Filter is mainly used in the diesel engine tail gas purifying system to solve the air pollution problem.

Particulate matter trap systems by offering:
Low thermal expansion
High filter specific surface area
Low pressure drop
Long-term durability performance
High soot removal: >95%

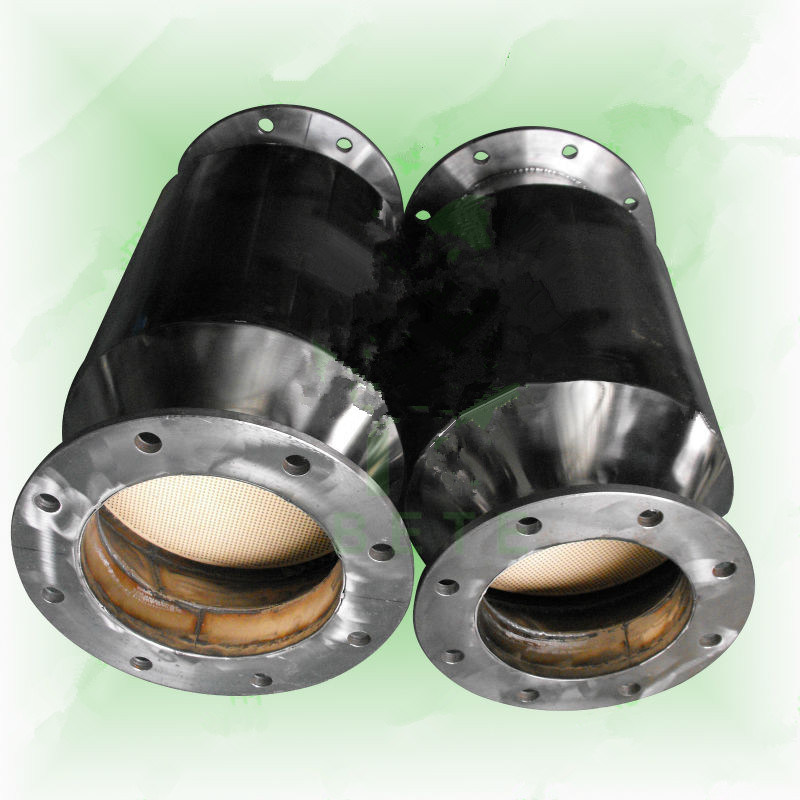

Cordierite Ceramic Honeycomb for Diesel Particulate Filter

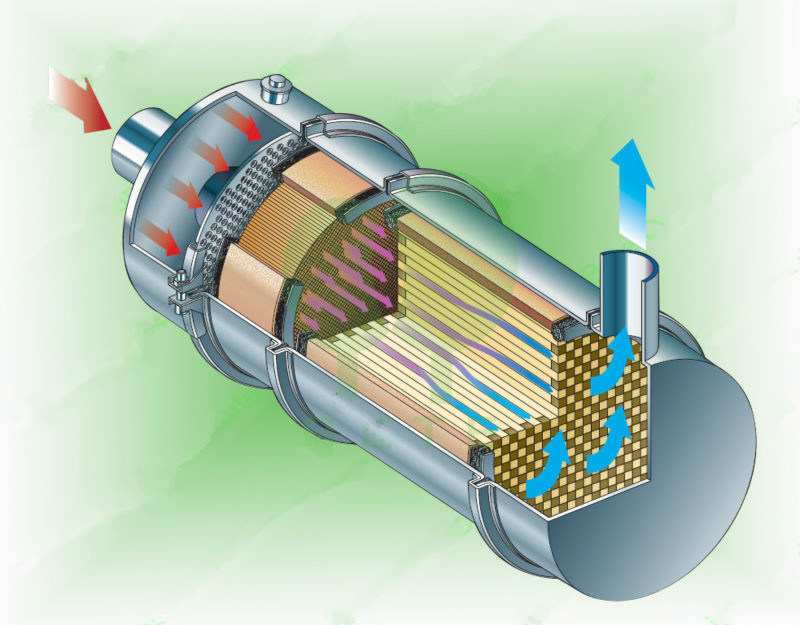

Diesel particulate filter is used to remove black smoke (PM e. G.: Hydrocarbons, soot) from diesel engine exhaust, being a great contribution to the environment because of dealing with the exhaust from diesel engines. The diesel particulate filter can be used in different industrial fields such as environment protection, petrol-chemistry, medicine manufacture, and metallurgy etc. It has good investment return and broad prospect. The system installed DPF (Diesel Particulate Filter) been examined for urban bus, forklift, truck & mining constructing equipment. Diesel Particulate Filter adopts structure of honeycomb. It sets up independent opening and blocking up passages in both ends and the waste gas enters from one open end, then goes through the porous beehive wall, and finally discharges from adjoining passage. The carbon particulates are left over on passage wall because they are too big to pass through wall hole and won't be discharged to air.

Cordierite Ceramic Honeycomb for Diesel Particulate Filter

DPF is a device designed to remove ash or soot from the exhaust gas of a diesel engine. With reference to the technical requirements of Corning Incorporated, after several years of research and development, our company improved the existing technical equipment. We can produce diesel particulate filters with max. Diameter up to 330mm, with average pore diameter of 10~12μ M, and porosity close to that of the world's advanced level. Diesel particulate filters with " large diameter, multi-pores, high porosity".

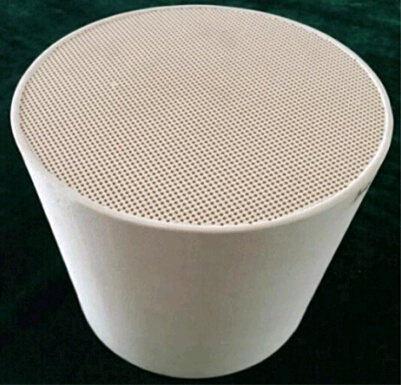

Cordierite Ceramic Honeycomb for Diesel Particulate Filter

Advantages:
*Low thermal expansion coefficient
*High porosity of hole on the wall, good liquidity and uniform distribution.
*High temperature resistance, chemical corrosion resistance, thermal shock resistance and thermal shock resistance is strong.
*The pressure drop is small.
*Cold start performance is good, low light-off temperature, high conversion efficiency.
Item Technical index
Chemical Composition SiO2 50.9 ± 1%
AL2O3 35.2 ± 1%
MgO 13.9 ± 1%
Physical Properties Compression Strength in normal temperature ≥ 10Mpa
Thermal expansion coefficient ≤ 1.2 × 10-6 / ° C
Wall thickness of hole density of 100 hole/ in2 0.42-0.50mm
Wall thickness of hole density of 200 hole/ in2 0.32-0.40mm
Apparent porosity ≥ 50%
Average hole diameter 10-15 micron
Highest Working Temperature 1400 ° C
Soot-filtration efficiency ≥ 95%
Shape Hole density (hole/in2) Size (mm) Size (inch)
Round 100/200 CPSI Φ 127 × 152.4 5 × 6
Round 100/200 CPSI Φ 144 × 150 5.66 × 5.9
Round 100/200 CPSI Φ 144 × 152.4 5.66 × 6
Round 100/200 CPSI Φ 144 × 254 5.66 × 10
Round 100/200 CPSI Φ 150 × 150 5.9 × 5.9
Round 100/200 CPSI Φ 190 × 200 7.48 × 7.87
Round 100/200 CPSI Φ 190 × 203 7.48 × 8
Round 100/200 CPSI Φ 190 × 305 7.48 × 12
Round 100/200 CPSI Φ 228 × 305 8.97 × 12
Round 100/200 CPSI Φ 240 × 76.2 9.45 × 3
Round 100/200 CPSI Φ 240 × 100 9.45 × 3.94
Round 100/200 CPSI Φ 240 × 240 9.45 × 9.45
Round 100/200 CPSI Φ 240 × 305 9.45 × 12
Round 100/200 CPSI Φ 260 × 305 10.23 × 12
Round 100/200 CPSI Φ 267 × 305 10.50 × 12
Round 100/200 CPSI Φ 286 × 100 11.26 × 3.94
Round 100/200 CPSI Φ 286 × 267 11.26 × 10.50
Round 100/200 CPSI Φ 286 × 305 11.26 × 12
Round 100/200 CPSI Φ 286 × 355 11.26 × 13.97
Round 100/200 CPSI Φ 286 × 381 11.26 × 15
Round 100/200 CPSI Φ 305 × 330 12 × 13
Race track 100 CPSI Φ 188 × 103 × 145 7.4 × 4.05 × 5.7
Assemble track 100 CPSI Φ 374 × 270 × 317 14.72 × 10.62 × 12.48
