DPF Diesel Particulate Filter for Diesel Engine Exhaust Emission System

DPF filter is a device designed to remove ash or soot from the exhaust gas of a diesel engine. With reference to the technical requirements of Corning Incorporated, after several years of research and development, our company improved the existing technical equipment. We can produce diesel particulate filters with max. Diameter up to 330 mm, with average pore diameter of 10 ~ 12μ M, and porosity close to that of the world's advanced level.
Availability:
Quantity:
sharethis sharing button
  • 100, 000pieces/Month

  • L/C, T/T, Western Union, Paypal

  • Shanghai, China

Product Description

Honeycomb ceramic substrate is made of cordierite, and it is used for car catalytic converter. We can supply both ceramic element coated with noble metals of Pt, Pd, Rh and ceramic element without noble metals. Diesel Particulate Filter adopts structure of honeycomb. It sets up independent opening and blocking up passages in both ends and the waste gas enters from one open end, then goes through the porous beehive wall, and finally discharges from adjoining passage. The carbon particulates are left over on passage wall because they are too big to pass through wall hole and won't be discharged to air.

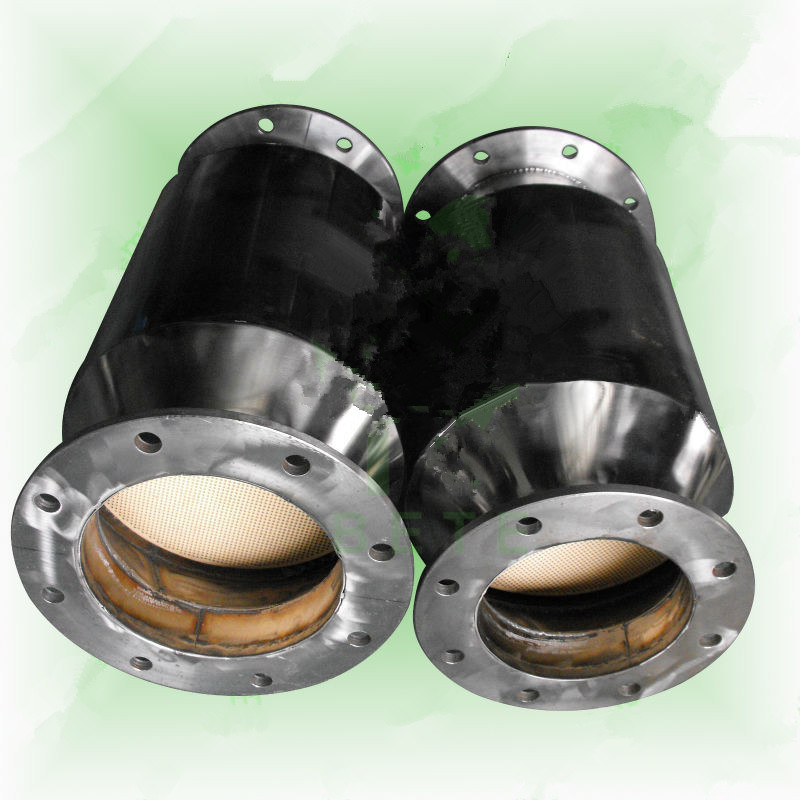

DPF Diesel Particulate Filter for Diesel Engine Exhaust Emission System

DPF filter is a device designed to remove ash or soot from the exhaust gas of a diesel engine. With reference to the technical requirements of Corning Incorporated, after several years of research and development, our company improved the existing technical equipment. We can produce diesel particulate filters with max. Diameter up to 330mm, with average pore diameter of 10 ~ 12μ M, and porosity close to that of the world's advanced level.

For diesel engine tail gas purifying system, we manufacture catalyzed diesel particulate filters for removal of PM (soot), HC, CO and regeneration of soot. We can provide silicon carbide or cordierite diesel particulate filter, both catalyzed and un-catalyzed. We can according to engine types, gas analysis and emission requirements to design the catalyst project. We can also provide diesel oxidation catalyst (DOC) and three-way catalyst for all engine types.

*The honeycomb ceramic substrate have a very competive substrates.
*We can produce 100CPSI, 200CPSI, 400CPSI, 600CPSI can be in the shape of round, racetrack and ovral.
*Specification can be customerlized, as the the customers requirement.
*Can be coated with the catalyst and the noble metal as the customers emission standards: Euro II, EuroIII and EuroIV etc.

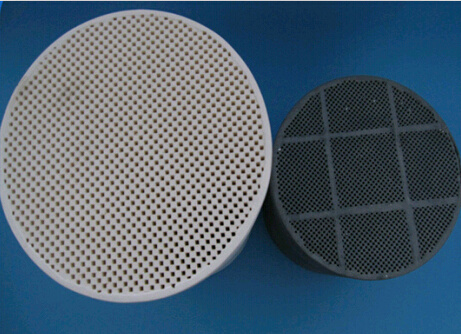

DPF Diesel Particulate Filter for Diesel Engine Exhaust Emission System

Characteristics:
*Large and compact area per unit volume
*Small pressure loss and excellent capturing performance
*Excellent heat resistance and heat shock resistance

Performance: Bore wall is thin, the high specific surface area, high strength, low thermal expansion coefficient, good thermal shock resistance and thermal shock resistance, have a good match to the active ingredient and various catalyst
Use: Automobile exhaust purification catalyst carrier
Scope: Automobile manufacturing
Suitable For: Automotive vehicle exhaust purifiers (European standard) supporting

DPF Diesel Particulate Filter for Diesel Engine Exhaust Emission System

Property (uncatalyzed) 100/17 200/12
Cell density cpsi 100 200
cpscm 15.5 31.0
Wall thickness inch 0.017 0.012
mm 0.432 0.305
Open frontal area (OFA), % 34.5 34.5
Geometric surface area (GSA) Inch 2 33.3 47.0
m 2 /l 1.31 1.85
Hydraulic diameter Inch 0.083 0.059
mm 2.11 1.49
Modulus of rupture (psi/cpscm) 350 300
Porosity (%) 48 48
Coefficient of thermal expansion
10 2  cm/cm/ (20-800) --maximum average
5 5
Mean pore size (micron) 13 13
Melting temperature () 1460 1460
Shape Hole density (hole/in2) Size (mm) Size (inch)
Round 100/200 CPSI Φ 127 × 152.4 5 × 6
Round 100/200 CPSI Φ 144 × 150 5.66 × 5.9
Round 100/200 CPSI Φ 144 × 152.4 5.66 × 6
Round 100/200 CPSI Φ 144 × 254 5.66 × 10
Round 100/200 CPSI Φ 150 × 150 5.9 × 5.9
Round 100/200 CPSI Φ 190 × 200 7.48 × 7.87
Round 100/200 CPSI Φ 190 × 203 7.48 × 8
Round 100/200 CPSI Φ 190 × 305 7.48 × 12
Round 100/200 CPSI Φ 228 × 305 8.97 × 12
Round 100/200 CPSI Φ 240 × 76.2 9.45 × 3
Round 100/200 CPSI Φ 240 × 100 9.45 × 3.94
Round 100/200 CPSI Φ 240 × 240 9.45 × 9.45
Round 100/200 CPSI Φ 240 × 305 9.45 × 12
Round 100/200 CPSI Φ 260 × 305 10.23 × 12
Round 100/200 CPSI Φ 267 × 305 10.50 × 12
Round 100/200 CPSI Φ 286 × 100 11.26 × 3.94
Round 100/200 CPSI Φ 286 × 267 11.26 × 10.50
Round 100/200 CPSI Φ 286 × 305 11.26 × 12
Round 100/200 CPSI Φ 286 × 355 11.26 × 13.97
Round 100/200 CPSI Φ 286 × 381 11.26 × 15
Round 100/200 CPSI Φ 305 × 330 12 × 13
Race track 100 CPSI Φ 188 × 103 × 145 7.4 × 4.05 × 5.7
Assemble track 100 CPSI Φ 374 × 270 × 317 14.72 × 10.62 × 12.48
