Ceramic Honeycomb Slice
You are here: Home » Products » Foam Ceramic Filter » Ceramic Honeycomb Filter » Ceramic Honeycomb Slice

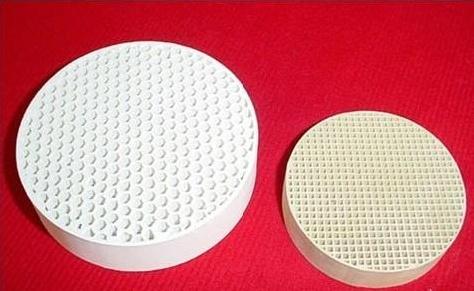

Ceramic Honeycomb Slice

Quantity:
  • 100, 000pieces/Month
  • Wooden Box, Carton Box with Pallet
  • L/C, T/T, D/P, Western Union
  • CHF
  • Square, Circular, Triangular, Hexagonal, etc
  • 100cpsi, 200cpsi, 300cpsi, etc
  • Steel Iron Alloy Casting
  • DXY
  • China
  • 1580< Refractoriness< 1770
  • Long Time Materials
  • Refractory Material
  • Square, Circular, Triangular, etc
  • Mullite, Cordierite, High Alumina, etc
  • 50*50, 40*40, 65*65, 50*75, etc

Product Description

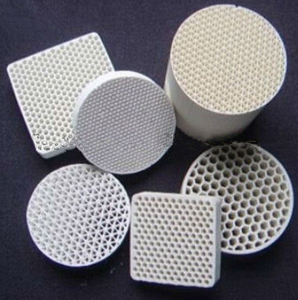

Ceramic filter is widely used in foundry industries of steel, iron, aluminum and copper etc. It is made of cordierite-mullite, and designed with parallel channels and with high porosity. It has the features of strong mechanical strength, good thermal shock performance and fast casting filling time. The utilization of ceramic filter can remarkably increase the casting quality. With unique high-density straight-pore honeycomb structure, excellent thermal shock resistance, high strength and big specific surface area.

Ceramic honeycomb filter is used in filtering molten metal, the working temperature will up to 1450 c. Ceramic filter specifically for filtering molten metal, such as Gray iron, Cast iron, copper, aluminum, alloys, etc. It ensures the metal liquid flowing at stable speed and reduce the vortex, and remove the metal impurity, refractory scrap, solid refractory alloy and sinter in the molten metal liquid. It obviously improves metal structure and appearance quality, reduce the defective index of the casting, prolong the casting working life and reduce the casting cost.

Features:
*Purifying the metal liquid, absorbing the oxide and filtering the non-metal impurities
*Making the metal liquid flowing at stable speed, reducing the vortex and reducing the bubbles in the cast part
*Equalizing the phase structure and prolonging the tools lifetime
*Improving the cast part surface performance and improving the density of the cast part

Application: Apply to iron, copper, steel, stainless steel foundry

Material: Cordierite and mullite, cordierite/mullite, mullite/zirconia, high aluminum, silicon carbide and etc
Material Applied Metal Performance
Medium aluminum-Mullite Ferroalloy High deslagging performance
High aluminum-Mullite low carbon steel For high temperature
(C>1600)°C
Alumina, Cordierite Aluminum, Iron, Copper,
Zinc etc.
Good corrosion resistance








Size(mm) Cell Diameter (mm) Number of hole
(PCS)
Cell-opening ratio (%) Effective filter area
40 × 40 × 10 1.44 × 1.44 484 62 1200
40 × 40 × 12 2.0 × 2.0 225 56 1200
50 × 50 × 12.5 2.0 × 2.0 400 64 1960
55 × 55 × 12.5 1.15 × 1.15 1369 59 2310
55 × 55 × 12.5 2.2 × 2.2 441 70 2310
60 × 60 × 20 2.2 × 2.2 400 54 2820
66 × 66 × 12.5 1.24 × 1.24 1681 60 3560
66 × 66 × 12.5 1.44 × 1.44 1225 59 3560
66 × 66 × 12.5 2.1 × 2.1 576 59 3560
75 × 75 × 15 2.2 × 2.2 676 59 4650
81 × 81 × 12.5 1.44 × 1.44 1932 61 5510
100 × 50 × 20 1.6 × 1.6 1200 62 4100
100 × 100 × 20 2.5 × 2.5 961 61 8500
150 × 100 × 22 2.5 × 2.5 1426 59 13250
150 × 150 × 22 3.0 × 3.0 1296 52 19600
