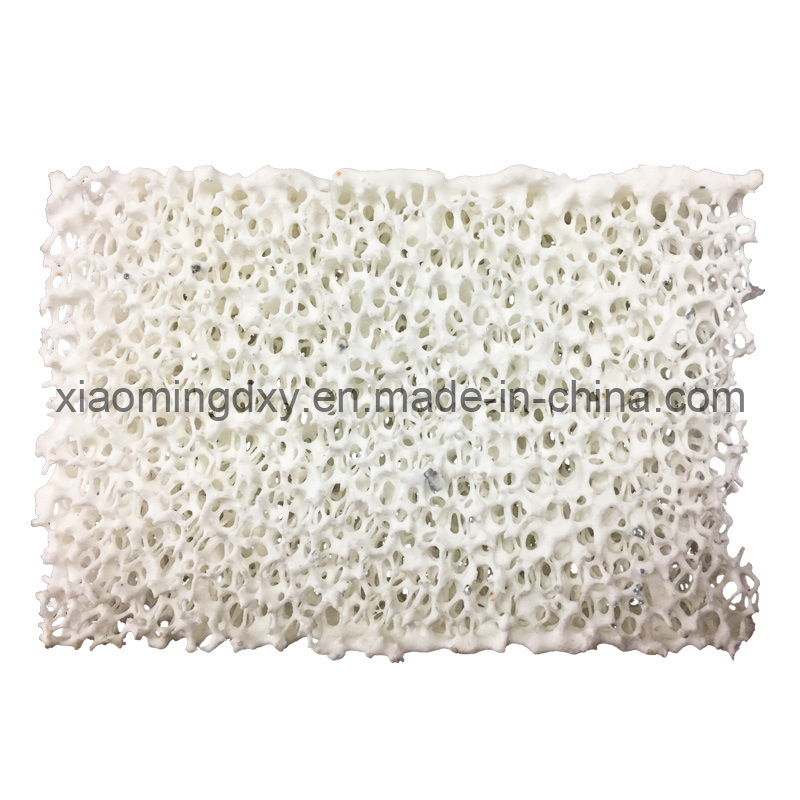

Ceramic Foam Filter Aluminum Filter for Casting and Foundry
You are here: Home » Products » Foam Ceramic Filter » Ceramic Honeycomb Filter » Ceramic Foam Filter Aluminum Filter for Casting and Foundry


Ceramic Foam Filter Aluminum Filter for Casting and Foundry

  • Shanghai, China

  • 100, 000pieces/Month

  • L/C, T/T, D/P, Western Union, Paypal

  • CFA

  • 10-60ppi

  • White

  • DXY

  • Wooden Box, Carton Box with Pallet

  • 50*50, 40*40, 65*65, 50*75, etc

  • China

  • 1580< Refractoriness< 1770

  • Long Time Materials

  • Refractory Material

  • Square, Circular, Triangular, etc

  • Mullite, Cordierite, High Alumina, etc

  • Square, Circular, Triangular, Hexagonal, etc

Product Description

Ceramic Honeycomb Filter is applied to metal liqiud filtration with high achievable surface areas, low thermal expansion, excellent thermal shock resistance and high compressive strength. Ceramic Honeycomb Filter is kind of structural ceramics, with insulation resistance, voltage resistance, high strength, good thermal conductivity, dielectric loss, stable electrical performance characteristics. It is used in electronic ceramic substrates, ceramic electrical insulation, vacuum devices, devices porcelain, spark plugs and other products.

Ceramic honeycomb Filter for the metal melting now is extensively applied to the metallurgic plants of casting/foundry, for example, steel, iron, copper and aluminum, etc. Because of its high mechanical intensity and heat-resistance, it is used to get rid of the metal impurity, refractory scrap, solid refractory alloy, sinter, in the molten metal liquid when casting the products, so as to reduce the air vent of casting, improve the quality of casting and also reduce the casting cost.

*Purifying the metal liquid, absorbing the oxide and filtering the non-metal impurities
*Making the metal liquid flowing at stable speed, reducing the vortex and reducing the bubbles in the cast part
*Equalizing the phase structure and prolonging the tools lifetime
*Improving the cast part surface performance and improving the density of the cast part
Item Value Test Method
Chemical Composition (%) Al2O3 ≥90% Chemical titration
SiO2 ≤8% Gravimetric Method
Other ≤2% Chemical Titration
Compressive Strength (Mpa) A axis ≥2.2 Universal Material Testing Machine
B axis ≥2.5
C axis ≥0.18
Water Absorption (%) 18.5±2 Gravimetric Method
Softening Temperature (celsius degree) ≥1380 High-temperature Electric Resistance Furnace
Thermal Coefficient of Expansion (room temperature ~800celsius degree) (cm/cm/celsius degree) ≤5.7x10-6 Expansion Indicator NETZSCH DIL 402PC
Thermal Shock Resistance (room temperature ~650celsius degree) 650celsius degree 20 minutes/cycle, five cycles no cracking Air Cooling

Ceramic Foam Filter Aluminum Filter for Casting and Foundry
