Alumina/Mullite/Cordierite Ceramic Honeycomb Filter for Casting
You are here: Home » Products » Foam Ceramic Filter » Ceramic Honeycomb Filter » Alumina/Mullite/Cordierite Ceramic Honeycomb Filter for Casting

loading

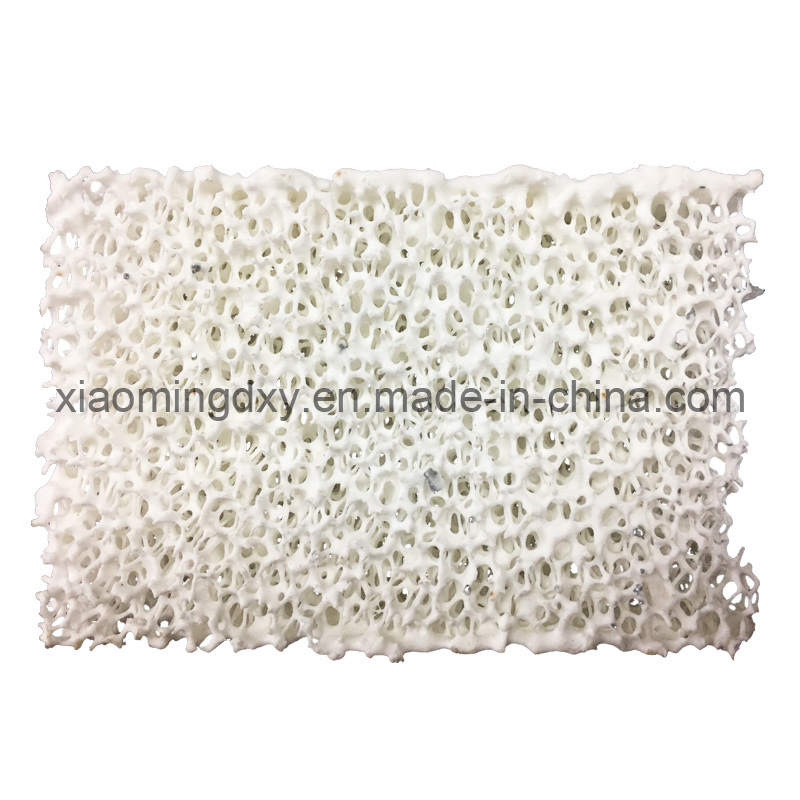

Alumina/Mullite/Cordierite Ceramic Honeycomb Filter for Casting

Quantity:
sharethis sharing button
  • Shanghai, China

  • 100, 000pieces/Month

  • L/C, T/T, D/P, Western Union, Paypal

  • CHF

  • 100cpsi, 200cpsi, 300cpsi, etc

  • DXY

  • Wooden Box, Carton Box with Pallet

  • 50*50, 40*40, 65*65, 50*75, etc

  • China

  • Refractoriness<1200

  • Long Time Materials

  • Refractory Material

  • Rectangle, Round, Square

  • Alumina, Sic,

  • Square, Circular, Triangular, Hexagonal, etc

Product Description

Ceramic honeycomb filter is able to get rid of the metal impurity, refractory scrap, solid refractory alloy, sinter and molten metal liquid when casting products, reduce the air vent of castings, raise the casting quality, and reduce the cost.

Material: Cordierite and mullite, cordierite/mullite, mullite/zirconia, high aluminum, silicon carbide, etc. It is widely used in the metallurgy plant of casting, foundry of steel, iron, copper and aluminum.
The various sizes will meet your requirements.

Square type: 40X40X12.5mm, 50X50X12.5mm, 60X60X12.5mm, 70X70X12.5mm.

Round type: Dia. 40mm, Dia. 50mm, Dia. 60mm, Dia. 70mm, Dia. 80mm, Dia. 100mm.

The advantages of honeycomb ceramic filter as follows:
Geometrical shape.
High dimensional accuracy.
Good mechanical and handling properties.
Maximum service temperature 1450° C, it is applied to grey iron, ductile iron and malleable iron.
Grey iron requires cell diameters of less than or equal to 2 mm, spheroidal graphite iron requires cell diameters of 2 mm and greater.
Item

material
Al2O3
(%)
Hole type Milli hole(μm) Coefficient of Thermal Expansion (×10-6/Degree C) Softening temperature
(Degree C)
Compressive Strength (MPa)
Cordierite 34 Round, square and delthyrium 2~3 ≤1.6 1390 ≥12
Mullite 62-64 2~3 ≤5.0 1600 ≥15
Corundum-Mullite 73-75 2~3 ≤6.0 1700 ≥15
Size(mm) Cell Diameter (mm) Number of hole
(PCS)
Cell-opening ratio (%) Effective filter area
40×40×10 1.44×1.44 484 62 1200
40×40×12 2.0×2.0 225 56 1200
50×50×12.5 2.0×2.0 400 64 1960
55×55×12.5 1.15×1.15 1369 59 2310
55×55×12.5 2.2×2.2 441 70 2310
60×60×20 2.2×2.2 400 54 2820
66×66×12.5 1.24×1.24 1681 60 3560
66×66×12.5 1.44×1.44 1225 59 3560
66×66×12.5 2.1×2.1 576 59 3560
75×75×15 2.2×2.2 676 59 4650
81×81×12.5 1.44×1.44 1932 61 5510
100×50×20 1.6×1.6 1200 62 4100
100×100×20 2.5×2.5 961 61 8500
150×100×22 2.5×2.5 1426 59 13250
150×150×22 3.0×3.0 1296 52 19600
Alumina/Mullite/Cordierite Ceramic Honeycomb Filter for Casting
