Alumina Filter Ceramic Foam for Precision Casting Filter
You are here: Home » Products » Foam Ceramic Filter » Al2O3 Ceramic Foam Filter » Alumina Filter Ceramic Foam for Precision Casting Filter

loading

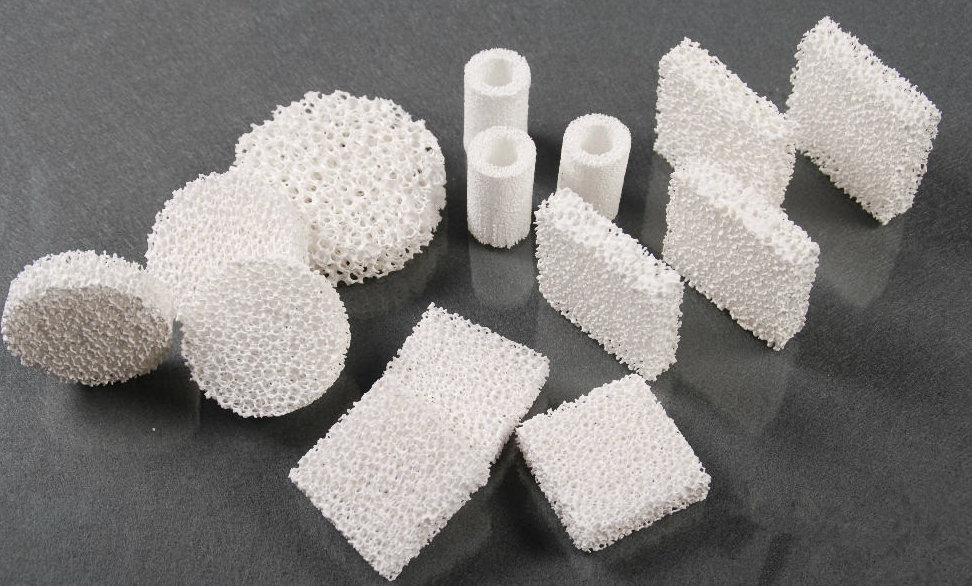

Alumina Filter Ceramic Foam for Precision Casting Filter

Quantity:
sharethis sharing button
  • Shanghai, China

  • 100, 000pieces/Month

  • L/C, T/T, Western Union

  • CFA

  • 12-25mm

  • Non-Ferrous, Aluminum and Its Alloys Casting

  • DXY

  • Export Package: Wooden Box+Pallet

  • Diameter=30~500mm H=5~20mm

  • China

  • 842199900

  • 1200 Celsius Degree

  • Long Time Materials

  • Refractory Material

  • Rectangle, Round, Square

  • Alumina

  • 10ppi, 20ppi, 30ppi, 40ppi, 50ppi, 60ppi

Product Description

Alumina ceramic foam filter is mainly used for filtration of aluminum and aluminum alloys in foundries and cast houses. It is widely applied to the aluminum fusant filtration equipment of continuous casting, half continuous casting, gravity casting and low pressure casting. It can effectively remove inclusions, reduce trapped gas and provide laminar flow when molten aluminum filtrated.

Using scope of alumina ceramic foam filter:
Alumina ceramic foam filter is widely applied to the aluminum fusant filtration equipment of continuous casting, half continuous casting, gravity casting and low pressure casting.

Specification of alumina ceramic foam filter:
We can produce round, square and other geometric shapes of alumina ceramic foam filter. Sizes from 10mm to 600 mm, thickness from 10 mm to 50 mm, bore density from 10PPI-60PPI.
Alumina ceramic foam filter is equipped with a gasket on the edges. The gasket assures the proper and tight position of the filter within the filter box. Also you can choose alumina ceramic foam filter without gasket. We can produce according to customer requirements of different shapes, sizes and bore density.
Type Alumina CFF
Material Al2O3
Applied temperature ≤1200 Degree C
Color White
Bulk Density 0.35~0.55 g/cm3
Bore Density 10~60PPI
Porosity 80~90%
Bending Strength 0.6Mpa
Compression Strength ≥0.8Mpa
Thermal Shock Resistance
(1100Degree C ~ Room Temperature)
Not break after 6 times thermal shock testing
Application non-ferrous,
aluminum and aluminum alloys
high temperature gas filter,
chemical fillings and catalysis carrier etc.
Type Alumina CFF
Material Al2O3
Applied temperature ≤1200 Degree C
Color White
Bulk Density 0.35~0.55 g/cm3
Bore Density 10~60PPI
Porosity 80~90%
Bending Strength 0.6Mpa
Compression Strength ≥0.8Mpa
Thermal Shock Resistance
(1100Degree C ~ Room Temperature)
Not break after 6 times thermal shock testing
Application non-ferrous,
aluminum and aluminum alloys
high temperature gas filter,
chemical fillings and catalysis carrier etc.
Specification (inch) Size (mm)
Length×Width×Thickness Diameter×Thickness Length×Width×Thickness Diameter×Thickness
3″×3″×0.87″/1″/1.2″/1.5″ Φ3″×0.87″/1″/1.2″/1.5″ 76×76×22/25/30/38 Φ76×22/25/30/38
4″×4 ″×0.87″/1″/1.2″/1.5″ Φ4″×0.87″/1″/1.2″/1.5″ 100×100×22/25/30/38 Φ100×22/25/30/38
5″×5″×1″/1.2″/1.5″ Φ5″×1″/1.2″/1.5″ 127×127×25/30/38 Φ127×25/30/38
6″×6″×1.2″/1.5″/2″ Φ6″×1.2″/1.5″/2″ 152×152×30/38/50 Φ152×30/38/50
7″×7″×1.5″/2″ Φ7″×1.5″/2″ 178×178×38/50 Φ178×38/50
8″×8″×2″ Φ8″×2″ 203×203×50 Φ203×50
9″×9″×2″ Φ9″×2″ 229×229×50 Φ229×50
12″×12″×2″ Φ12″×2″ 305×305×50 Φ305×50
15″×15″×2″ Φ15″×2″ 381×381×50 Φ381×50
17″×17″×2″ Φ17″×2″ 432×432×50 Φ432×50
20″×20″×2″ Φ20″×2″ 508×508×50 Φ508×50
23″×23″×2″ Φ23″×2″ 584×584×50 Φ584×50

Alumina Filter Ceramic Foam for Precision Casting Filter
