Alumina Ceramic Foam Filter
You are here: Home » Products » Foam Ceramic Filter » Al2O3 Ceramic Foam Filter » Alumina Ceramic Foam Filter

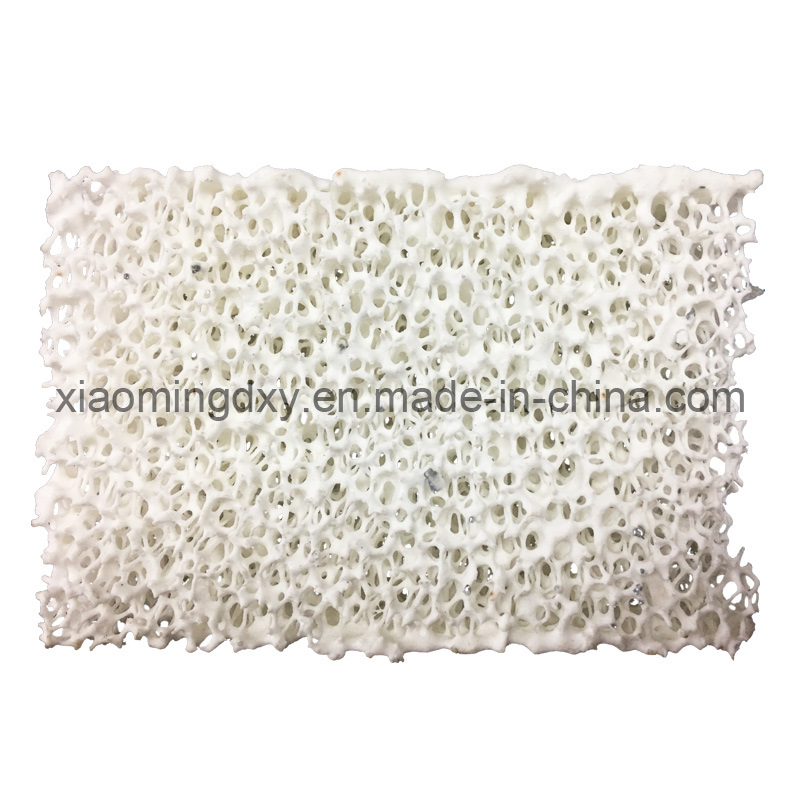

Alumina Ceramic Foam Filter

Quantity:
  • Shanghai, China
  • 100, 000pieces/Month
  • L/C, T/T, D/P, Western Union, Paypal
  • CFA
  • 12-25mm
  • Non-Ferrous, Aluminum and Its Alloys Casting
  • DXY
  • Export Package: Wooden Box+Pallet
  • Diameter=30~500mm H=5~20mm
  • China
  • 842199900
  • 1200 Celsius Degree
  • Long Time Materials
  • Refractory Material
  • Rectangle, Round, Square
  • Alumina
  • 10ppi, 20ppi, 30ppi, 40ppi, 50ppi, 60ppi

Product Description

Alumina ceramic foam filter is mainly used for filtration of aluminium and aluminium alloys in foundries and cast houses. With their excellent thermal shock resistance and corrosion resistance from molten aluminum, they can effectively eliminate inclusions, reduce trapped gas and provide laminar flow, and then the filtered metal is significantly cleaner. Cleaner metal results in higher-quality castings, less scrap, and fewer inclusion defects, all of which contribute to bottom-line profit.


Using scope of alumina ceramic foam filter:
Alumina ceramic foam filter is widely applied to the aluminum fusant filtration equipment of continuous casting, half continuous casting, gravity casting and low pressure casting.

Applications:
*Effectively remove and absorb impurities
*Improve the surface quality, product performance and microstructure effectiveness
*Mainly used in the domestic, construction, electricity, condensing tubes, cable and other aluminum alloy precision casting
Type Alumina CFF
Material Al2O3
Applied temperature ≤1200 Degree C
Color White
Bulk Density 0.35~0.55 g/cm3
Bore Density 10~60PPI
Porosity 80~90%
Bending Strength 0.6Mpa
Compression Strength ≥0.8Mpa
Thermal Shock Resistance
(1100Degree C ~ Room Temperature)
Not break after 6 times thermal shock testing
Application non-ferrous,
aluminum and aluminum alloys
high temperature gas filter,
chemical fillings and catalysis carrier etc.
Type Alumina CFF
Material Al2O3
Applied temperature ≤1200 Degree C
Color White
Bulk Density 0.35~0.55 g/cm3
Bore Density 10~60PPI
Porosity 80~90%
Bending Strength 0.6Mpa
Compression Strength ≥0.8Mpa
Thermal Shock Resistance
(1100Degree C ~ Room Temperature)
Not break after 6 times thermal shock testing
Application non-ferrous,
aluminum and aluminum alloys
high temperature gas filter,
chemical fillings and catalysis carrier etc.
Specification (inch) Size (mm)
Length×Width×Thickness Diameter×Thickness Length×Width×Thickness Diameter×Thickness
3″×3″×0.87″/1″/1.2″/1.5″ Φ3″×0.87″/1″/1.2″/1.5″ 76×76×22/25/30/38 Φ76×22/25/30/38
4″×4 ″×0.87″/1″/1.2″/1.5″ Φ4″×0.87″/1″/1.2″/1.5″ 100×100×22/25/30/38 Φ100×22/25/30/38
5″×5″×1″/1.2″/1.5″ Φ5″×1″/1.2″/1.5″ 127×127×25/30/38 Φ127×25/30/38
6″×6″×1.2″/1.5″/2″ Φ6″×1.2″/1.5″/2″ 152×152×30/38/50 Φ152×30/38/50
7″×7″×1.5″/2″ Φ7″×1.5″/2″ 178×178×38/50 Φ178×38/50
8″×8″×2″ Φ8″×2″ 203×203×50 Φ203×50
9″×9″×2″ Φ9″×2″ 229×229×50 Φ229×50
12″×12″×2″ Φ12″×2″ 305×305×50 Φ305×50
15″×15″×2″ Φ15″×2″ 381×381×50 Φ381×50
17″×17″×2″ Φ17″×2″ 432×432×50 Φ432×50
20″×20″×2″ Φ20″×2″ 508×508×50 Φ508×50
23″×23″×2″ Φ23″×2″ 584×584×50 Φ584×50

Alumina Ceramic Foam Filter
