Alumina Foundry Foam Casting Ceramic Foam Filters
You are here: Home » Products » Foam Ceramic Filter » Al2O3 Ceramic Foam Filter » Alumina Foundry Foam Casting Ceramic Foam Filters

Alumina Foundry Foam Casting Ceramic Foam Filters

Quantity:
  • Shanghai, China
  • 100, 000pieces/Month
  • L/C, T/T, D/P, Western Union, Paypal
  • CFA
  • 10-60
  • 150*150*22mm, 200*200*22mm, 80*22mm etc
  • Alumina Casting
  • DXY
  • Wooden Box/Carton Box with Pallet
  • China
  • 1580< Refractoriness< 1770
  • Long Time Materials
  • Refractory Material
  • Plate
  • Ceramic
  • White

Product Description

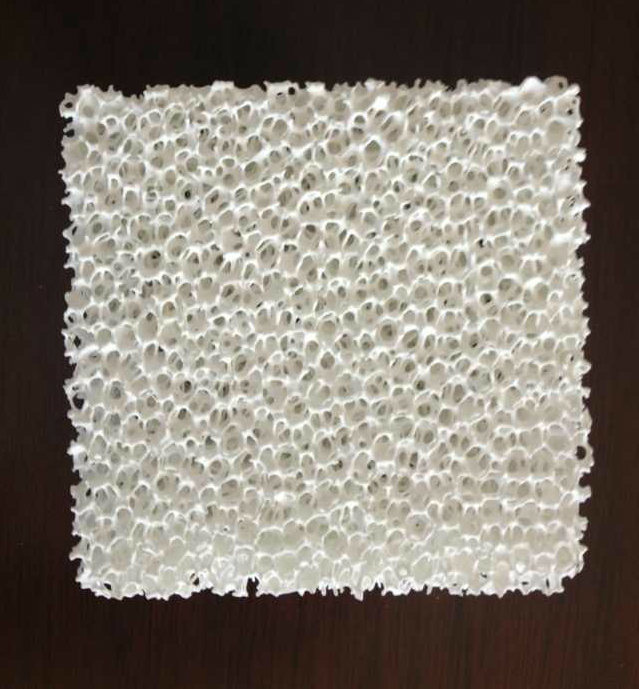

Alumina Ceramic Foam Filter is mainly used for filtration of aluminum and aluminum alloys in foundries and cast houses. Alumina ceramic foam filter is characterised by excellent stability and resistance towards heat shocks. The complexity of filters is not damaged during the casting process. With its excellent resistance to attack and corrosion from molten aluminum, alumina ceramic foam filter can effectively remove inclusions, reduce trapped gas and provide laminar flow, and then the filtered metal is significantly clearner. Clearner metal results in higher-quality castings, less scrap, and fewer inclusion defects, all of which contribute to bottom-line profit.

The steady improvement and development of its filters for molten metal filtration. Cleaner metal results in higher-quality castings, less scrap, and fewer inclusion defects, all of which contribute to bottom-line profit. Apply to improve the quality of aluminum alloy and other non-ferrous alloy casting. It can improve metallurgical structure enhance mechanical properties change turbulence into laminar flow porosities. Alumina Ceramic Foam Filters is available in all standard dimensions and different thickness. We provide the whole range of porosities from PPI 10 up to PPI 60 (PPI = pores per inch) or made as per customers' requirements.
Porosity(%) 80~90%
Working Temperature ≤ 1100 ° C
Bending Strength(Mpa) 0.6
Compression Strength(Mpa) 0.8
Thermal Shock Resistance 1100 ° C---room temperature 6 times
Volume Density 0.4-0.5 g/cm3
Dimensions(inch) Dimensions(mm) Tolerance for Dimensions(mm) Weight(g) Filter capacity (t Al) Flow Rate
(kg/min)
7x7x2 178x178x50 178 ± 3 580 ± 40 5 20-60
9x9x2 228x228x50 228 ± 3 1000 ± 60 10 40-120
12x12x2 305x305x50 305 ± 3 1780 ± 120 15 80-240
15x15x2 381x381x50 381 ± 3 2810 ± 180 25 120-360
17x17x2 431x431x50 431 ± 3 3680 ± 210 35 160-480
20x20x2 508x508x50 508 ± 3 5080 ± 240 45 230-690

Alumina Foundry Foam Casting Ceramic Foam Filters
