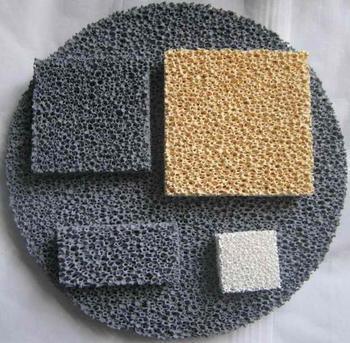

Silicon Carbide/Zirconia/Alumina Ceramic Foam Filter for Precision Casting Filter

Quantity:
sharethis sharing button
  • Shanghai, China

  • 100, 000pieces/Month

  • L/C, T/T, D/P, Western Union, Paypal

  • FCF

  • 12-25mm

  • DXY

  • Export Package: Wooden Box+Pallet

  • 50*50*13mm, 200*150*15mm, 400*250*15mm, etc

  • China

  • 842199900

  • Refractoriness> 2000

  • Long Time Materials

  • Refractory Material

  • Rectangle, Round, Square

  • Zirconia Oxide

  • 10ppi,20ppi,30ppi,40ppi,50ppi,60ppi

Product Description

Ceramic Foam Filter Introduction:
Ceramic foam filter is a kind of effective molten metal filter. It's three-dimensional connected mesh structure and high porosity has many advantages, for example, large surface area of slags collection, large inner surface area of filtering, small flow resistance, good filtering effect, etc. It is made from high quality ceramic materials, whose main components are Al2O3, Sic, ZrO2, MgO etc. Ceramic Foam Filter has the characters of light weight, high mechanical strength, large specific surface areas, high porosity, excellent thermal shock resistance, chemical corrosion resistance and high temperature stability in molten metal. With the distributing pores net structure, they are able to increase the surface areas, and absorb the sinter, the liquid metal becomes more pure, waster quality problems such as sand pore and air pore are much less and the cast quality becomes much better.

We can manufacture and supply ceramic foam filters as follows:
*Silicon Carbide Ceramic Foam Filter is applied to purge and filter solution of ductile iron casting, grey iron and other iron casting
*Zirconia Ceramic Foam Filter is applied to purge and filter solution of steel high temperature metal such as steel alloy stainless steel etc
*Magnesia Ceramic Foam Filter is applied to purge and filter solution of magnesium and magnesium alloy
*Alumina Ceramic Foam Filter is applied to purge and filter solution of aluminium and aluminium alloys

Specifications
*High quality Alumina Ceramic Foam Filter
*Long working life, Good Strength
*ISO 9001: 2000
*SiC/Al2O3/Zirconia/MagO2: 90--99.7%
*Competitive price

Functions:
*Decontaminate the melting metal liquid
*Simplified gating system
*Improve the metallurgical structure of the castings
*Reduce imparities of the castings
*Improve casting quality rate
*Reduce casting internal re-oxidation defects
*Reduce the surface defects after machining of the castings
Type Alumina CFF Silicon carbide CFF Zirconia CFF Magnesia CFF
Material Al2O3 Sic ZrO2 MgO
Applied temperature ≤1200 º C ≤1500 º C ≤1700 º C ≤1100 º C
Color White Grey black Yellow Yellow
Bulk Density 0.35~0.55g/cm3 0.45~0.65g/cm3 1~1.5g/cm3 0.5~0.7g/cm3
Bore Density 10~60PPI 10~60PPI 10~60PPI 10-60ppi
Porosity 80~90% 80~90% 80~90% 80-90%
Bending Strength 0.6Mpa 0.8Mpa 0.8-1.0Mpa 0.6Mpa
Compression Strength ≥0.8Mpa ≥1.0Mpa ≥1.5Mpa ≥0.8Mpa
Thermal Shock Resistance Not break after 6 times thermal shock testing
(1100 º C ~ Room Temperature)
Application Molten Aluminum and Alloy Molten Iron and Alloy Molten Stainless Steel, Alloy and other metal in precision molding Molten magnesium and its alloys
No. Size (mm) Flow velocity (Kg/s) Filter capacity (Kg)
Gray castiron Ductile castiron Gray castiron Ductile castiron
1 30 × 50 × 22 2~4 1~3 45~60 15~30
2 40 × 40 × 11 2~4 1~3 45~60 15~30
40 × 40 × 13 2~4 1~3 45~60 15~30
40 × 40 × 22 2~4 1~3 45~60 15~30
3 50 × 50 × 13 3~6 2~4 55~90 25~45
50 × 50 × 22 3~6 2~4 55~90 25~45
4 60 × 60 × 22 4~8 3~5 65~110 40~75
5 66 × 66 × 22 5~9 4~6 80~130 45~80
6 75 × 50 × 22 4~8 5~7 65~110 40~75
7 75 × 75 × 22 9~14 6~9 145~220 70~100
8 Φ 50 × 22 3~5 1~3 50~70 20~40
9 Φ 60 × 22 3~6 2~4 65~110 35~60
10 Φ 70 × 22 4~8 3~6 75~130 40~75
11 Φ 76 × 22 5~9 4~7 90~150 45~80
12 Φ 90 × 22 10~15 6~9 180~260 75~110
13 100 × 50 × 22 8~12 5~8 130~200 65~90
14 100 × 60 × 22 9~14 6~9 180~260 70~100
15 150 × 100 × 22 18~25 12~16 300~ 400 150~210
16 150 × 150 × 22 35~50 24~36 400~ 900 300~450
