High Quality Ceramic Foam Filter for Metal Industry
You are here: Home » Products » Foam Ceramic Filter » Others Foam Ceramic Filter » High Quality Ceramic Foam Filter for Metal Industry

loading

High Quality Ceramic Foam Filter for Metal Industry

Quantity:
sharethis sharing button
  • Shanghai, China

  • 100, 000pieces/Month

  • L/C, T/T, D/P, Western Union, Paypal

  • FCF

  • Steel Iron Alloy Casting

  • DXY

  • Wooden Box/Carton Box with Pallet

  • China

  • 1580< Refractoriness< 1770

  • Long Time Materials

  • Refractory Material

  • Square, Rectangle, etc

  • Alumina, Sic, Zirconia

  • 50*50*12mm,149.63/141.79*200*15,250*200*15mm,etc

Product Description

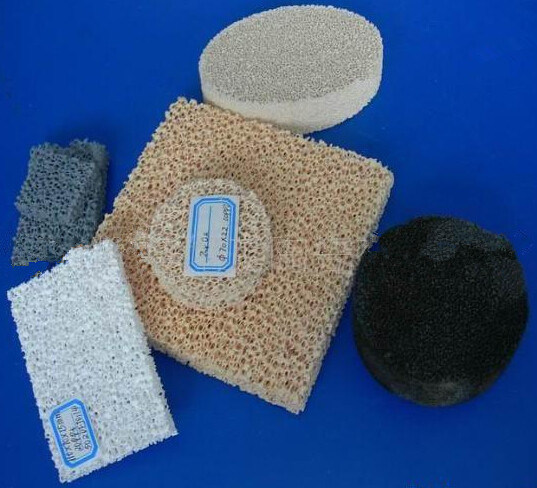

Ceramic foam filter is just developed as a new type of molten metal filters to decrease casting flaw recently. It is made from high quality ceramic materials, whose main components are Al2O3, Sic, ZrO2, MgO etc. Ceramic Foam Filter has the characters of light weight, high mechanical strength, large specific surface areas, high porosity, excellent thermal shock resistance, chemical corrosion resistance and high temperature stability in molten metal. With the distributing pores net structure, they are able to increase the surface areas, and absorb the sinter, the liquid metal becomes more pure, waster quality problems such as sand pore and air pore are much less and the cast quality becomes much better.

Classification and Specifications:
*Alumina / Al2O3 Ceramic Foam Filter
It's mainly for filtration of aluminum and aluminum alloys in foundries
*Zirconia / ZrO2 Ceramic Foam Filter
It's used for molten all types of steels like unalloyed, low alloyed, stainless and high-alloyed as well as Nickel and Cobalt-based super-alloys
*Silicon Carbide/SiC Ceramic Foam Filter
It's mainly for filtration of cast iron (grey iron & ductile iron) and non-ferrous alloys

Advantages:
*High porosity
*Low loss of thermal shock
*High mechanical strength at normal and high temperature
*Large specific surface
*Good chemical stability
*Excellent filtering functions of screen
*Excellent filtering residua collection and absorption
Type Alumina CFF Silicon carbide CFF Zirconia CFF Magnesia CFF
Material Al2O3 Sic ZrO2 MgO
Applied temperature ≤1200celsius degree ≤1500celsius degree ≤1700celsius degree ≤1100celsius degree
Color White Grey black Yellow Yellow
Bulk Density 0.35~0.55g/cm3 0.45~0.65g/cm3 1~1.5g/cm3 0.5~0.7g/cm3
Bore Density 10~60PPI 10~60PPI 10~60PPI 10-60ppi
Porosity 80~90% 80~90% 80~90% 80-90%
Bending Strength 0.6Mpa 0.8Mpa 0.8-1.0Mpa 0.6Mpa
Compression Strength ≥0.8Mpa ≥1.0Mpa ≥1.5Mpa ≥0.8Mpa
Thermal Shock Resistance
(1100celsius degree ~ Room Temperature)
Not break after 6 times thermal shock testing
Application Molten Aluminum and Alloy Molten Iron and Alloy Molten Stainless Steel, Alloy and other metal in precision molding Molten magnesium and its alloys

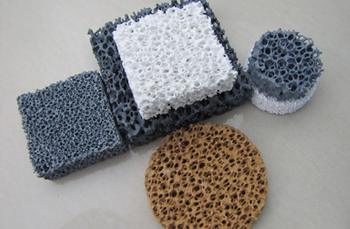

High Quality Ceramic Foam Filter for Metal Industry
