Shanghai, China
100, 000pieces/Month
L/C, T/T, Western Union, Paypal
DPFS
100-600cpsi
Diesel Engine Exhaust
DXY
Wooden Box/Carton Box with Pallet
China
84213990
Ceramic
Euro IV
ISO9001, TS16949
Catalytic Converter
Green
Round, Racetrack, Rectangle, etc

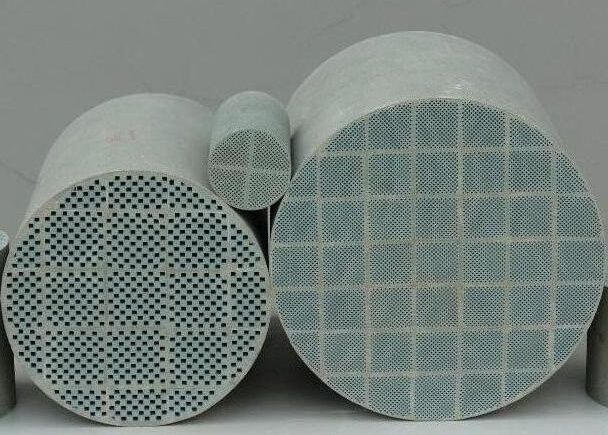

Product Description
Property (uncatalyzed) | 100/17 | 200/12 | |
Cell density | cpsi | 100 | 200 |
cpscm | 15.5 | 31.0 | |
Wall thickness | inch | 0.017 | 0.012 |
mm | 0.432 | 0.305 | |
Open frontal area (OFA), % | 34.5 | 34.5 | |
Geometric surface area (GSA) | Inch 2 | 33.3 | 47.0 |
m 2 /l | 1.31 | 1.85 | |
Hydraulic diameter | Inch | 0.083 | 0.059 |
mm | 2.11 | 1.49 | |
Modulus of rupture (psi/cpscm) | 350 | 300 | |
Porosity (%) | 48 | 48 | |
Coefficient of thermal expansion 10 2 cm/cm/ (20-800) --maximum average | 5 | 5 | |
Mean pore size (micron) | 13 | 13 | |
Melting temperature ( Degree C ) | 1460 | 1460 |
Size(Diameter × length) | Filter volume(Liter) | Cell density | Shape | |
mm | Inches | |||
Φ 70 × 152 | Dia.2.76 × 6 | 0.58 | 100/200CPSI | Round |
Φ 144 × 152 | Dia.5.66 × 6 | 2.48 | 100/200CPSI | Round |
Φ 144 × 205 | Dia.5.66 × 8 | 3.34 | 100/200CPSI | Round |
Φ 144 × 254 | Dia.5.66 × 10 | 4.13 | 100/200CPSI | Round |
Φ 144 × 305 | Dia.5.66 × 12 | 4.96 | 100/200CPSI | Round |
Φ 170 × 254 | Dia.6.69 × 10 | 5.76 | 100/200CPSI | Round |
Φ 190 × 200 | Dia.7.48 × 7.87 | 5.67 | 100/200CPSI | Round |
Φ 228 × 152 | Dia.8.97 × 6 | 6.20 | 100/200CPSI | Round |
Φ 228 × 254 | Dia.8.97 × 10 | 10.37 | 100/200CPSI | Round |
Φ 228 × 305 | Dia.8.97 × 12 | 12.45 | 100/200CPSI | Round |
Φ 240 × 240 | Dia.9.45 × 9.45 | 10.85 | 100/200CPSI | Round |
Φ 240 × 254 | Dia.9.45 × 10 | 11.48 | 100/200CPSI | Round |
Φ 240 × 305 | Dia.9.45 × 12 | 13.79 | 100/200CPSI | Round |
Φ 260 × 305 | Dia.10.23 × 12 | 16.19 | 100/200CPSI | Round |
Φ 270 × 305 | Dia.10.63 × 12 | 17.45 | 100/200CPSI | Round |
Φ 286 × 305 | Dia.11.26 × 12 | 19.58 | 100/200CPSI | Round |
(98 × 195) × 154 | (3.8 × 7.7) × 6 | 2.60 | 100/200CPSI | Race track |
(98 × 195) × 205 | (3.8 × 7.7) × 8 | 3.50 | 100/200CPSI | Race track |
(98 × 195) × 254 | (3.8 × 7.7) × 10 | 4.30 | 100/200CPSI | Race track |
(98 × 195) × 305 | (3.8 × 7.7) × 12 | 5.20 | 100/200CPSI | Race track |
