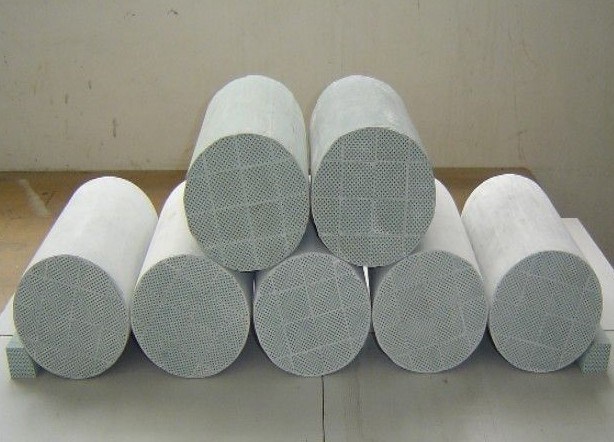

Universal Diesel Particulate Filter Catalytic Converter
You are here: Home » Products » Diesel Particulate Filter » SiC Diesel Particulate Filter » Universal Diesel Particulate Filter Catalytic Converter

Universal Diesel Particulate Filter Catalytic Converter

SpecificationsGood thermal shock
High Porosity
Less backpressure
Long service span
Customization available
Availability:
Quantity:
sharethis sharing button
  • 100, 000pieces/Month

  • L/C, T/T, Western Union

  • Shanghai, China

Product Description

Sic-based Diesel Particulate Filter is a high-tech product. It is mainly used to produce new generation of diesel clean & emission system to
fulfill the carbon particulate cleaning target of the EUIII, EUIV standards

Working principle for Sic-based Diesel Particulate Filter: It can reduce 96.5% carbon particulates emission by holding up
the carbon particulates in tail gas of diesel at first, then clear up carbon particulates by means of
electric heat, fuel burner etc., finally to meet carbon particulate emission standards.

Diesel Particulate Filter adopts structure of honeycomb. It sets up independent opening and
blocking up passages in both ends and the waste gas enters from one open end, then goes
through the porous beehive wall, and finally discharges from adjoining passage. The carbon
particulates are left over on passage wall because they are too big to pass through wall hole
and won't be discharged to air.

Universal Diesel Particulate Filter Catalytic Converter

SpecificationsGood thermal shock
High Porosity
Less backpressure
Long service span
Customization available
Universal Diesel Particulate Filter Catalytic Converter

Size(Diameter × length) Filter volume(Liter) Cell density Shape
mm Inches
Φ70×152 Dia.2.76×6 0.58 100/200CPSI Rotundity
Φ144×152 Dia.5.66×6 2.48 100/200CPSI Rotundity
Φ144×205 Dia.5.66×8 3.34 100/200CPSI Rotundity
Φ144×254 Dia.5.66×10 4.13 100/200CPSI Rotundity
Φ144×305 Dia.5.66×12 4.96 100/200CPSI Rotundity
Φ170×254 Dia.6.69×10 5.76 100/200CPSI Rotundity
Φ190×200 Dia.7.48×7.87 5.67 100/200CPSI Rotundity
Φ228×152 Dia.8.97×6 6.20 100/200CPSI Rotundity
Φ228×254 Dia.8.97×10 10.37 100/200CPSI Rotundity
Φ228×305 Dia.8.97×12 12.45 100/200CPSI Rotundity
Φ240×240 Dia.9.45×9.45 10.85 100/200CPSI Rotundity
Φ240×254 Dia.9.45×10 11.48 100/200CPSI Rotundity
Φ240×305 Dia.9.45×12 13.79 100/200CPSI Rotundity
Φ260×305 Dia.10.23×12 16.19 100/200CPSI Rotundity
Φ270×305 Dia.10.63×12 17.45 100/200CPSI Rotundity
Φ286×305 Dia.11.26×12 19.58 100/200CPSI Rotundity
(98×195)×154 (3.8×7.7)×6 2.60 100/200CPSI Race track
(98×195)×205 (3.8×7.7)×8 3.50 100/200CPSI Race track
(98×195)×254 (3.8×7.7)×10 4.30 100/200CPSI Race track
(98×195)×305 (3.8×7.7)×12 5.20 100/200CPSI Race track
