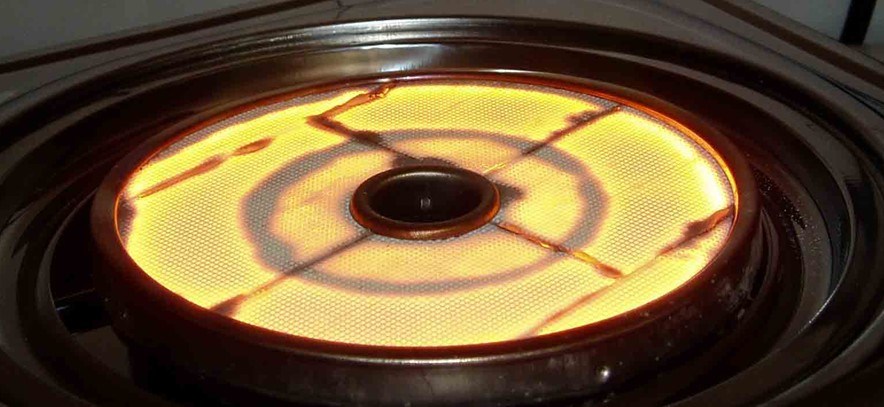

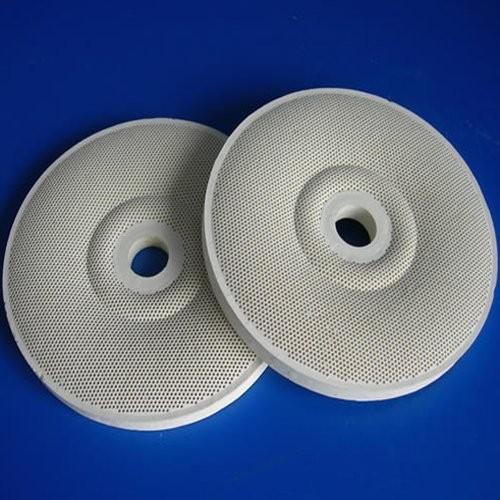

Infrared Honeycomb Ceramic Plate is widely used in gas radiant heaters and plays the most important part in those applications. The interlaced corrugated surface of the ceramic tile combined with honeycomb design basis provides a superb surface area and working burning surface. We have also adopted the best raw material and new formula to maximize the micro-porosity of the tile. With all these advantages, the oxygen mix completely with the gas, burning without flame.
Infrared honeycomb ceramic plate used in combustion oven, using modern advanced science and technology and selecting high-purity and high-quality cordierite. They have the advantages of high heat efficiency and low energy consuming, low pollution, economical and practical, easy installing, high ventilative rate and strong heat radiation, etc. Compared with the electrical drying stove and common gas-fired combustion stove, infrared honeycomb ceramic plates have the following advantages:
*Energy saving up to 30-50%
*Balanced and well-distributed heating
*No flame burning, No noise burning
*Reduce harmful exhaust gas
*Strong mechanical strength & thermal shock resistance

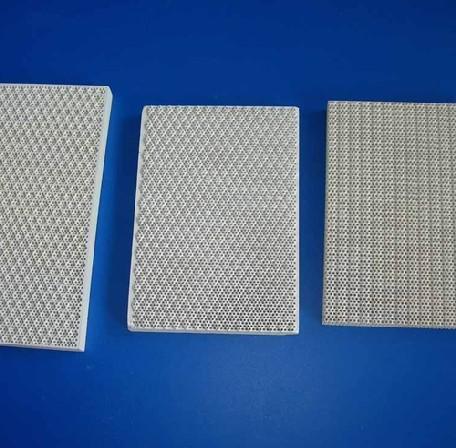

Our special designed infrared ceramic plate provides a superb surface area and working burning surface due to its interlaced corrugated surface of the ceramic plate combined with honeycomb basis. We have been innovatively searching for the best raw material and new formula to maximize the micro-porosity of the tile. If coated with a special catalyst, the honeycomb ceramic can transfer the heat by infrared radiation style. Compared to the normal gas-fired stove combustion. In addition, our company also develops and produces infrared honeycomb ceramic plate with the corrugation surface. It increases the specific surface area through transforming the simple plane surface into intersectant corrugated solid surface. By this way, it can promote the combustion supporting function and achieve the goal of energy conserving and environment protection.
Application
Infrared Ceramic Plate is widely used in various burners, ovens, fryers, heaters and barbecue set which burn gas.
Specification
mm | Fuel gas | hole | Cells/In 2 (CPSI) | suuface |
| NG | LPG | square | round | square | round | plane | Convex diamond
Pattern | Concave
Cinquefoil
pattern | Corrugatoin
pattern |
| Φ 100 | √ | √ | √ | - | 280-520 | - | √ | √ | - | √ |
| Φ 110 | √ | √ | √ | - | 280-520 | - | √ | √ | - | √ |
| Φ 120 | √ | √ | √ | - | 280-520 | - | √ | √ | - | √ |
| Φ 150 | √ | √ | √ | - | 280-520 | - | √ | √ | - | √ |
| Φ 80 | √ | √ | √ | - | 280-520 | - | √ | √ | - | √ |
| Φ 135 | √ | √ | √ | - | 280-520 | - | √ | √ | - | √ |
| Φ 160 | √ | √ | √ | - | 280-520 | - | √ | √ | - | √ |
| Item | Unit | Value |
| Cell density | CPSI | 260- 520 |
| Wall thickness | Cm | 0.18-0.28 |
| Open porosity | % | 63-73 |
| Capacity | g/L | 0.45-0.65 |
| Hot coefficient expansion | 10-6/k-1 | 2.0-2.5 |
| Heat capacity | J/kg | 0.85-1.0 |
| Thermal conductivity | W/MK | 1.5-2.5 |
| Max use temperature | ° C | 1375 |
| Compressive strength(vertical) | Mpa | ≥ 10 |
| Material | Cordierite |
| Density of hole | 260 cpsi, 280cpsi, 320cpsi, 520 cpsi |
| Thickness of wall | 0.18-0.23mm / 0.28-0.33mm /
0.35-0.40mm |
| Size of sides | 1.06mm 1.13mm 1.2mm |
| Distance of two central holes | 1.33-1.59mm |
| Porosity | 63.5-73.5% |
| Water absorption | > 40% |
| Thermal expansion | 2.0-2.5 × 10-6 |
| Thermal stability | 1200 ° C--25 ° C,no crack |
| Strength compressive | vertical>10.0Mpatransverse>3.0Mpa |
