Cordierite Ceramic Infrared Honeycomb for Burning Plate
You are here: Home » Products » Infrared Burning Plates » Cordierite Ceramic Infrared Honeycomb for Burning Plate

Cordierite Ceramic Infrared Honeycomb for Burning Plate

Quantity:
sharethis sharing button
  • Shanghai, China

  • 100, 000pieces/Month

  • L/C, T/T, Western Union

  • ICP

  • Plate Heat Exchanger

  • Regenerative Heat Exchanger

  • DXY

  • Wooden Box/Carton Box with Pallet

  • dia80, dia125, dia130, dia160, dia170, 132x92x13

  • China

  • 6909190000

  • Pressure Resistant, Temperature Resistant

  • Ceramic

  • 132*92*13, 183*131*13.5, etc

  • Furnace, Pizza Furnace, BBQ

  • Heater

  • Ceramic

Product Description

Infrared Ceramic Plate is well known as Infrared Plate that made of Cordierite, Alumina, Corundum, Zirconia etc materials. It is occurred inside the holes; and the heat energy is radiated high-efficiently in the means of ultra-red rays, avoiding energy loss through visible light. For the advantages of high combustion efficiency, well distributed heating and low exhaust gas emission, Ceramic Combustion Plate is proved to be an environmentally friendly heating technology, and it is the idea technology to replace the traditional gas combustion technology.

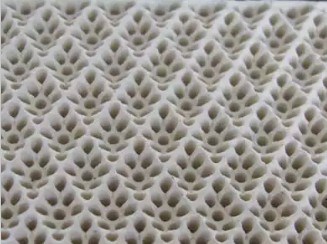

Cordierite Ceramic Infrared Honeycomb for Burning Plate
Properties:
*good compressive strength
*low density
*massive tiny holes
*good thermal shock resistance etc.

Applications:
1. Bake furnace
2. Food baking production line computer automatic dryer
3. Spray the bottom of the production line installation
4. Food baking line
5. Food grilled cabinet
6. Dedicated gas infrared oven

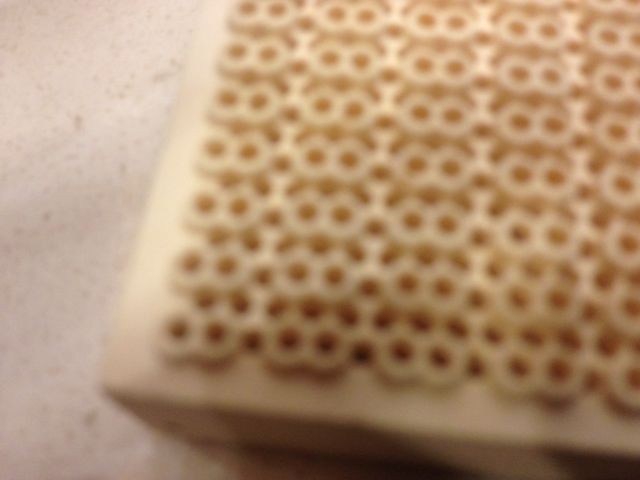

Cordierite Ceramic Infrared Honeycomb for Burning Plate
Cordierite Ceramic Infrared Honeycomb for Burning Plate

Item Unit Value
Cell density CPSI 260-520
Wall thickness Cm 0.18-0.28
Open porosity % 63-73
Capacity g/L 0.45-0.65
Hot coefficient expansion 10-6/k-1 2.0-2.5
Heat capacity J/kg 0.85-1.0
Thermal conductivity W/MK 1.5-2.5
Max use temperature Celsius Degree 1375
Compressive strength(vertical) Mpa ≥10
Name Unit Value
SiO2 % 39-44
Al2O3 % 47 -52
MgO % 5-7
Fe2O3 % ≤1
TiO2 % ≤1.9
K2O+Na2O+CaO % ≤2
Material Cordierite
Density of hole 260 cpsi, 280cpsi, 320cpsi, 520 cpsi
Thickness of wall 0.18-0.23mm / 0.28-0.33mm /
0.35-0.40mm
Size of sides 1.06mm 1.13mm 1.2mm
Distance of two central holes 1.33-1.59mm
Porosity 63.5-73.5%
Water absorption > 40%
Thermal expansion 2.0-2.5×10-6
Thermal stability 1200celsius degree--25celsius degree,no crack
Strength compressive vertical>10.0Mpatransverse>3.0Mpa
