Honeycomb Ceramic Substrate Used for Automobile/Motorcycle Exhaust System
You are here: Home » Products » Honeycomb Ceramic Substrate » Honeycomb Ceramic Substrate Used for Automobile/Motorcycle Exhaust System

Honeycomb Ceramic Substrate Used for Automobile/Motorcycle Exhaust System

Quantity:
sharethis sharing button
  • Shanghai, China

  • 100, 000pieces/Month

  • L/C, T/T, Western Union, Paypal

  • CHS

  • DXY

  • Wooden Box and Pallet/Packed as Customers′ Need

  • China

  • 6909190000

  • Ceramic

  • Euro IV

  • ISO9001

  • Catalytic Converter

  • Cordierite

  • 100-600cpsi

Product Description

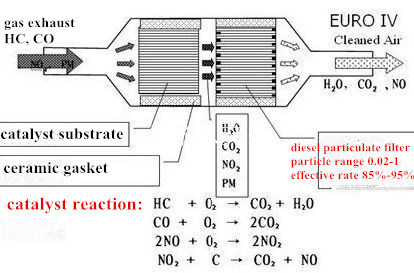

Honeycomb Ceramic Substrate is made of cordierite and it is used for car catalytic converter. It's merits of very low thermal expansion coefficient, high specific surface area, low air resistance, fast in temperature rising and unique structure which is perfect for car catalytic converter. Honeycomb Ceramic Substrate is coated with noble metals or rare earth to be catalyst, which is installed in the vehicle exhaust system, the most important outer purifier, which can be emitted by vehicle exhaust CO, HC and NOx and other harmful gases by oxidation and reduction reactions into harmless carbon dioxide, water and nitrogen.

Honeycomb Ceramic Substrate Used for Automobile/Motorcycle Exhaust System

Honeycomb Ceramic Substrate Used for Automobile/Motorcycle Exhaust System

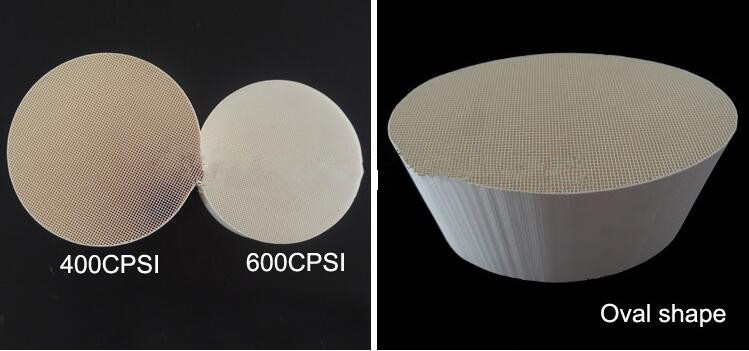

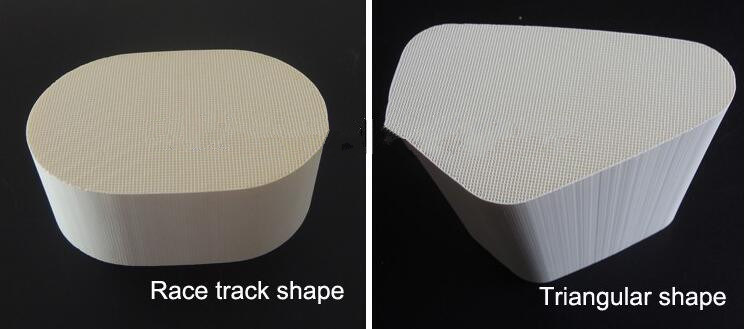

Automobile exhaust gases are conventionally purified with a catalyst supported on a ceramic body able to withstand high temperatures. The preferred catalyst support structure is a honeycomb configuration which includes a multiplicity of unobstructed parallel channels sized to permit gas flow and bounded by thin ceramic walls. We can produce 100CPSI, 200CPSI, 400CPSI, 600CPSI can be in the shape of round, racetrack and ovral etc. It can be coated with the catalyst and the noble metal as the customers emission standards: Euro II, EuroIII and EuroIV etc.

Features: Bore wall is thin, high specific surface area, high strength, low thermal expansion coefficient, good thermal shock resistance and thermal shock resistance, have a good match to the active ingredient and various catalyst

Honeycomb Ceramic Substrate Used for Automobile/Motorcycle Exhaust System

Applications: Automobile exhaust purification catalyst carrier
Hole number Hole density (hole/inch ²) Hold side length (mm) Specific area (m ² /m ³) Fractional hole area(%)
5*5 1 26.3 117 77
13*13 5 9.2 278 64
20*20 11 6.4 455 73
25*25 18 4.9 540 67
40*40 46 3.0 825 65
50*50 72 2.3 1005 57
Notice: shapes and sizes can be produced according to cliences drawing & requirest; standard material :alumina/multiple /cordierite.

Hole number Hole density (hole/inch ²) Hold side length (mm) Specific area (m ² /m ³) Fractional hole area(%)
5*5 1 26.3 117 77
13*13 5 9.2 278 64
20*20 11 6.4 455 73
25*25 18 4.9 540 67
40*40 46 3.0 825 65
50*50 72 2.3 1005 57
Notice: shapes and sizes can be produced according to cliences drawing & requirest; standard material :alumina/multiple /cordierite.
