Honeycomb Ceramic Substrate Metal Honeycomb (Ceramic or Metal Coating)
You are here: Home » Products » Honeycomb Ceramic Substrate » Honeycomb Ceramic Substrate Metal Honeycomb (Ceramic or Metal Coating)

Honeycomb Ceramic Substrate Metal Honeycomb (Ceramic or Metal Coating)

Quantity:
sharethis sharing button
  • Shanghai, China

  • 100, 000pieces/Month

  • L/C, T/T, Western Union

  • MHS

  • The Brake Noise

  • Catalytic Converter

  • Europe

  • SS304, SS316,Fe-Cr-Al Alloy

  • as Catalyst Used in Automobile/Motorcycle

  • 100-600cpsi

  • 0.04-0.1

  • 10-250

  • 1100°c

  • 1250°c

  • DXY

  • Wooden Box and Pallet/Packed as Customers′ Need

  • all size

  • China

  • 84213990

  • Catalytic Converter

  • Steel

  • Euro V

  • ISO9001, TS16949

  • The Noise of Engine

  • Mechanical Noise

Product Description

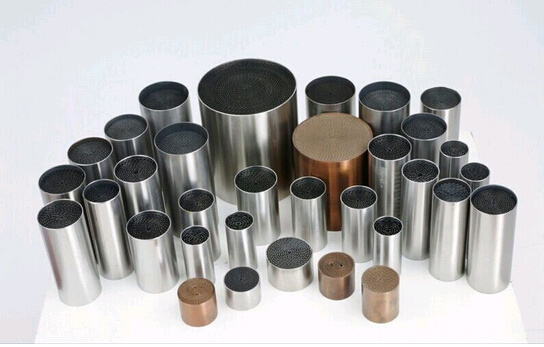

Metallic Honeycomb Substrate is widely used in exhaust gas purification, especially for automobile and motorbike. Metal Honeycomb Substrate has high strength complex substrate plus big surface area and active element of noble metal could lower down pollutant value of automobile/motorcycle exhaust efficiently, such as CO, HC, NOX etc...And such kind of catalyst is of excellent catalytic activity and durability that could reach emission standard EuroII, EuroIII, EuroIV, etc.

Catalyst type: Complex catalyst of noble metal (Pt, Pd, Rh) plus rare earth complex catalyst, catalytic substrate: Metal substrate and honeycomb ceramic substrate. Fantastic coating fastness and stably and long-term catalyst ability. Advanced technic of substrates making and canning, ensuring depandable resistance heat shocks and stability of equipment, various kinds of specifications and types, customized products as per clients specific requirement and technology data.

Advantages:
*Low thermal expansion
*High surface area
*Long-term durability performance
*Low pressure drop
*Good thermal shock resistance
*Combined with the EGR systems to help different vehicles to satisfy emission standard
*Low light-off temperature
*Excellent adhesion between wash-coat and susbstrate with netty structure
*Excellent quality and competitive price
Light-off temperature Durability Conversion efficiency Coating desquamate rate
T50(CO)≤230 T50(HC)≤260 T50(NOX)≤250 1000KM CO≥85% HC≥80% CO≥85% ≤7%
Honeycomb Ceramic Substrate Metal Honeycomb (Ceramic or Metal Coating)
Shape Material Diameter Length Channel density(cpsi) Precious metal
Cylinder Fe/Cr/Al 20 20 100/200 Pd/Pt/Rh
Cylinder Fe/Cr/Al 20 80 100/200 Pd/Pt/Rh
Cylinder Fe/Cr/Al 30 100 100/200 Pd/Pt/Rh
Cylinder Fe/Cr/Al 28 60 100/200 Pd/Pt/Rh
Cylinder Fe/Cr/Al 28 100 100/200 Pd/Pt/Rh
Cylinder Fe/Cr/Al 35 30 100/200 Pd/Pt/Rh
Cylinder Fe/Cr/Al 35 40 100/200 Pd/Pt/Rh
Cylinder Fe/Cr/Al 35 60 100/200 Pd/Pt/Rh
Cylinder Fe/Cr/Al 35 70 100/200 Pd/Pt/Rh
Cylinder Fe/Cr/Al 35 100 100/200 Pd/Pt/Rh
Cylinder Fe/Cr/Al 38 100 100/200 Pd/Pt/Rh
Cylinder Fe/Cr/Al 42 100 100/200 Pd/Pt/Rh
Cylinder Fe/Cr/Al 48.6 70 100/200/300 Pd/Pt/Rh
Cylinder Fe/Cr/Al 63 50 100/200/300/400 Pd/Pt/Rh
Cylinder Fe/Cr/Al 101.6 100 400 Pd/Pt/Rh
