Honeycomb Ceramic Substrate Catalytic Converter
You are here: Home » Products » Honeycomb Ceramic Substrate » Honeycomb Ceramic Substrate Catalytic Converter

Honeycomb Ceramic Substrate Catalytic Converter

Quantity:
  • Shanghai, China
  • 100, 000pieces/Month
  • L/C, T/T, Western Union, Paypal
  • CHS
  • as Catalyst Used in Automobile/Motorcycle
  • DXY
  • Wooden Box and Pallet/Packed as Customers′ Need
  • China
  • 6909190000
  • Ceramic
  • Euro IV
  • ISO9001
  • Catalytic Converter
  • Cordierite,Cordierite Ceramics and Zircon Chrome C
  • Round, Oval or Race Track

Product Description

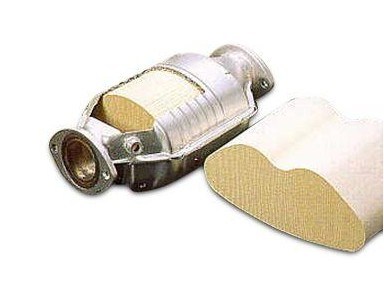

Honeycomb ceramic substrate is made of cordierite, and it is used for car catalytic converter. We can supply both ceramic element coated with noble metals of Pt, Pd, Rh and ceramic element without noble metals. The honeycomb ceramic substrate have a very competive substrates. We can produce 100CPSI, 200CPSI, 400CPSI, 600CPSI can be in the shape of round, racetrack and ovral. Specification can be customerlized as per customers' requirement. It can be coated with the noble metal according to customers' emission standards: Euro II, EuroIII and EuroIV and so on.

Honeycomb Ceramic Substrate Catalytic Converter

Bore wall is thin, the high specific surface area, high strength, low thermal expansion coefficient, good thermal shock resistance and thermal shock resistance, have a good match to the active ingredient and various catalyst. It is widely used in automobile exhaust purification catalyst carrier. It is also suitable for automotive vehicle exhaust purifiers (European standard) supporting.
Items Parameters
Cordierite crystal phase ≥90%
Coefficient of Thermal Expansion(20-800Degree C) ≤1.2×10-6/Degree C
Thermal Stability(20-650Degree C) 3 times
Soften Temperature ≥1400 Degree C
Water Absorption 23-25%
Bulk Density 0.40-0.50Kg/L
Tolerance of outside dimensions ±1%
Compression Strength Lengthways ≥15MPa
Horizontal ≥3MPa
Wall thickness 100 CPSI 0.43 mm
200 CPSI 0.32 mm
300 CPSI 0.30 mm
400 CPSI 0.18 mm
600 CPSI 0.15 mm
Specification Shape Mesh Material
Φ 93x100 Cylinder 400 cpsi Cordierite
Φ 106x100 Cylinder 400 cpsi Cordierite
Φ 106x130 Cylinder 400 cpsi Cordierite
Φ 118x100 Cylinder 400 cpsi Cordierite
Φ 276 × 290 Cylinder 400 cpsi Cordierite
Φ 100 × 68 × 120 Runway type 400 cpsi Cordierite
Φ 118 × 96 × 130 Trapezoidal 400 cpsi Cordierite
Φ 91 × 96 × 130 Trapezoidal 400 cpsi Cordierite
