Gas Burner Infrared Ceramic Plate
You are here: Home » Products » Infrared Burning Plates » Gas Burner Infrared Ceramic Plate

Gas Burner Infrared Ceramic Plate

sharethis sharing button
  • 50, 000PCS/Year

  • Carton Box+Pallet

  • L/C, T/T, Western Union

  • ICP

  • Round/Square

  • Cordierite

  • 200X140X13mm, 132X92X13mm, Dia100X12mm, Dia140X35

  • DXY

  • SGS

  • China

  • 690919000

  • ISO

  • Customized

  • Pattern

  • Gas

  • Industrial

  • Furnace Heat Pipe

Product Description

Gas Burner Infrared Ceramic Plate
Infrared Ceramic Plate
Gas Burner Infrared Ceramic Plate
Gas Burner Infrared Ceramic Plate

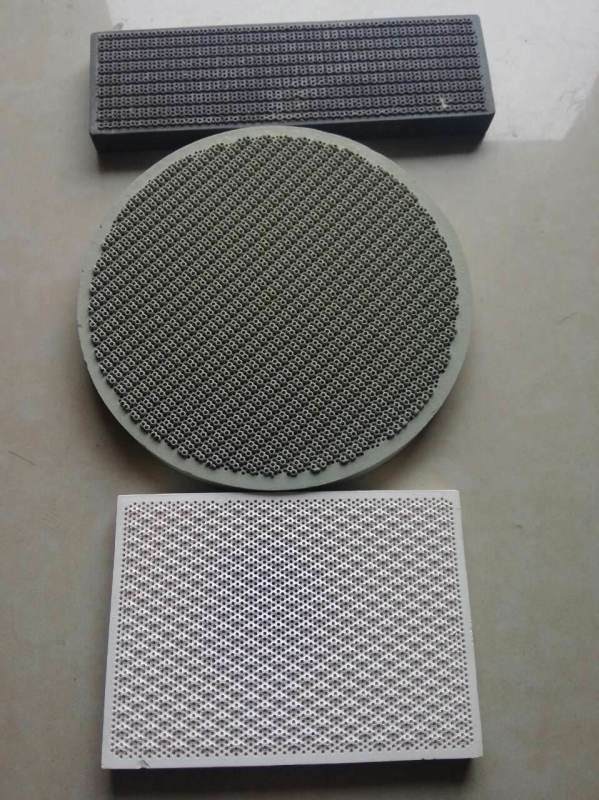

Infrared honeycomb ceramic plate used in combustion oven, using modern advanced science and technology and selecting high-purity and high-quality cordierite. They have the advantages of high heat efficiency and low energy consuming, low pollution, economical and practical, easy installing, high ventilative rate and strong heat radiation, etc. Compared with the electrical drying stove and common gas-fired combustion stove, infrared honeycomb ceramic plates have the following advantages:
1.Save 20-50% energy consumption.
2.Burn without flame, low noise.
3.Reduce the formulation of such harmful gas as CO, NOx, etc by a large margin (more than 70%)
4.Strong bearing of wind, using safely.
In addition, our company also develops and produces infrared honeycomb ceramic plate with the corrugation surface. It increases the specific surface area through transforming the simple plane surface into intersectant corrugated solid surface. By this way, it can promote the combustion supporting function and achieve the goal of energy conserving and environment protection.
Material: Cordierite
Open Porosity: 61%
Specific Gravity: 0.9-1.1g/cm³
Coefficient of Thermal Expansion: 3.4(×10-6/K-1)
Load Softening Temperature: 1410°C
Air Consumption: 0.13 kg/h
Heat Efficiency: 65~70%
Cooking Surface Temperature: 1000~2000°C
CO Discharged: <0.06%

Technical Data

Item Index Specifications
Material Cordierite Round Size:Φ80×12.5mm, Φ100×50mm, Φ125×12.5mm, Φ150×12.5mm, Φ160×13.5mm, Φ168×13.5 mm
Square Size:100×50×13.5mm, 132×68×13.5mm, 110×110×12.5mm, 132×76×13.5mm, 132×92×13.5mm, 158×72×13.5mm 198×136×13mm, 202×148×12.5mm
Water absorption 50.4%
Open Porosity 61%
Specific gravity 0.9-1.10Kg/cm3
Temperature softening >1280 °C
Cooking Surface Temperature 1000-1200
CO Release ≤0.006%
NOx Release ≤5ppm
