Cordierite Honeycomb Ceramic Plate Used for Burners of Heat Storage
You are here: Home » Products » Infrared Burning Plates » Cordierite Honeycomb Ceramic Plate Used for Burners of Heat Storage

Cordierite Honeycomb Ceramic Plate Used for Burners of Heat Storage

Quantity:
  • Shanghai, China
  • 100, 000pieces/Month
  • L/C, T/T, Western Union
  • ICP
  • Ceramic
  • Plate Heat Exchanger
  • Regenerative Heat Exchanger
  • DXY
  • Wooden Box and Pallet or Packaged as Your Request
  • China
  • 6909190000
  • 133*93*13mm, 250*145*15mm, etc
  • Round, Square, etc
  • Round, Cinquefoil, Diamond, etc
  • 1.4mm, 1.6mm, 1.8mm, etc
  • Furnace, BBQ, Pizza Furnace, etc
  • Heater

Product Description

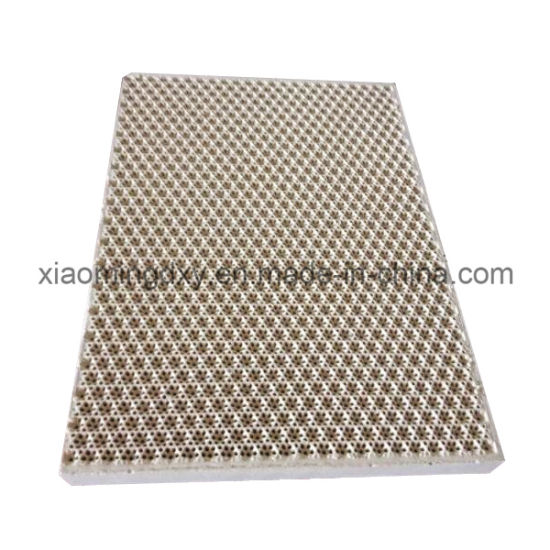

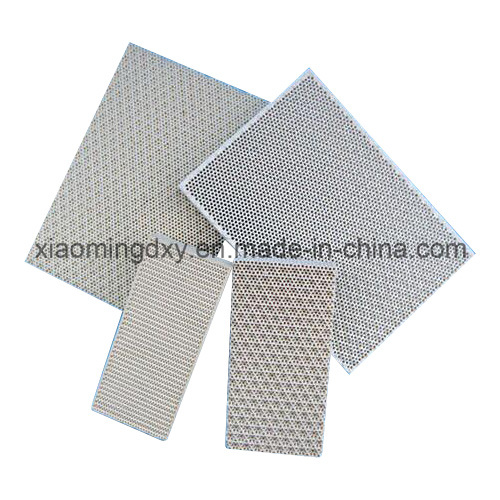

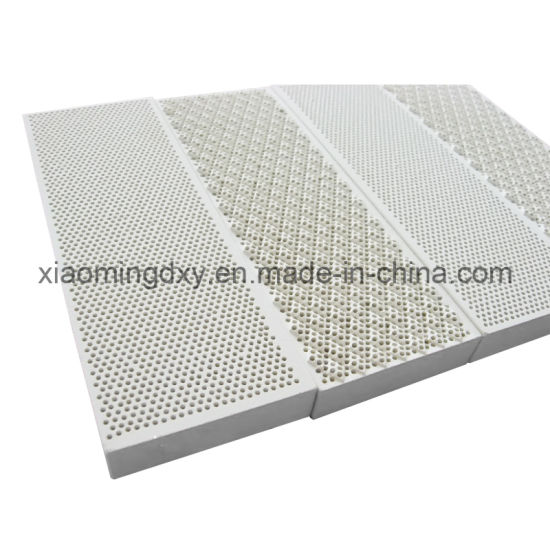

Cordierite Honeycomb Ceramic Plate Used for Burners of Heat Storage
Product features:
Natural gas and liquefied petroleum gas have achieved flameless catalytic combustion and release
heat on the ceramic board which is coated high quality combustion catalyst. In the course of
catalytic combustion. Combustible substance come into being free radical on the surface of
catalyst, Generating vibrational excited products. The heat energy is radiated high-Efficiently by means of infrared, Avoiding energy loss by visible light, Which assure the heat
energy is utilized to the top. On our catalytic combustion ceramic board, The high- Powered oxygen storage material ensures that the fuel gas is burned completely and the coke formation will never happen. Consequently, The energy is released fully and energy saving is apparent. The high selectivity of combustion catalyst restrain the side reaction of creating toxic substance, Therefore, Little or even no pollutants of NOxCO and CH are produced. Because of its low exhaust gas emission, Catalytic combustion is more environmentally friendly, Meanwhile, Its service life is far exceed the common ceramic board products.

Technical Data:
Item Material Water absorption Open Porosity Specific gravity
Index Cordierite 50.40% 61% 0.6-0.9Kg/cm3

Item Temperature softening Cooking Surface Temperature CO Release NOx Release
Index >1350 °C 1000-1200°C ≤0.006% ≤5ppm

Size:


Infrared ceramic plate for oven
Plum blossom pattern(mm)
200*140*13, 132*134*13, 94*165*13, 162*62*13

Diamond pattern (mm)
92*134*13, 75*134*13, 132*134*13, 54*172*14, 96*142*13, 78*137*13, 78*128*13



Infrared ceramic plate for heater

"8 " pattern (mm)
146*141*13,146*152*13,88*132*13, 118*145*13, 74*164*13, 92*132*13, 64*102*13, 89*92*13, 89*50*13

Diamond pattern (mm)

92*132*13, 92*127*13

Plum blossom pattern (mm)

74*164*13, 72*142*13
