Ceramic Products Infrared Ceramic Plate for Burner

Quantity:
  • 100, 000pieces/Month
  • Wooden Box and Pallet or Packaged as Your Request
  • L/C, T/T, Western Union
  • ICP
  • Heater
  • Plate Heat Exchanger
  • DXY
  • China
  • 133*93*13mm, 250*145*15mm, etc
  • Round, Square, etc
  • Round, Cinquefoil, Diamond, etc
  • 1.4mm, 1.6mm, 1.8mm, etc
  • Regenerative Heat Exchanger
  • Ceramic

Product Description

Infrared Honeycomb Ceramic Plate for Burners

Ceramic Products Infrared Ceramic Plate for Burner
Infrared honeycomb ceramic plate used in combustion oven, using modern advanced science and technology and selecting high-purity and high-quality cordierite. They have the advantages of high heat efficiency and low energy consuming, low pollution, economical and practical, easy installing, high ventilative rate and strong heat radiation, etc. Compared with the electrical drying stove and common gas-fired combustion stove,

Infrared ceramic plate has low dilatability and excellent heat proof wallop. It can be widely application to gas heating appliance, BBQ stove and gas cooker and etc. It has the characters of improve the efficiency of heat exchange, radiation gas heaters should give out very little convection heat, and the wave length of radiation has to be in the infrared range.
We can produce round, square and sector of infrared ceramic plate.

Size of square: Length of not more than 200 mm, width of not more than 140 mm.
Size of round: Diameter from 50 mm-140 mm
Thickness from 8 mm to 15 mm.
Hole Diameter from 1.1 mm-1.8 mm.
Holes Interval from 1.649 mm-2.086 mm.

Advantages as follows:
Outstanding Strength
Uniform radiant burning
Excellent thermal shock resistance
Save up to 30~50% energy cost
Burn without flame, high burning efficiency, low noise
Reduce the harmful gas such as CO, NOx, etc more than 90%

Barbecues Gyro Cookers
Broilers Pizza Ovens
Convection Ovens Pressure Fryers
Deep Fat Fryers Process
Evaporators Ranges
Gas Ovens Rotisserie Ovens
Griddles Space Heaters
Greenhouse CO2 Sear Cookers

Item Index Specifications
Material Cordierite We can provide you
the product by you desire.
Water absorption 50.4%
Open Porosity 61%
Specific gravity 0.9-1.10Kg/cm3
Thermal expansion coeffecient 1.5-3(×10-6K-1)
Temperature softening >1280
Cooking Surface Temperature 1000-1200
CO Release ≤0.006%
NOx Release ≤5ppm

Type SIZE(lengh XXwidth mm) HOLE QUANTITY HOLE SHAPE HOLE SIZE(mm)
1 100X150 24X36 SQUARE 3
2 150X100 35X20 HEXAGON 3.6
3 150X100 30X23 SQUARE 4
4 150X100 23X13 HEXAGON 6
5 150X100 36X24 SQUARE 3
6 150X100 13X10 HEXAGON 9
7 100X100 22X25 HEXAGON 3.6
8 100X100 8X10 HEXAGON 9
9 100X100 13X15 HEXAGON 6
10 100X100 6X7 HEXAGON 12
11 100X100 18X18 HEXAGON 3.6
12 100X100 19X19 SQUARE 3.6
13 250X250 46X53 ROUND 4.1
14 250X200 53X37 ROUND 4.5
15 50X50 28X28 SQUARE 1.3
16 126X94.5 10X9 HEXAGON 9
17 150X150 43X43 SQUARE 2.6
18 150X150 25X25 SQUARE 4.8
19 150X150 4X4 HEXAGON 34
20 153.8X153.8 100X100 SQUARE 1
21 120X120 38X38 SQUARE 2.5

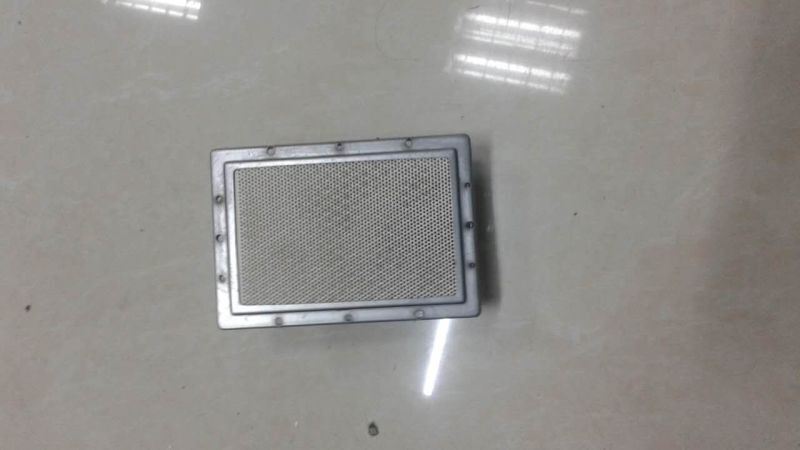

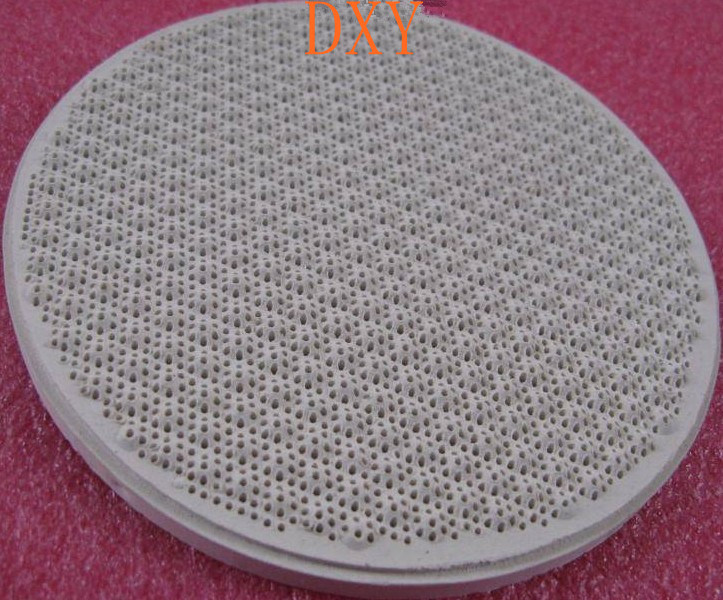

Ceramic Products Infrared Ceramic Plate for Burner

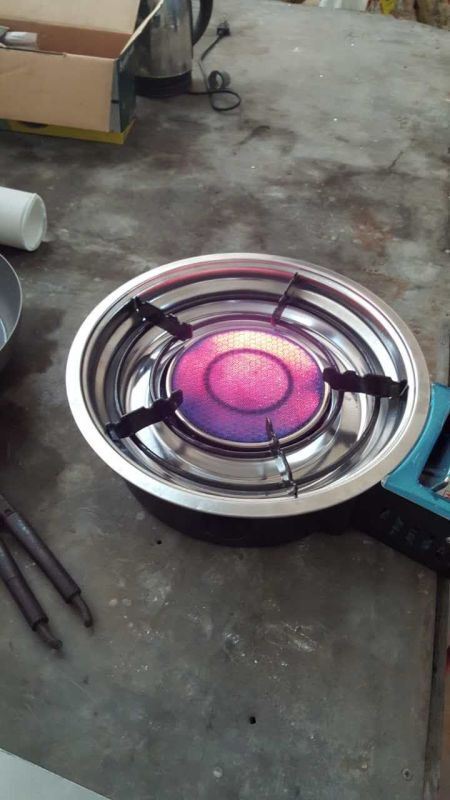

Ceramic Products Infrared Ceramic Plate for Burner
