Ceramic Honeycomb Catalytic Converter Honeycomb Ceramic Substrate for Car/Motorcycle
You are here: Home » Products » Honeycomb Ceramic Substrate » Ceramic Honeycomb Catalytic Converter Honeycomb Ceramic Substrate for Car/Motorcycle

Ceramic Honeycomb Catalytic Converter Honeycomb Ceramic Substrate for Car/Motorcycle

Quantity:
sharethis sharing button
  • Shanghai, China

  • 100, 000pieces/Month

  • L/C, T/T, Western Union, Paypal

  • CHS

  • 100-400cpsi

  • 144*150mm, 150*100mm etc

  • as Catalyst Used in Automobile/Motorcycle

  • DXY

  • Wooden Box with Pallet or as Customers′need

  • China

  • 6909190000

  • Ceramic

  • Euro IV

  • ISO9001, TS16949

  • Catalytic Converter

  • White

  • Cordierite

Product Description

Used as catalytic converters of gasoline engines, honeycomb ceramic catalyst substrates are coated by catalyst. Meanwhile, we improve the specific surface areas and cut down the heat capacity to increase the catalytic function.

Ceramic Honeycomb Catalytic Converter Honeycomb Ceramic Substrate for Car/Motorcycle

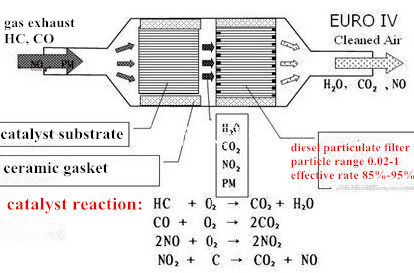

When the noxious emissions pass through, HC, CO and NOX will be converted into harmless components. Automobile exhaust gases are conventionally purified with a catalyst supported on a ceramic substrate body able to withstand high temperatures. Honeycomb Ceramic Substrate is made of cordierite, and it is used for car catalytic converter. The cells density can be 100cpsi, 300cpsi, 400cpsi or 600cpsi. It will be round, oval or racetrack. We can supply both ceramic element coated with noble metals of Pt, Pd, Rh and ceramic element without noble metals.

Honeycomb Ceramic Substrate Specifications:
*TS16949 certified
*Thin wall thickness
*Better air flow
*Less back pressure

Ceramic Honeycomb Catalytic Converter Honeycomb Ceramic Substrate for Car/Motorcycle

Racetrack Rotundity
Φ169±x85.7±1x127±1 R30 Φ150x100
Φ148±1x82±1x127±1 R38 Φ150x75
Φ144.8±1x81.3±1x76.2±1 R37 Φ125x130
Φ144.8±1x81.3±1x75±1 R37 Φ144x152
Φ127±1x61±1x120.7±1 R23 Φ118x152
Φ145x80x80 Φ106x150
Φ93±1x61±1x90±1 R30 Φ106x100
Φ120.6±1x80±1x50.8±1 R39.6 Φ103x100
Φ120x80x75 Φ101.6x100
Φ147±1x95±1x70±1 R36.6 Φ100x100
Φ100x100x75 Φ93x130
Φ50x50x25 Φ93x49.85
