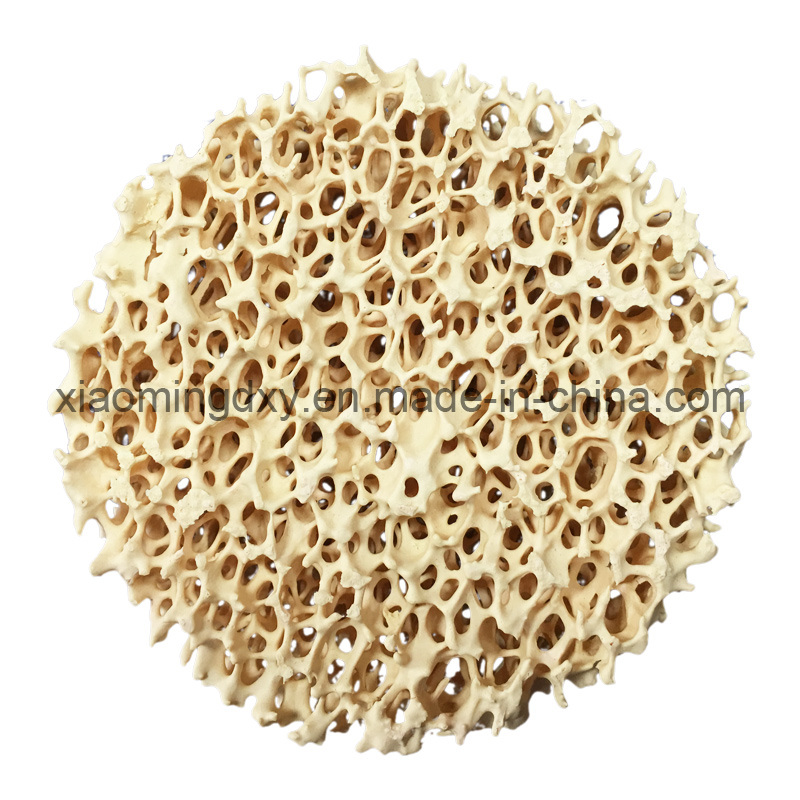

Zirconia Ceramic Foam Filter/Zro2 Ceramic Foam Filter/Zirconium Oxide Ceramic Foam Filter
You are here: Home » Products » Foam Ceramic Filter » Zirconia Ceramic Foam Filiter » Zirconia Ceramic Foam Filter/Zro2 Ceramic Foam Filter/Zirconium Oxide Ceramic Foam Filter

Zirconia Ceramic Foam Filter/Zro2 Ceramic Foam Filter/Zirconium Oxide Ceramic Foam Filter

Quantity:
  • Shanghai, China
  • 100, 000pieces/Month
  • L/C, T/T, D/P, Western Union, Paypal
  • CFZ
  • 10~60
  • Zirconia Casting
  • DXY
  • Wooden Box/Carton Box with Pallet
  • 50*50*12mm, 100*100*15mm, etc
  • China
  • 1580< Refractoriness< 1770
  • Long Time Materials
  • Refractory Material
  • Round, Square,etc
  • Zirconia
  • 70~80

Product Description

Zirconia cermic foam filter is applied to purge solution of carbon steel, steel alloy and stainless steel, it can endure require of technology of steel and get rid of foreign matter and materials of corroded model. Zirconia ceramic foam filter can also drop turulent and reduce twice oxided foreign matter. Zirconia ceramic foam filter is designed for the filtration of molten steel, alloy steel, and especially for high quality steel alloys casting temperature up to 1700 ° C, which have high porosity (76%-82%), high thremal shock resistance and large specific surface.

Technical Data:
Pore size (PPi): 10-60
Porosity (%): 80-90
Working temperature(° C): 1720
Bending Strength (Mpa): 0.8-1.0
Compression Strength (Mpa): 1.0-1.2
Thermal Shock Resistance(times/1100° C): 6

Advantages:
Ceramic foam filters help to enhanced quality of castings and reduce cost
*Special 3D structure to reduce turbulence of flowing molten metal
*Reduce defective rate of castings
*Improved mechanical properties of castings
*Improved precision of dimensions and shapes of castings
*Reduced costs of machining operations
*Simplify pouring systems and increase utilization ratio of mold
Color Yellow PPI 10-60
Porosity (%) 70~80 Filtration capacity
(kg/cm²)
≥2.5
Bulk density (g/cm³) 0.9~1.1 Temperature (celsius degree) ≤1700
Compressive strength (Mpa) ≥1.75 Heat shock Excellent
Materials Zirconia
Working Temp. ( ° C) ≤ 1700
Color Yellow
Pore Size ( PPI ) 10
Porosity ( % ) 76~82
Compression Strength ( MPa ) ≥ 2.5
Bulk Density ( g/cm 3 ) 0.7~1.1
Thermal Shock Resistance Excellent
Application Carbon steel low alloy steel
Dimensions mm Flow rate(kg/s) Total capacity
Carbon steel High-alloy steel kg
40 × 40 × 20 2 2.5 30
50 × 50 × 22 3 4 50
55 × 55 × 22 4 5 60
Φ 50 × 22 2.5 3 40
Φ 60 × 25 3.5 4.5 70
Φ 70 × 25 4.5 6 95
Φ 75 × 25 5 6.5 110
Φ 80 × 25 6 7.5 125
Φ 90 × 25 8 9.5 160
Φ 100 × 25 9.5 12 190
Φ 120 × 25 11 14 220
Φ 150 × 30 12.5 15 330

Zirconia Ceramic Foam Filter/Zro2 Ceramic Foam Filter/Zirconium Oxide Ceramic Foam Filter
