Vehicle/Auto Used Ceramic Honeycomb Catalyst Substrate
You are here: Home » Products » Honeycomb Catalyst Substrate » Ceramic Honeycomb Substrate » Vehicle/Auto Used Ceramic Honeycomb Catalyst Substrate


Vehicle/Auto Used Ceramic Honeycomb Catalyst Substrate

sharethis sharing button
  • Shanghai, China

  • 100, 000pieces/Month

  • L/C, T/T, Western Union

  • CHS

  • 100-600cpsi

  • DXY

  • Wooden Box and Pallet/Packed as Customers′ Need

  • China

  • Ceramic

  • Euro IV

  • ISO9001

  • Catalytic Converter

  • Cordierite, Alumina, Corundum, etc

  • Diameter<120mm/Diameter<200mm, etc

Product Description

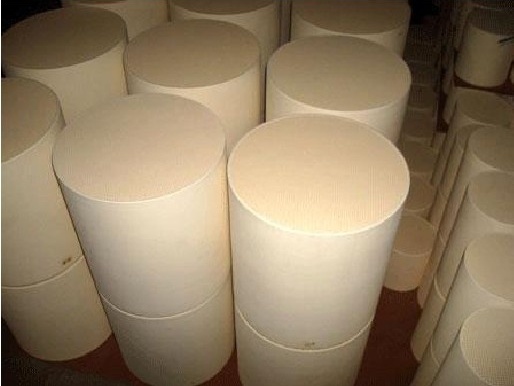

Vehicle/Auto Used Ceramic Honeycomb Catalyst Substrate

Honeycomb Ceramic Substrate
for car/vehicle/motorcycle Description:
Honeycomb ceramic is new developed ceramic part. Because of it's features of corrosion resistances, large specific surface area, small heat resistance, good thermal conductivity and excellent thermal-shock resistance, fast heat exchanging and energy saving. Ceramic substrate 20/40 process bauxite with high content finely and make it into small and round grains with different grain diameters like 0.45mm-0.90mm, 0.09mm-0.224mm with chemical agents and transformation agents. Finally fire them under high temperature. In this way, high strength fracturing propping agent is finished. It has high strength, low breaking rate, good sphericity, etc. under closing pressure. It is the best product for stratum fracturing transformation of oil and gas field at present.

Used as catalytic converters of gasoline engines, the honeycomb ceramic catalyst substrates are coated by catalyst. At the same time , we improve the specific surface areas and cut down the heat capacity to increase the catalytic function. When the noxious emissions pass through, HC, CO and NOX will be converted into harmless components. Automobile exhaust gases are conventionally purified with a catalyst supported on a ceramic substrate body able to withstand high temperatures.

Honeycomb Ceramic Specifications
1. High working temperature.
2. Large specifc surface area.
3.Good thermal conductivity.
4. All shapes avalible.

Channel density
Dimensin (mm) Litre
0 sells per square inch Round shape φ150*100 1.767
φ144*152.4 2.482
φ118*152.4 1.667
φ115.4*152.4 1.594
φ106*100.4 0.886
φ103*100 0.833
φ101.6*152.4 1.236
φ100*100 0.786
φ93*152.4 1.035
φ83*152.4 0.825
φ80*100 0.503
φ76*50 0.227
φ41*25 0.033
Racetrack ellipse P169*80.8*115 1.41
P148*84*152.4 1.66
P144.8*81.3*127 1.32
P127*63.5*152.4 1.10
P93*61*91 0.44
P120.6*80*152.4 1.26
P143*98*152.4 1.82
P147*95*152.4 1.83
P177.8*114.3*170 2.98
abnormity T144*84*75 0.713
T114*105*75 1.081
T120.2*108.2*75 0.766
T112.2*92*115 0.932
T119.5*99.5*115 1.074
T122.3*104.4*80 0.802
(mm)section size (mm)max length Litre
300 sells per square inch Round shape 144.0000 200.0000 3.258
150.0000 200.0000 3.535
190.0000 200.0000 5.671
220.0000 200.0000 7.604
240.0000 200.0000 9.049
600 cells per square inch 93.0000 152.4000 1.035
101.6000 152.4000 1.236
118.0000 152.4000 1.667


More >>
