Metallic Honeycomb Substrate for Vehicle Catalytic Converters
You are here: Home » Products » Honeycomb Catalyst Substrate » Metal Honeycomb Substrate » Metallic Honeycomb Substrate for Vehicle Catalytic Converters

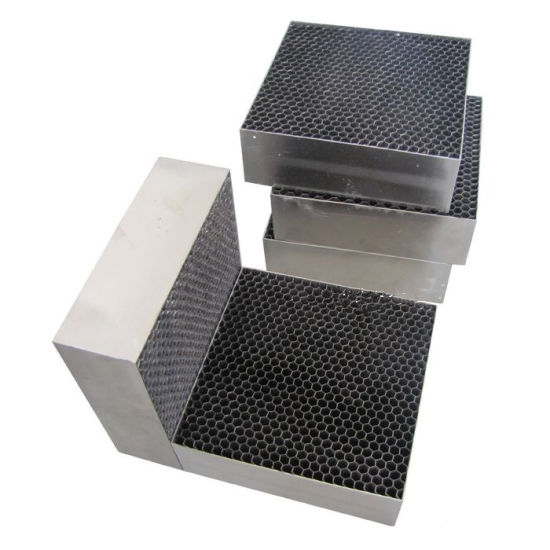

Metallic Honeycomb Substrate for Vehicle Catalytic Converters

Quantity:
  • Shanghai, China
  • 100, 000pieces/Month
  • L/C, T/T, Western Union
  • MHS
  • The Brake Noise
  • Catalytic Converter
  • Europe
  • SS304, SS316, Fe-Cr-Al Alloy
  • as Catalyst Used in Automobile/Motorcycle
  • 100-600cpsi
  • 0.04-0.1
  • 10-250
  • 1100°c
  • 1250°c
  • DXY
  • Wooden Box and Pallet/Packed as Customers′ Need
  • all size
  • China
  • 84213990
  • Catalytic Converter
  • Steel
  • Euro V
  • ISO9001, TS16949
  • The Noise of Engine
  • Mechanical Noise

Product Description

Catalyst Honeycomb Metal Subsrate:
Metal Honeycomb Substrate Catalyst is made of catalyst platinum and palladium, these three precious metals to rhodium. When carbon monoxide, hydrocarbon and nitrogen gas through the catalyst, the activity will improve under high temperature. As results, carbon monoxide is oxidized carbon dioxide, hydrocarbons into water and carbon dioxide and nitrogen oxides reduction of nitrogen.

The material of outside shell is SUS441 and 444, the foil material of inside is OCr21Al6, and the thickness is 0. Imm. Compared to ceramic honeycomb substrate, metal honeycomb substrate has good heat conduction advantage. It can be made of concentric round metal substrate, also can be made of duboule's metal substrate.

Catalyst Carrier Honeycomb Metal Substrate:
*Can supply with Europe. II, III, IV, V Standard product
*Can supply samples for your testing
*Can supply SGS test or other test as you need
*Can supply various of type as you need
*Can supply top quality and competitive metal honeycomb substrate
Metallic Honeycomb Substrate for Vehicle Catalytic Converters
Shape Shell size(mm) Core size(mm) Cell density (CPSI)
Rotundity Φ 30×22 Φ 28×20 100/200/300/400
Rotundity Φ 35×20 Φ 33×20 100/200/300/400
Rotundity Φ 35×30 Φ 33×30 100/200/300/400
Rotundity Φ 35×40 Φ 33×40 100/200/300/400
Rotundity Φ 35×50 Φ 33×50 100/200/300/400
Rotundity Φ 35×60 Φ 33×60 100/200/300/400
Rotundity Φ35 × 70/100/130 Φ33 × 60/90/120 100/200/300/400
Rotundity Φ42 × 70/100/130 Φ40 × 60/90/120 100/200/300/400
Rotundity Φ45 × 70/100/130 Φ43 × 60/90/120 100/200/300/400
Rotundity Φ63,5 × 85/100/130 Φ60,5 × 74,5/90/120 200/300/400
Rotundity Φ73 × 70/100/130 L Φ70 × 60/90/120 200/300/400
Rotundity Φ93 × 70/100/130 Φ90 × 60/90/120 200/300/400
Rotundity Φ100,3 × 100/130 Φ98,3 × 90/120 600
Rotundity Φ144 × 150/152,4 Φ142 × 140/142,4 200/300/400
Rotundity Φ190 × 200 Φ188 × 190 200/300/400
Rotundity Φ420 × 100/130 Φ416 × 90/120 300/400
Race track 123×63×85 120×60×75 200/300
Race track 123×63×100 120×60×90 200/300
Race track 78,5×52×104 76,5×50×90 200/300
