Metallic Honeycomb Ceramic Substrate (For Automobile / Vehicle end-gas)
You are here: Home » Products » Honeycomb Catalyst Substrate » Metal Honeycomb Substrate » Metallic Honeycomb Ceramic Substrate (For Automobile / Vehicle end-gas)

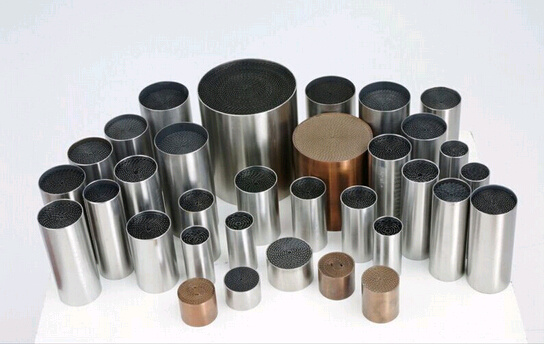

Metallic Honeycomb Ceramic Substrate (For Automobile / Vehicle end-gas)

  • Shanghai, China
  • 100, 000pieces/Month
  • L/C, T/T, Western Union
  • MHS
  • The Brake Noise
  • Catalytic Converter
  • North America
  • SS304, SS316
  • as Catalyst Used in Automobile/Motorcycle
  • 100-600cpsi
  • 0.04-0.1
  • 10-250
  • 1100°c
  • 1250°c
  • 14.7
  • DXY
  • Wooden Box and Pallet/Packed as Customers′ Need
  • all size
  • China
  • 84213930
  • Catalytic Converter
  • Steel
  • Euro V
  • ISO9001, TS16949
  • The Noise of Engine
  • Mechanical Noise

Product Description

We are manufacturer of products for automotive exhaust system components.
Main products: Honeycomb metal catalytic and ceramic catalytic for auto, motorcycle (special Harley motor), Universal engine exhaust system, including gasoline engine and diesel engine.

Motorcycle catalyst converter
Met European II emission standard
Motor damnify< 3%
Passed Wearing test of 15000KM
Passing through the strict test of endurance, our motorcycle catalyst converter has met European emission standard, and the economical sloss (loss)of motorcycle's power could be less than 3%. Its catalyst carrier includes: Metallic catalyst carrier and honeycomb ceramic catalyst carrier. We could customize the products according to clients's different requirement (clients different requirements).
Test result (Given by Quality Supervision and Inspection Station of Industrial Ceramic)

To make the product with tri-angle, round and square hole as well as other specification in accordance with customer's demand.
*Adopt the metallic and ceramic carrier as motorcycle catalyst.
*Simulation system of the computer to design meticulously, it is accurate to match. (Simulation system of the computer is designed meticulously and matched accurately)
*Remarkable to purify, are equivalent Europe II Emission standard (Remarkable purify effect which are equivalent to Europe II Emission standard)
*Motor damnify< 3%
*Passed Wearing test of 15000KM

*Low thermal expansion
*High surface area
*Long-term durability performance
*Low pressure drop
*Good thermal shock resistance
*Combined with the EGR systems to help different vehicles to satisfy emission standard
*Low light-off temperature
*Excellent adhesion between wash-coat and susbstrate with netty structure
Metallic Honeycomb Ceramic Substrate (For Automobile / Vehicle end-gas)
Dia (mm) Metal honeycomb Catalyst ( Dia*Lenth* Inner hight* cpsi ) mm
Dia 100 100*100*90* 600
100*50*40* 300
101.6*100*80* 100
Dia 20-30 20*15*15*300
30*100*100/ 200
30*20*200/ 300/300S/400

Test Result for EU- III Emission Result, g/km
EU- III Standard 0.8 2 0.15
Displacement Item
4 Stroke 150CC Scooter Original Emission 1.8 10.68 0.24
With Two Catalytics 0.19 1.74 0.09
4 Stroke 125CC Scooter Original Emission 2.72 7.36 0.7
With Two Catalytics 0.14 0.94 0.13
4 Stroke 110CC Cub Original Emission 0.43 2.47 0.12
With One Catalytic ( without SAI ) 0.21 1.16 0.04
4 Stroke 150CC EFI Engine With One Catalytic ( without SAI ) 0.23 1.08 0.1
4 Stroke 300CC EFI Engine With One Catalytic ( without SAI ) 0.19 1.4 0.11
