Metal Honeycomb Substrate for Catalytic Converter
You are here: Home » Products » Honeycomb Metal Substrate » Metal Honeycomb Substrate for Catalytic Converter

Metal Honeycomb Substrate for Catalytic Converter

Quantity:
sharethis sharing button
  • Shanghai, China

  • 100, 000pieces/Month

  • L/C, T/T, Western Union

  • MHS

  • The Brake Noise

  • Catalytic Converter

  • Southeast Asia

  • SS304, SS316

  • as Catalyst Used in Automobile/Motorcycle

  • 100-600cpsi

  • 0.04-0.1

  • 10-250

  • 1100°c

  • 1250°c

  • DXY

  • Wooden Box and Pallet/Packed as Customers′ Need

  • all size

  • China

  • 84213990

  • Catalytic Converter

  • Steel

  • Euro V

  • ISO9001, TS16949

  • The Noise of Engine

  • Mechanical Noise

Product Description

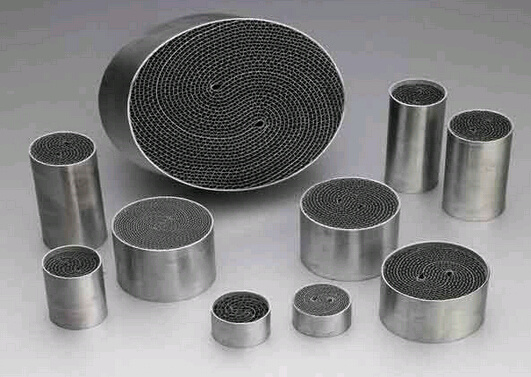

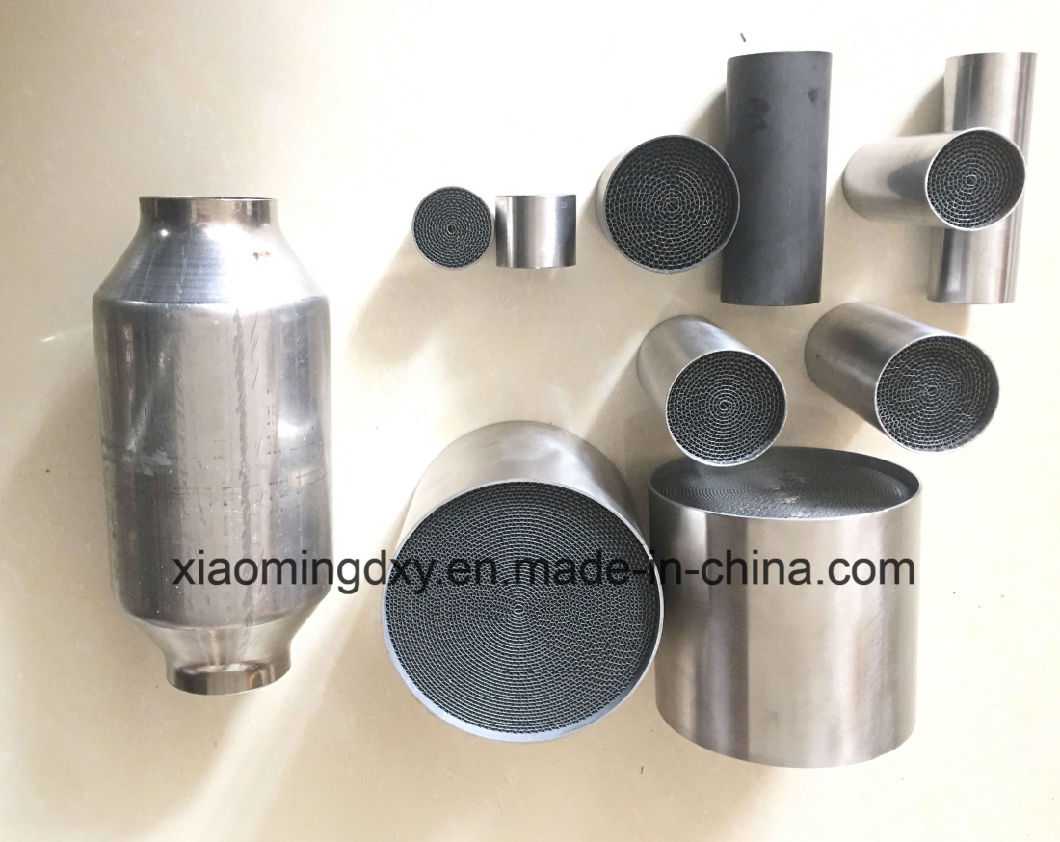

Honeycomb Metal Substrate has the advantages of fast burning, small volume, high mechanical strength, prominent heat-resistance, etc. It is widely used in exhaust gas purification, especially for motorbike. We can make 100CPSI, 200CPSI, 300CPSI, 400CPSI and 600CPSI honeycomb metallic substrate in various shapes, such as round, oval, racetrack and other customized shapes. We constantly improve the quality and service, our products get high reputation from customers.

We mainly produce Metal Catalytics and Ceramic Catalytics for Auto and Motorcycle exhaust system:
Precious Metal: PT/Pd/Rh--Ducati/Harley
Wall Material: Cordierite/ Stainless
Coating Material: Al2O3 and rare earth oxygen storage materials

Usage: For exhaust system of auto engine, like Honda, Suzuki, Toyato, etc. And Diesel engine, like farm machinery and construction machinery: Tiller, Harvester, Rice transplanter, Planter, Rice mill, Weeder, Thresher, hoisting machinery, excavator, Reinforced concrete machinery.

Durability: Ceramic catalyst: 80, 000 KM/ Metal catalyst: 100, 000 KM

Specification: Cylinder shape, "T" series (one hole)/ "S" series (Two holes)/ three-holes

Size: Dia110mm~155mm, Hight: 40mm~150mm, Cell: 100~600cpsi
Like: Dia110*110(Inner hight 80)mm/ 200cpsi
Dia120*130(Inner hight120)mm/ 400cpsi

Advantages:
*High temperature resistant
*Excellent and stable double-coating technology
*Excellent resistance to sulfur poisoning properties
*Meet the Standards European II ~ Europe V emission standard, EPA, CARB standard
*Corrosion resistant
*High durability performance
*Can be specialized designed for the customers various vehicle type
Substrate
Mantle 430/436/441/444
Honeycomb Fe-Cr-Al
Brazing Material BNi5
Metal Honeycomb Substrate for Catalytic Converter
Shape Shell size(mm) Core size(mm) Cell density (CPSI)
Rotundity Φ 30 × 22 Φ 28 × 20 100/200/300/400
Rotundity Φ 35 × 20 Φ 33 × 20 100/200/300/400
Rotundity Φ 35 × 30 Φ 33 × 30 100/200/300/400
Rotundity Φ 35 × 40 Φ 33 × 40 100/200/300/400
Rotundity Φ 35 × 50 Φ 33 × 50 100/200/300/400
Rotundity Φ 35 × 60 Φ 33 × 60 100/200/300/400
Rotundity Φ 35 × 70/100/130 Φ 33 × 60/90/120 100/200/300/400
Rotundity Φ 42 × 70/100/130 Φ 40 × 60/90/120 100/200/300/400
Rotundity Φ 45 × 70/100/130 Φ 43 × 60/90/120 100/200/300/400
Rotundity Φ 63,5 × 85/100/130 Φ 60,5 × 74,5/90/120 200/300/400
Rotundity Φ 73 × 70/100/130 L Φ 70 × 60/90/120 200/300/400
Rotundity Φ 93 × 70/100/130 Φ 90 × 60/90/120 200/300/400
Rotundity Φ 100,3 × 100/130 Φ 98,3 × 90/120 600
Rotundity Φ 144 × 150/152,4 Φ 142 × 140/142,4 200/300/400
Rotundity Φ 190 × 200 Φ 188 × 190 200/300/400
Rotundity Φ 420 × 100/130 Φ 416 × 90/120 300/400
Race track 123 × 63 × 85 120 × 60 × 75 200/300
Race track 123 × 63 × 100 120 × 60 × 90 200/300
Race track 78,5 × 52 × 104 76,5 × 50 × 90 200/300
